1.MANUAL MEASUREMENT FUNCTIONS B-63874EN-1/02

- 40 -

1.4.3 OUTSIDE DIAMETER MEASUREMENT

Measurement procedure

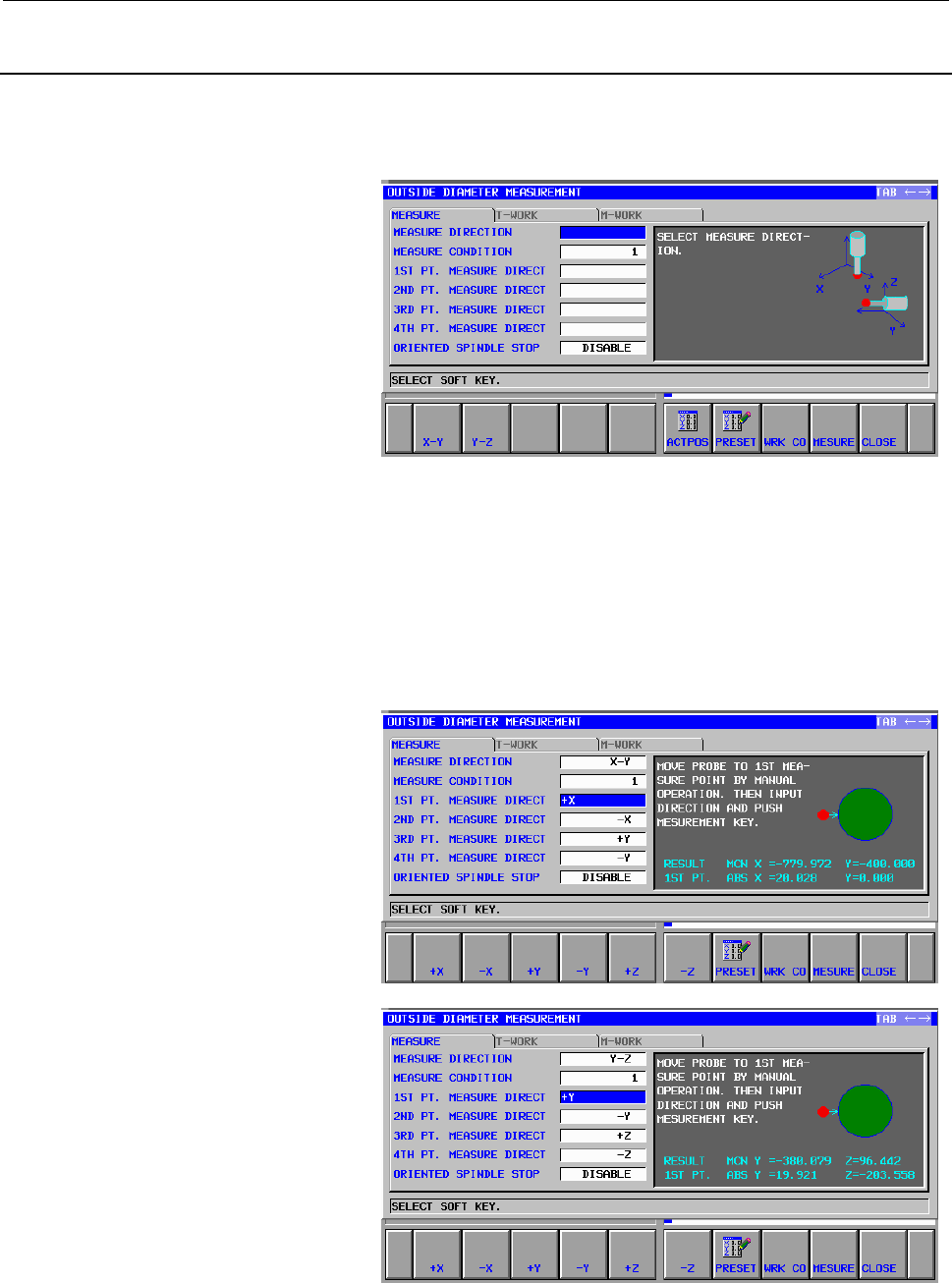

<1> Select "OUTSIDE DIAMETER MEASUREMENT" from the

centering function menu select screen.

<2> By moving the probe manually, get it close to the measurement

point so that measurement is possible with the movement of the

probe along the axis in one direction.

<3> In "MEASURE DIRECTION," select the measurement plane

from the [X-Y] and [Y-Z] soft keys.

The subsequent input item name, input value, and measurement

result axis address vary depending on what plane was selected.

(If [X-Y] is selected)

(If [Y-Z] is selected)

<4> Set up "MEASURE CONDITION."
