2.2.2 Probe Length Measurement

When the probe is oriented in the Z-axis direction, a probe length

measurement is made.

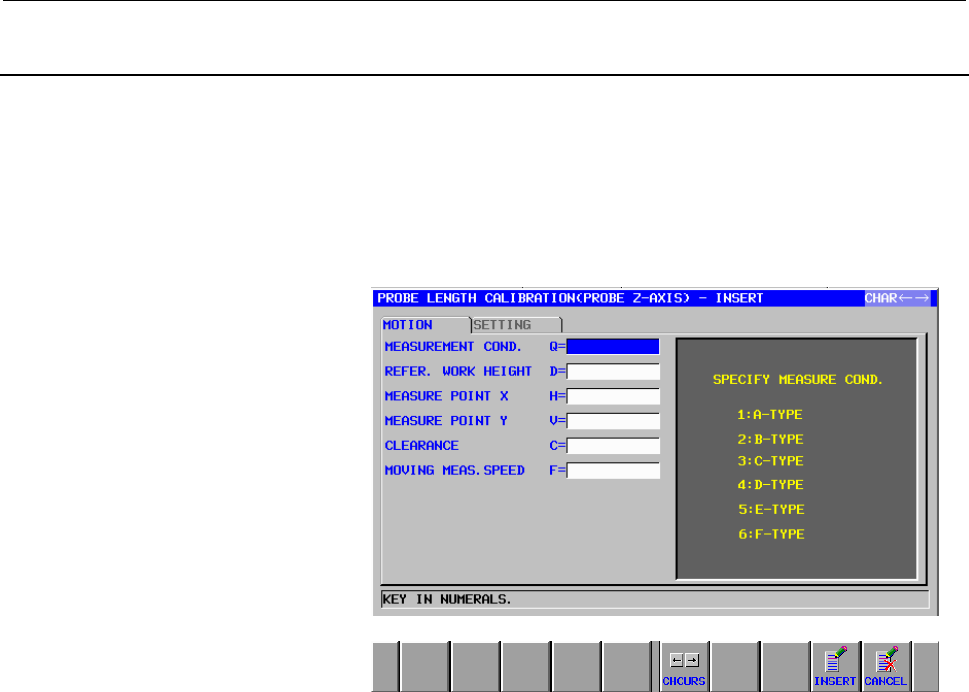

Measurement motion screen

When you select "PROBE LENGTH CALIBRATION (PROBE Z-

AXIS)" on the calibration menu selection screen of the measurement

cycle, the following screen appears:

- MEASUREMENT COND.

Specify a measurement condition group number to be referenced at

the time of measurement.

Enter a numeric value.

- REFER. WORK HEIGHT

Enter the height of a workpiece used as the reference for contacting

the probe.

Enter a numeric value.

- MEASURE POINT X, Y

Enter the X and Y coordinates of a point to be measured.

Enter numeric values.

- CLEARANCE

Enter the distance from the measurement start point to the surface of

the reference workpiece.

Enter a numeric value.

- MOVING MEAS. SPEED

Enter a feedrate at measurement.

Enter a numeric value.
