2.MEASUREMENT CYCLE B-63874EN-1/02

- 220 -

2.8.4 Outside Diameter Measurement

When the probe is oriented in the X-axis direction, the center position

of the outside diameter of a circle is measured.

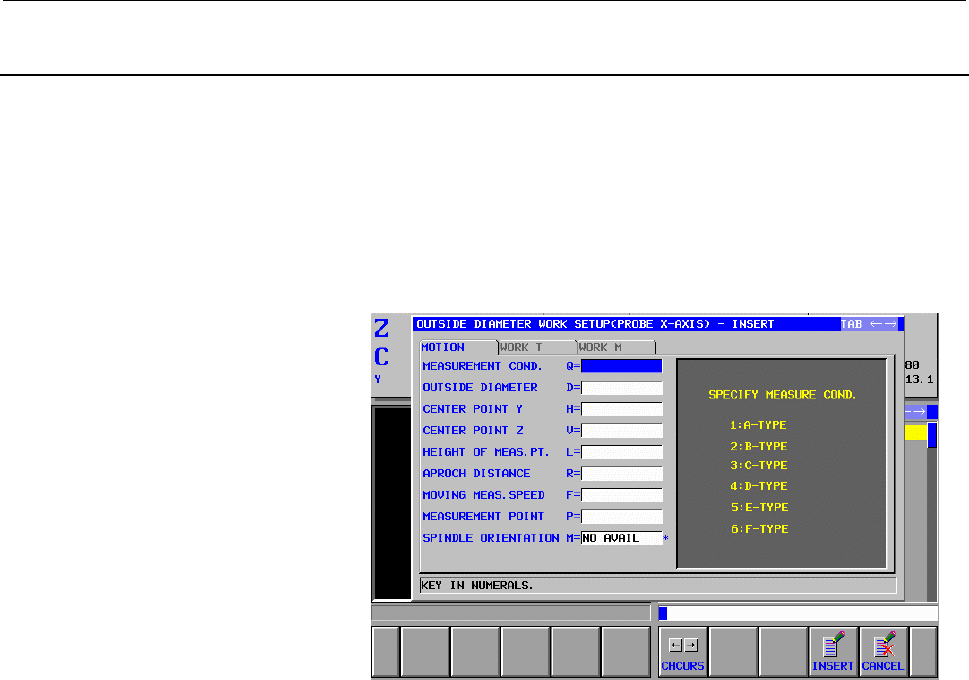

When you select "OUTSIDE DIAMETER WORK SETUP (PROBE

X-AXIS)" on the centering menu selection screen of the measurement

cycle, the following screen appears:

Measurement motion screen

- CENTER POINT Y, Z

Enter the correct center point coordinate Y and center point

coordinate Z of the circle.

Enter numeric values.

- HEIGHT OF MEAS. PT.

Enter the height of a measurement point in the X-axis direction.

Enter a numeric value.

The descriptions of the other items are the same as for "Outside

Diameter Measurement" of "WORK SET (PROBE Z-AXIS

DIRECTION)".
