FANUC MANUAL GUIDE i

(Series16i/18i/21i-MB/TB)

OPERATOR’S MANUAL

B-63874EN-1/02-3

Page

FANUC LTD.

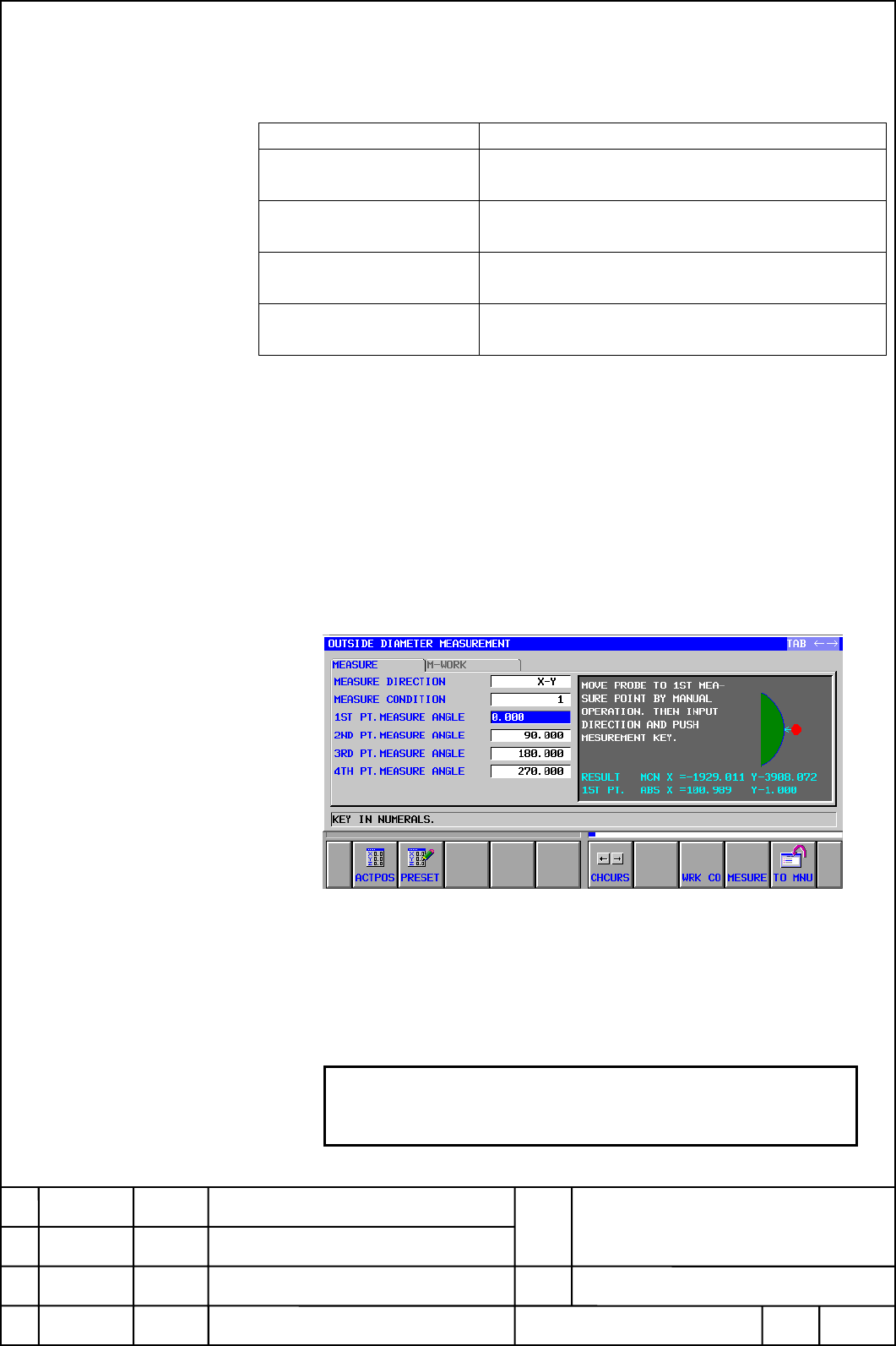

Default of measurement angles are displayed as follow.

Input Items amount

first point measurement

angle

0°

second point measurement

angle

90°

third point measurement

angle

180°

forth point measurement

angle

270°

<4> After moving a probe to near the 1st measurement point by manual

operation, place a cursor to “1

point of measurement angle” and press

[MESURE]soft key.

<5> After the first measurement, 2nd measurement operation begins after

the escape of return amount set to measurement condition.

<6> When a measurement is finished, the measured result is displayed to

information.

<7> Continuously operate the 2nd, 3rd, 4th point of measurement

When operating a 3-point measurement, it does not need to measure the

4th point.

<8> From next operation of measurement is the same as before.

Caution

When the parameter No,27220#4=0, or No 27222#7=0, a display

and measurement motion are the same as the version before.
