5.SUPPORTING TOOL MANAGEMENT B-63874EN-1/02

- 282 -

5.2 POST-MACHINING INSPECTION (MANUAL

MEASUREMENT)

When a workpiece measurement result is fed back to a tool offset

value, specifying one of the following items enables the measurement

result to be fed back to the tool offset value.

- Offset number

- Tool number and offset type

- Group number (tool type number) and offset type

5.2.1 Selecting the MEASURE Screen

<1> When the machine is in the manual mode, press the [MESURE]

soft key.

<2> Select the "MEASURE" tab.

<3> Select a post-machining inspection type.

5.2.2 Displays on the Screen

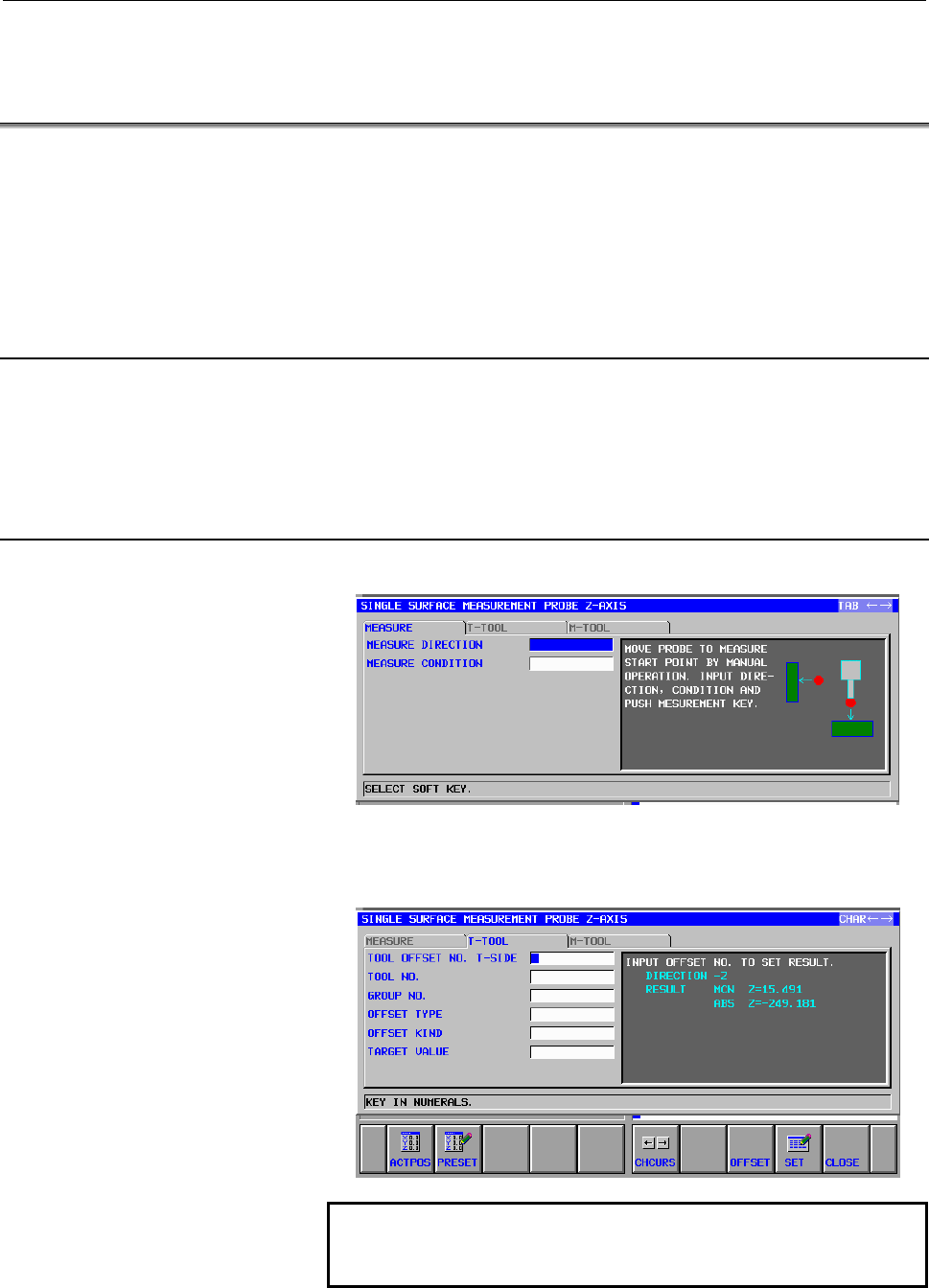

MEASURE screen

The function of this screen is the same as when tool management is

disabled.

Measurement result set screen (T-TOOL)

NOTE

With the CNC for a machining center, the “T-TOOL”

screen is not displayed.
