C.CUSTOMIZATION BY THE MACHINE TOOL BUILDER B-63874EN-1/02

- 306 -

<2> User program execution end signal GERS

When the user program ends with the M02 or M30 command,

the PMC program must set bit 7 (hereinafter referred to as

"GERS") of the R signal specified in parameter No. 12386 to 1.

GERS=1: End of user program execution

In response to the request above, the system software sets the

GST signal to 0.

After the GST signal is set to 0, the PMC program must switch

the mode from the MEMORY mode to the previous mode, then

set the GERS signal to 0.

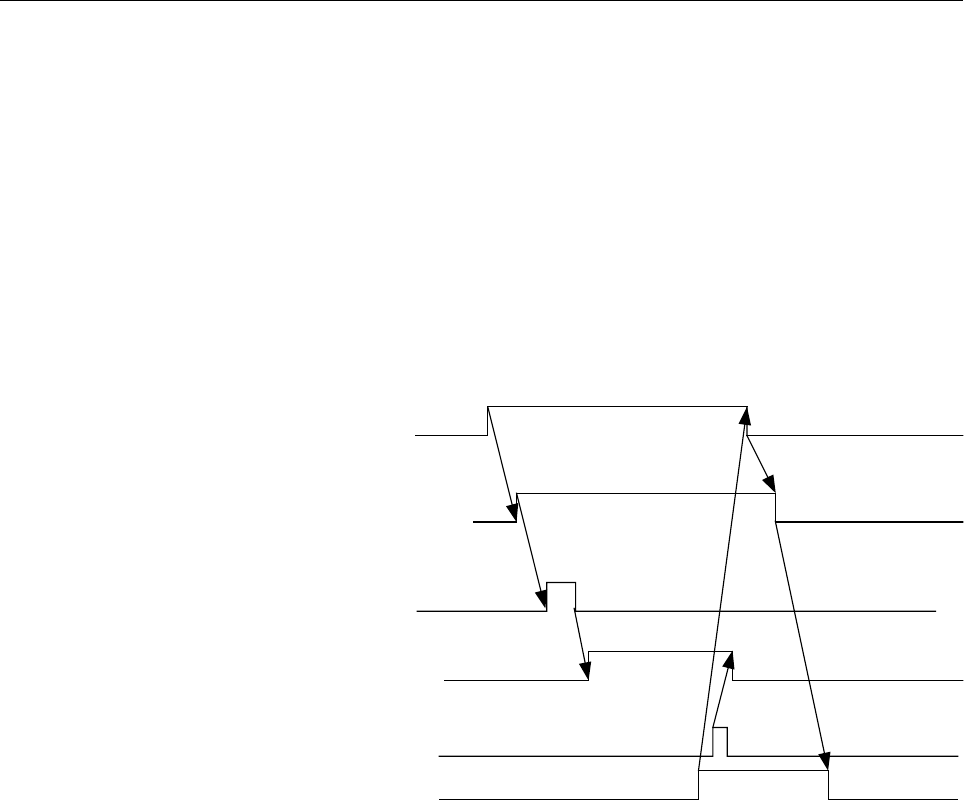

GST

(CNC->PMC)

MD1-3 : MEM mode

(PMC -> CNC)

STL

(CNC -> PMC)

Execution of playback machining

ERS

(PMC -> CNC)

M02, M30

GERS

(PMC -> CNC)

M02, M30
