B-63874EN-1/02 3.MEASUREMENT SETTING SCREENS

- 255 -

3.1.1 SETTING OF MEASURE CONDITON

This procedure lets you set up measurement conditions.

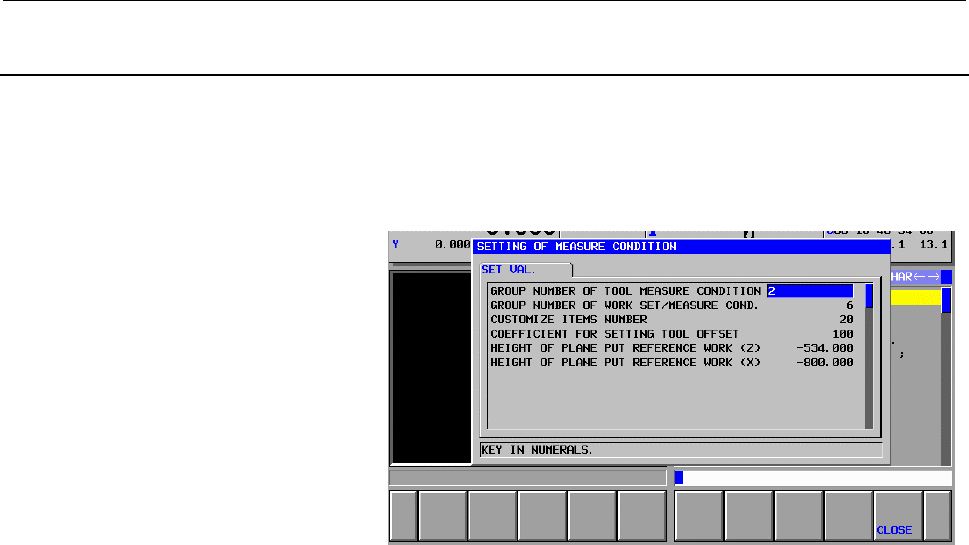

<1> On the measurement condition entry screen select menu, place

the cursor on "SETTING," and press [OK]. The following screen

appears.

Input value setting range for each item

Specify each item, using a number.

The data entered on this screen is assigned to macro variables.

"HEIGHT OF PLANE PUT REFERENCE WORK (Z)/(X)" is

referenced for "PROBE LENGTH CALIBRATION". Enter the

machine coordinates of the plane (such as the height of a table top)

where a reference workpiece is to be placed.
