1.MANUAL MEASUREMENT FUNCTIONS B-63874EN-1/02

- 24 -

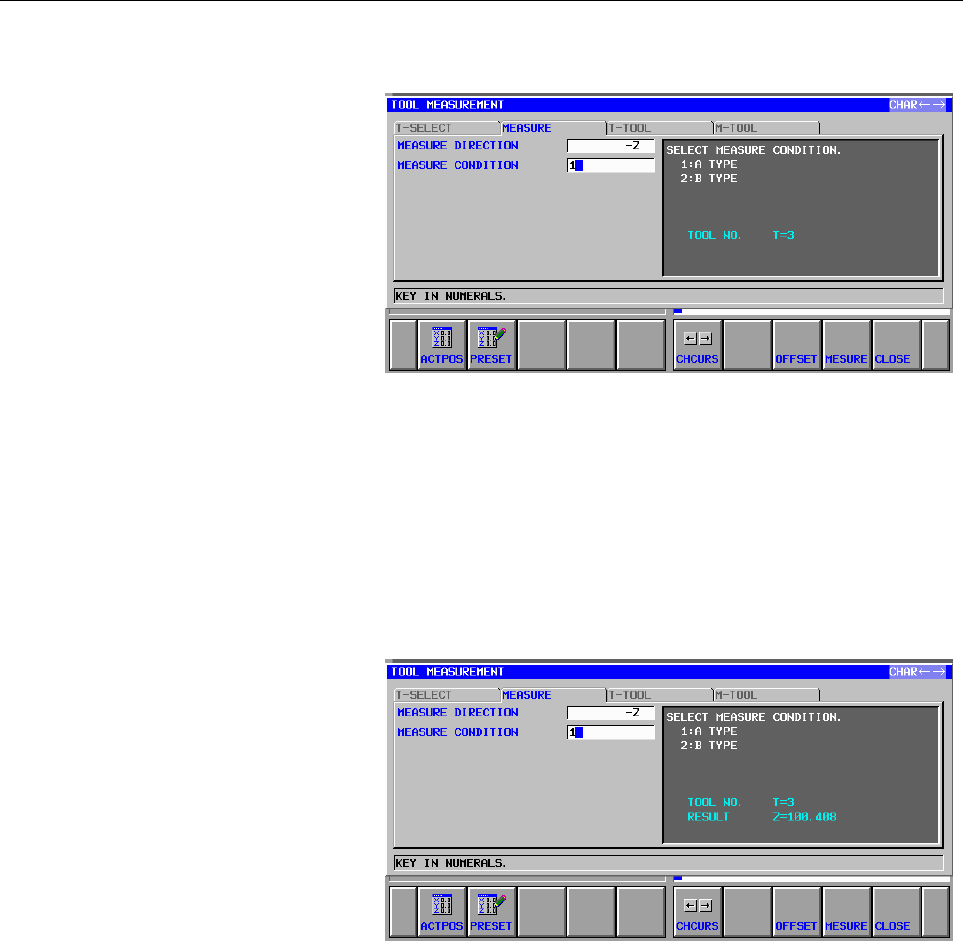

<9> In "MEASURE CONDITION," select a measure condition.

<10>Set up "MEASURE CONDITION."

If more than one measurement condition can be specified in

"TOUCH SENSOR POSITION MEASUREMENT" for

measurement preparation, specify which measurement condition

is to be used in measurement.

<11>After entering data in "MEASURE DIRECTION," press the

[MESURE] soft key. The tool touches the touch sensor

automatically, and the current position of the measurement point

is displayed as the measurement result.
