B-63874EN-1/02 1.MANUAL MEASUREMENT FUNCTIONS

- 9 -

1.2.2 PROBE LENGTH CALIBRATION

Measurement procedure

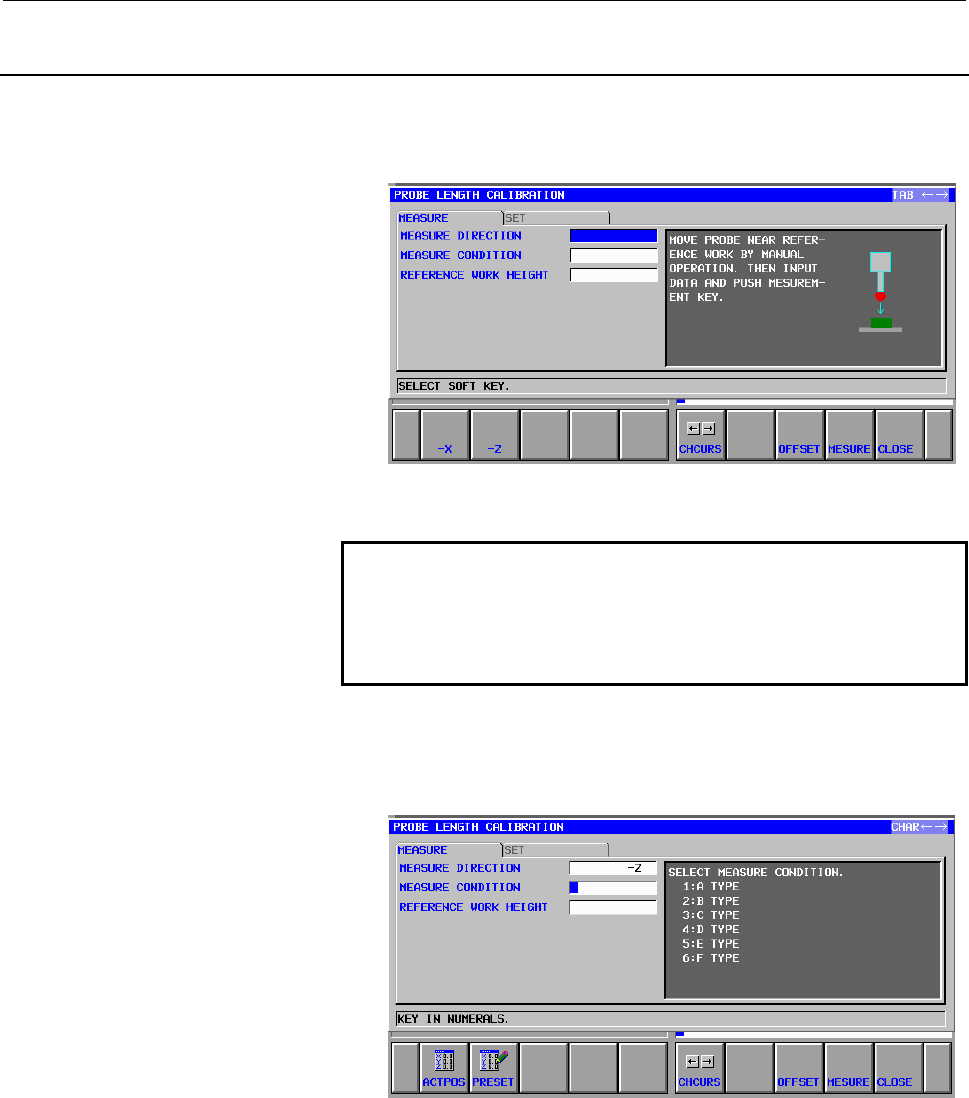

<1> Select PROBE LENGTH CALIBRATION from the

measurement preparation function menu.

<2> Get the probe close to the measurement reference workpiece

such as a ring gauge by moving it manually.

NOTE

Place the probe in such a safe place that when

measurement is performed, that is, the probe

touches the reference workpiece, the probe will not

touch the workpiece or machine.

<3> After moving the probe, select a measure direction from the [-X]

and [-Z] soft keys.

<4> In "MEASURE CONDITION," select a measure condition.
