2.MEASUREMENT CYCLE B-63874EN-1/02

- 126 -

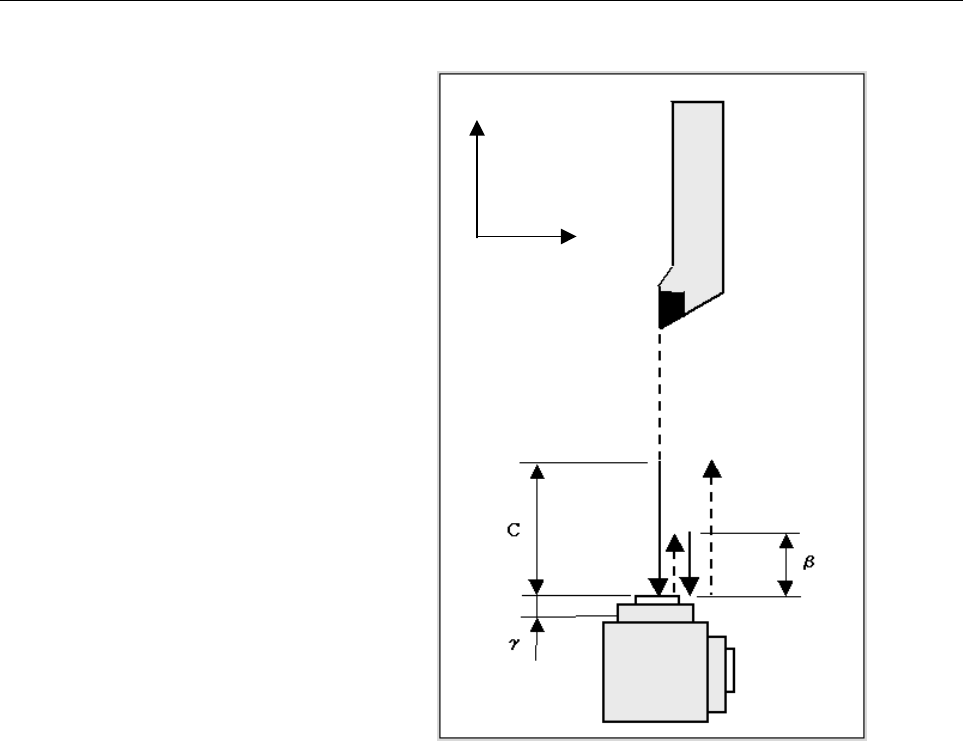

- Measurement of an offset value in the -Z-axis direction

The measurement motion described below is made when [AUTO] is

selected in all input items of “SPECIFY OF X SHIFT”, “SPECIFY

OF Y SHIFT”, and “SPECIFY OF Z SHIFT”.

<1> A rapid movement is made from the current position to the

approach point (X coordinate,Y coordinate).

Here, the approach point (X coordinate) represents (X coordinate

of the "sensor position for measurement in the -Z direction" +

OFS

). The approach point (Y coordinate) represents the Y

coordinate of the "sensor position for measurement in the -Z

direction" of the touch sensor position in the specified

measurement condition.

<2> In the Z-axis direction, a rapid movement is made to the

approach point (Z coordinate).

Here, the approach point (Z coordinate) represents (Z coordinate

of the "sensor position for measurement in the -Z direction" of

the touch sensor position in the specified measurement condition

+ "CLEARANCE" + OFS

<3> In the range from the approach point to ("CLEARANCE" + γ), a

measurement is made at feedrate f. (First measurement)

<4> Next, a rapid return movement is made by β, and a measurement

is made in the range from that position to (β + γ) at the specified

feedrate F. (Second measurement).

<5> Then, a rapid return movement is made by ε in the +Z-axis

direction.
