B-63874EN-1/02 1.MANUAL MEASUREMENT FUNCTIONS

- 15 -

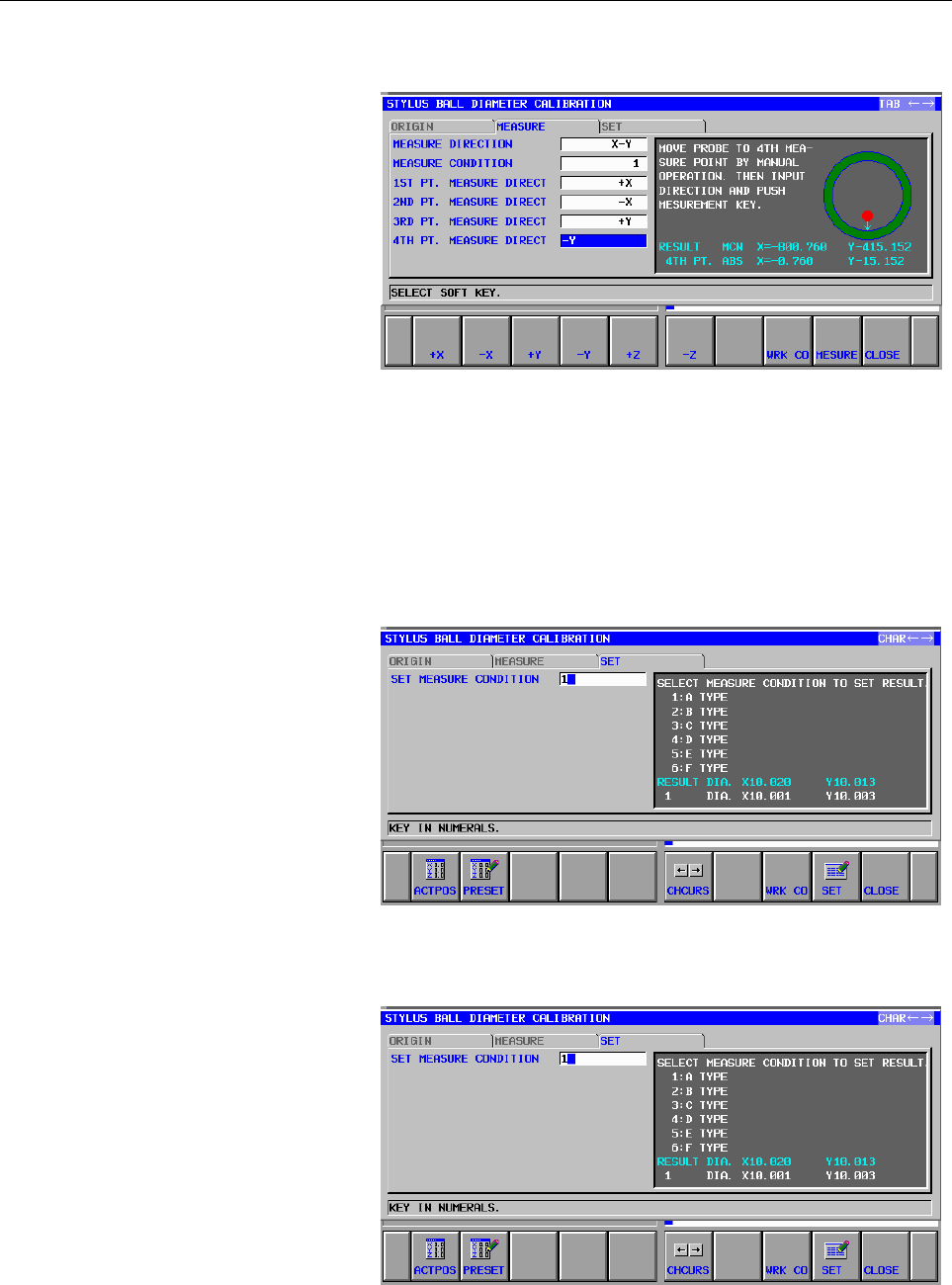

<9> Perform measurement for the second, third, and fourth points in

the same manner as for the first point.

<10>Press the [→] cursor key. The "SET" screen appears.

<11>Using a number, specify a condition for which the measurement

result is to be set by selecting it from the two or more

"MEASURE CONDITION" items.

The number corresponding to the measurement condition

specified on the "MEASURE" tab is displayed by default.

This "MASURE CONDITION" is referenced at workpiece

measurement.

<12>Select the "MEASURE CONDITION" for the item to which the

measurement result is to be set. The currently set value for the

stylus ball diameter for the measurement condition appears.
