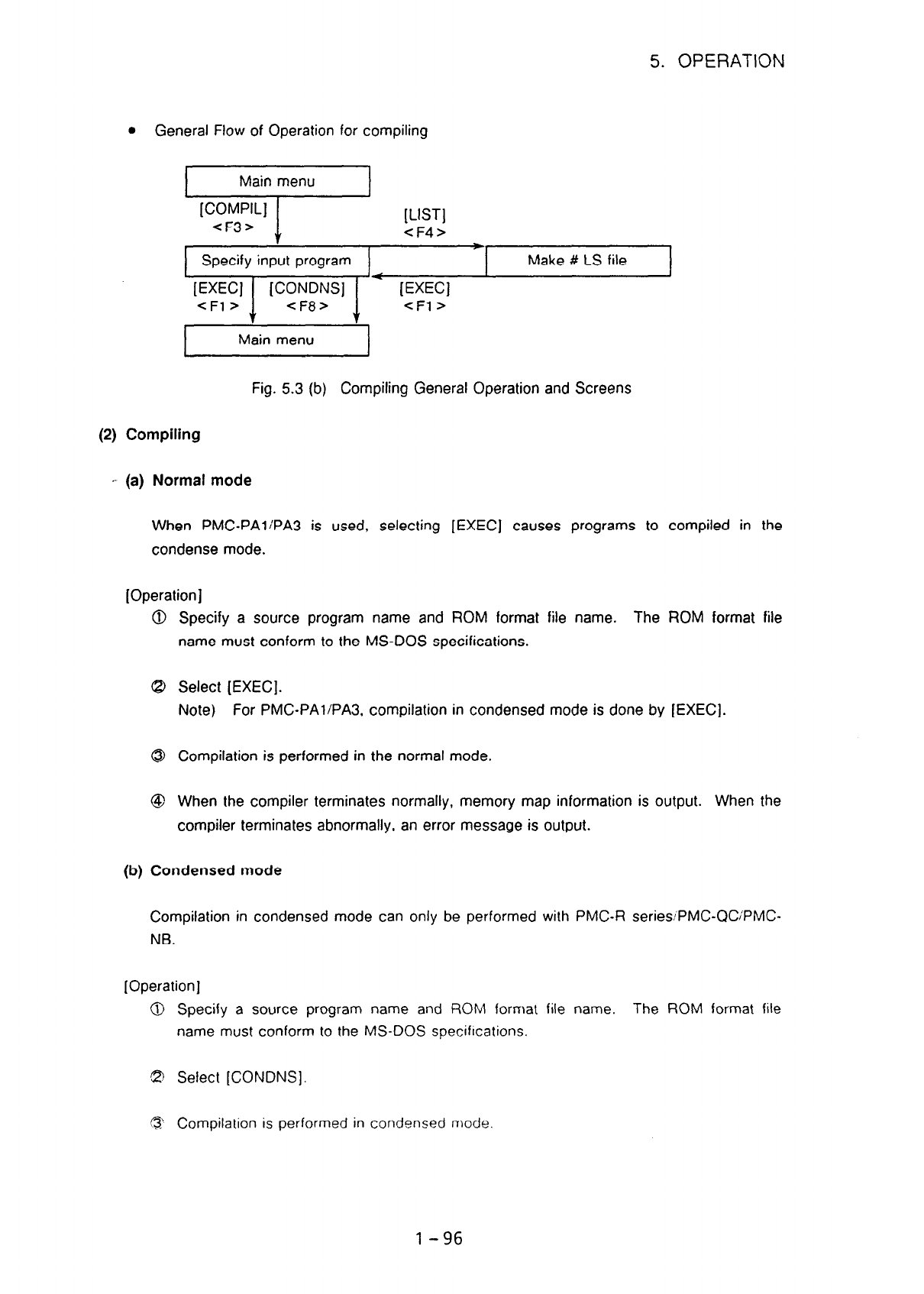

5. OPERATION

l General Flow of Operation for compiling

Main menu

!$yg Make#LS fi’e ’

Main menu

Fig. 5.3 (b) Compiling General Operation and Screens

(2) Compiling

.- (a) Normal mode

When PMCPAljPA3 is used, selecting [EXEC] causes programs to compiled in the

condense mode.

[Operation]

@ Specify a source program name and ROM format file name. The ROM format file

name must conform to the MS-DOS specifications.

@ Select (EXEC].

Note) For PMC-PAlIPA3. compilation in condensed mode is done by [EXEC].

Q Compilation is performed in the normal mode.

@ When the compiler terminates normally, memory map information is output. When the

compiler terminates abnormally, an error message is output.

(b) Condensed mode

Compilation in condensed mode can only be performed with PMC-R series!PMC-QC’PMC-

NB.

[Operation]

0 Specify a source program name and ROM format file name. The ROM format file

name must conform to the MS-DOS speciftcations.

8 Select [CONDNS]

Q Compilation is performed in condensed mode.

l-96
