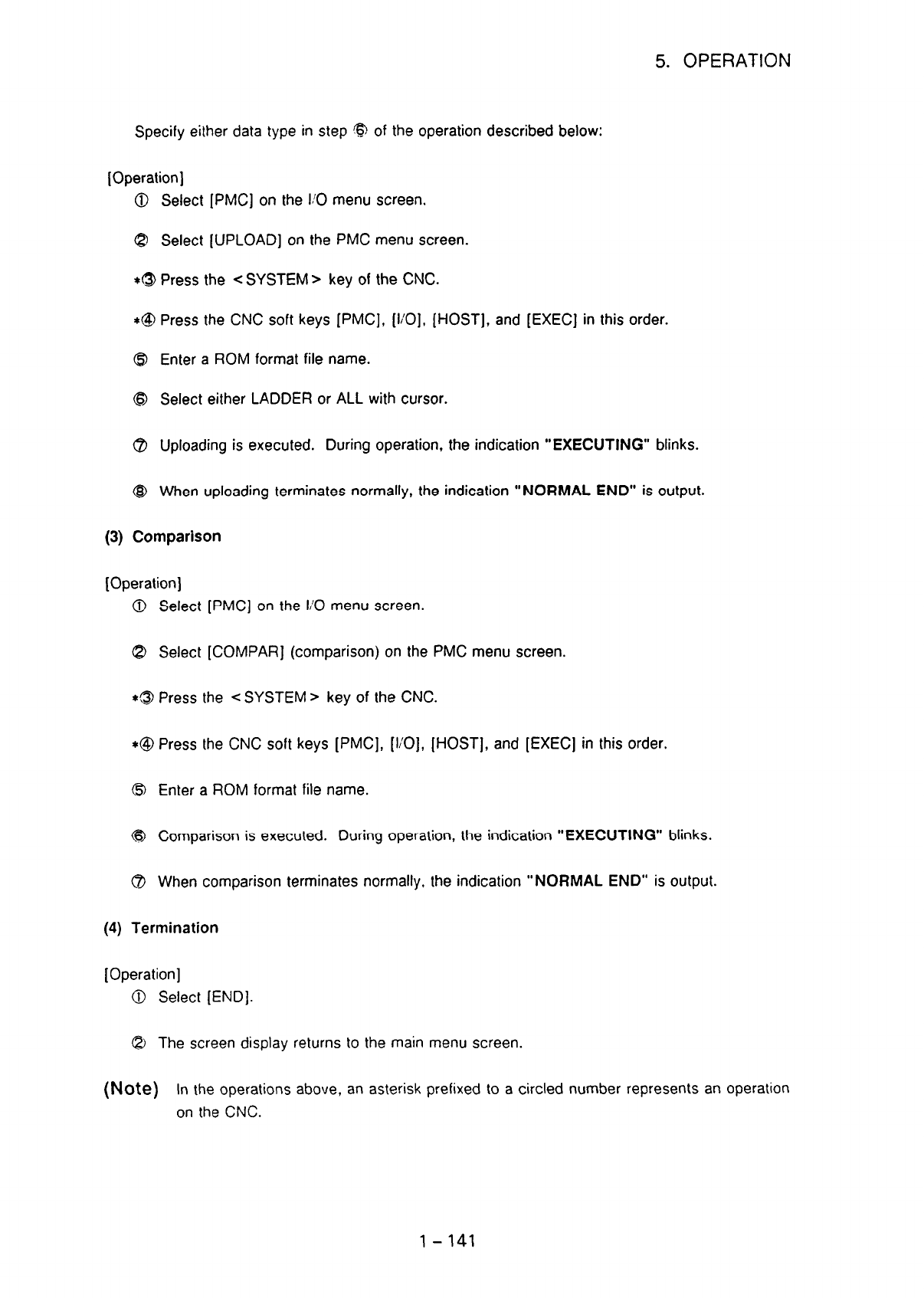

5. OPERATION

Specify either data type in step 8 of the operation described below:

[Operation]

0 Select [PMC] on the I/O menu screen.

8 Select [UPLOAD] on the PMC menu screen.

*a Press the <SYSTEM> key of the CNC.

*@ Press the CNC soft keys [PMC], (IO], [HOST], and [EXEC] in this order.

@ Enter a ROM format file name.

@ Select either LADDER or ALL with cursor.

(?I Uploading is executed. During operation, the indication “EXECUTING” blinks.

@ When uploading terminates normally, the indication “NORMAL END” is output.

(3) Comparison

[Operation]

0 Select [PMC] on the 11’0 menu screen.

C!9 Select [COMPAR] (comparison) on the PMC menu screen.

*a Press the <SYSTEM > key of the CNC.

*@I Press the CNC soft keys [PMC], [I/O], [HOST], and [EXEC] in this order.

@ Enter a ROM format file name.

6) Comparison is executed. During operation, the indication “EXECUTING” blinks.

8 When comparison terminates normally, the indication “NORMAL END” is output.

(4) Termination

[Operation]

0 Select [END].

(21 The screen display returns to the main menu screen.

(Note) In the operations above, an asterisk prefixed to a circled number represents an operation

on the CNC.

l- 141
