APPENDIX 6

APPENDIX 6 MEMORY CARD COMPATIBILITY

(FOR THE PMC-RAl/RA3, NB, AND QC)

MEMORY CARD COMPATIBILITY

(FOR THE PMGRAlIRA3, NB, AND QC)

If a CNC or off-line programmer operating on an upgraded edition is used to output a sequence

program to a memory card, the sequence program may not be able to be input to a CNC or off-line

programmer operating on an earlier edition (see below).

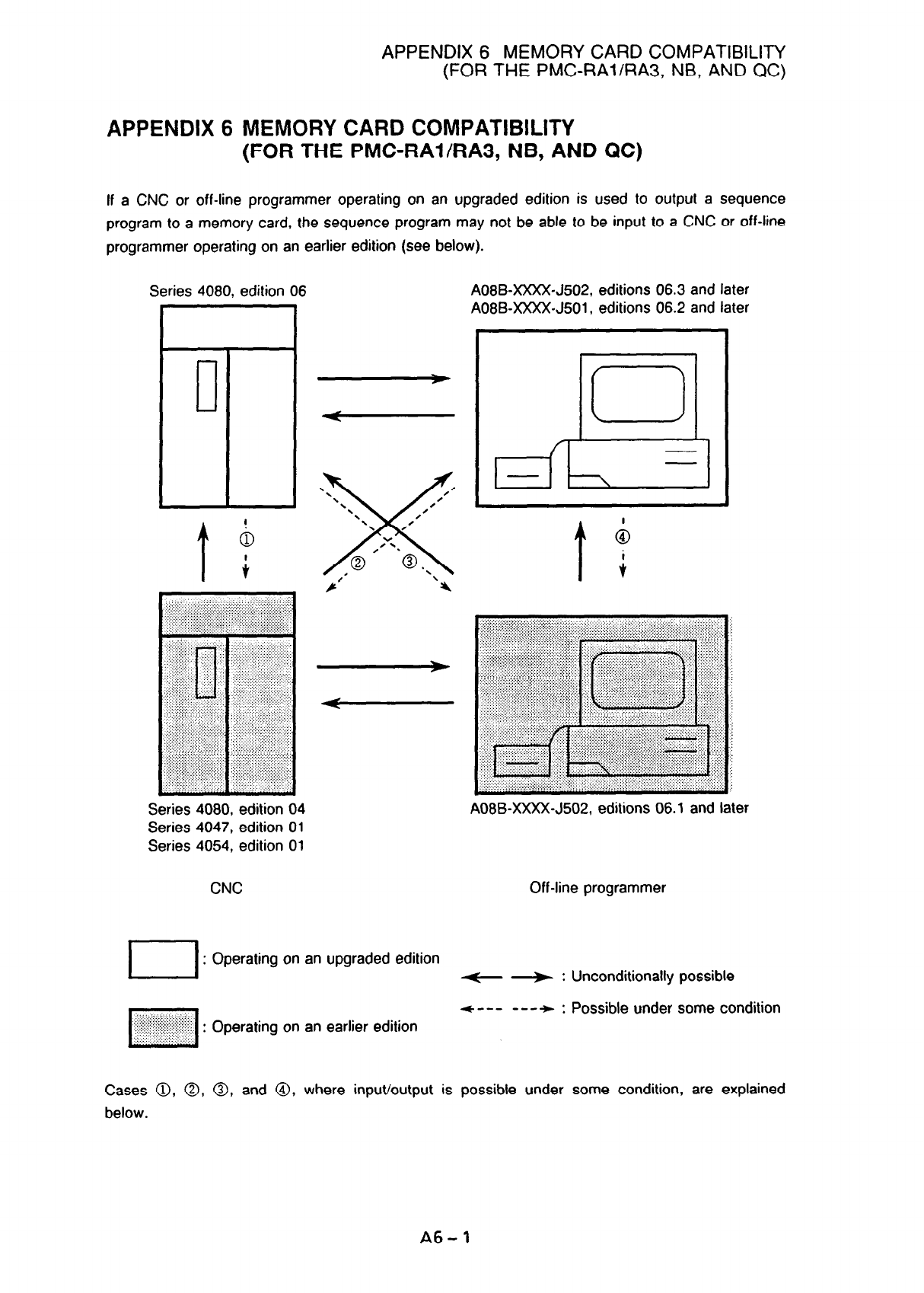

Series 4080, edition 06

Series 4080, edition 04

Series 4047, edition 01

Series 4054, edition 01

CNC

Off-line programmer

A08B-XXXX-J502, editions 06.3 and later

A08B-XXXX-J501, editions 06.2 and later

AO8B-XXXX-J502, editions 06.1 and later

: Operating on an upgraded edition

f- -+ : Unconditionally possible

+___ ___+

: Possible under some condition

: Operating on an earlier edition

Cases 0, 0, 0, and 0, where input/output is possible under some condition, are explained

below.

A6-1
