5. OPERATION

[Operation]

Substituting [Move] for [Copy], follow steps 0 to $3 for copying.

(Note) incorrect nets cannot be moved.

(10) Combining a sequence program

A source program can be combined to another source program that is being edited.

The source program to be combined can be displayed and edited separately, then combined to

the original source program that is being edited.

[}-9

Section to be edited

Original screen

File being edited

(original file)

View screen

F-01

Combine

Edit

Edited file to be

combined

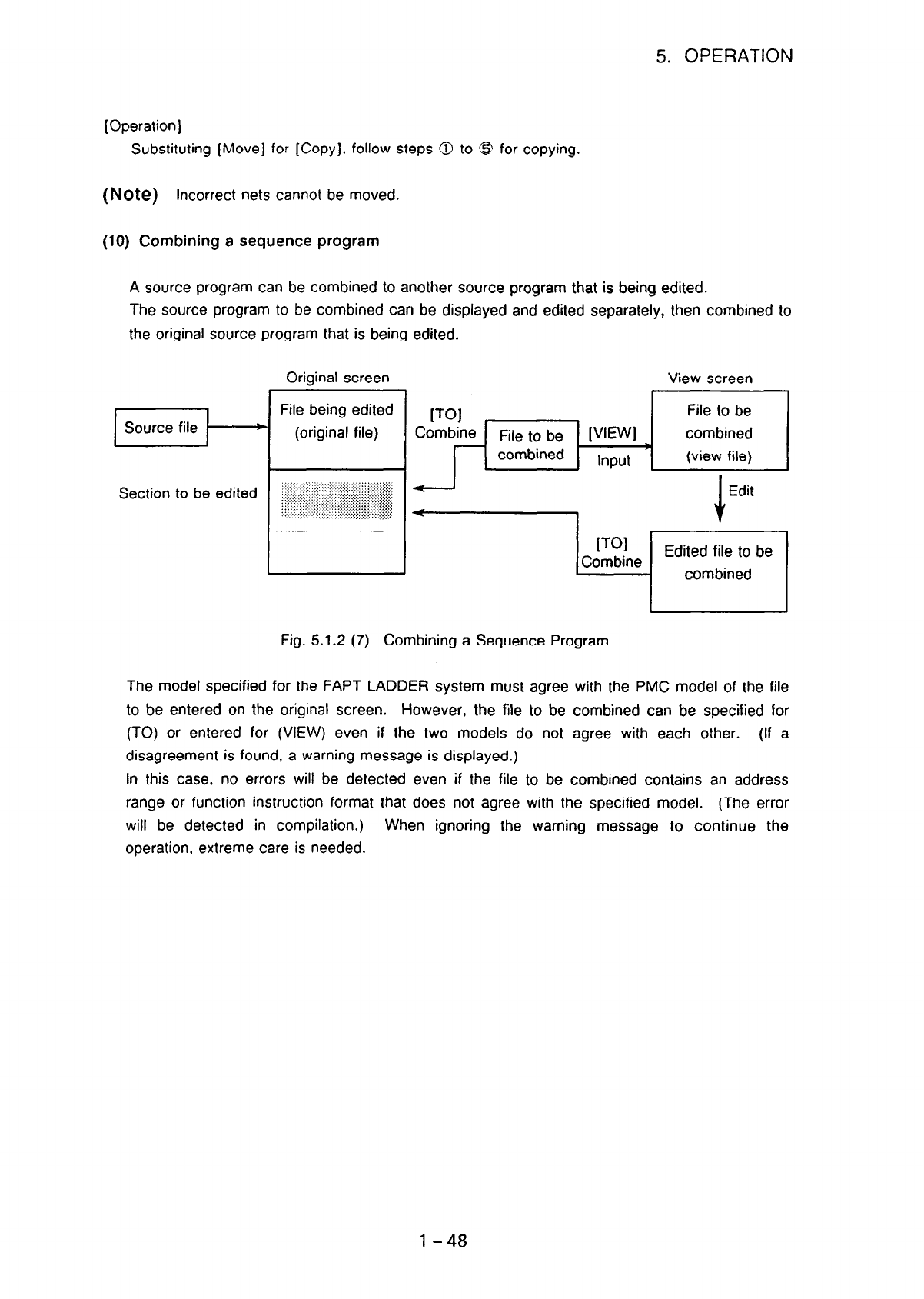

Fig. 51.2 (7) Combining a Sequence Program

The model specified for the FAPT LADDER system must agree with the PMC model of the file

to be entered on the original screen.

However, the file to be combined can be specified for

(TO) or entered for (VIEW) even if the two models do not agree with each other. (If a

disagreement is found, a warning message is displayed.)

In this case, no errors will be detected even if the file to be combined contains an address

range or function instruction format that does not agree with the specified model. (The error

will be detected in compilation.)

When ignoring the warning message to continue the

operation, extreme care is needed.

l-48
