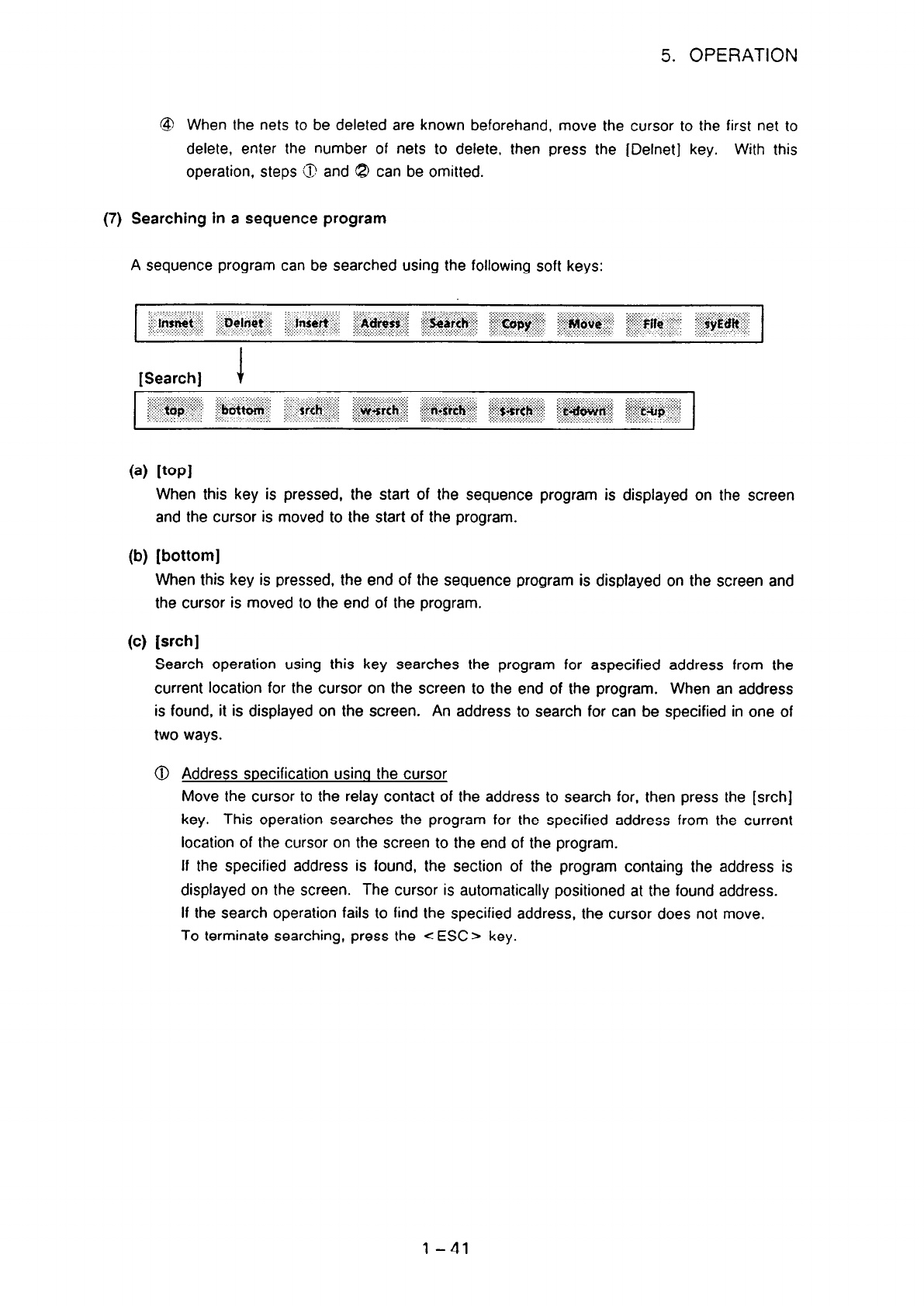

5. OPERATION

@ When the nets to be deleted are known beforehand, move the cursor to the first net to

delete, enter the number of nets to delete. then press the [Delnet] key. With this

operation, steps G and 8 can be omitted.

(7) Searching in a sequence program

A sequence program can be searched using the following soft keys:

(Search1

When this key is pressed, the start of the sequence

and the cursor is moved to the start of the program.

(b) [bottom]

program is displayed on the screen

When this key is pressed, the end of the sequence program is displayed on the screen and

the cursor is moved to the end of the program.

Search operation using this key searches the program for aspecified address from the

current location for the cursor on the screen to the end of the program. When an address

is found, it is displayed on the screen. An address to search for can be specified in one of

two ways.

0 Address specification usina the cursor

Move the cursor to the relay contact of the address to search for, then press the [srch]

key. This operation searches the program for the specified address from the current

location of the cursor on the screen to the end of the program.

If the specified address is found, the section of the program containg the address is

displayed on the screen. The cursor is automatically positioned at the found address.

If the search operation fails to find the specified address, the cursor does not move.

To terminate searching, press the c ESC > key.

l-41
