5. OPERATION

Note) If the step sequence function is selected when setting a model, the link compile

function specified by the control statement,“file with extension .#LS”, is not used. The

[LIST] command, used to create a control statement, is not included in the function key

menu and cannot be executed.

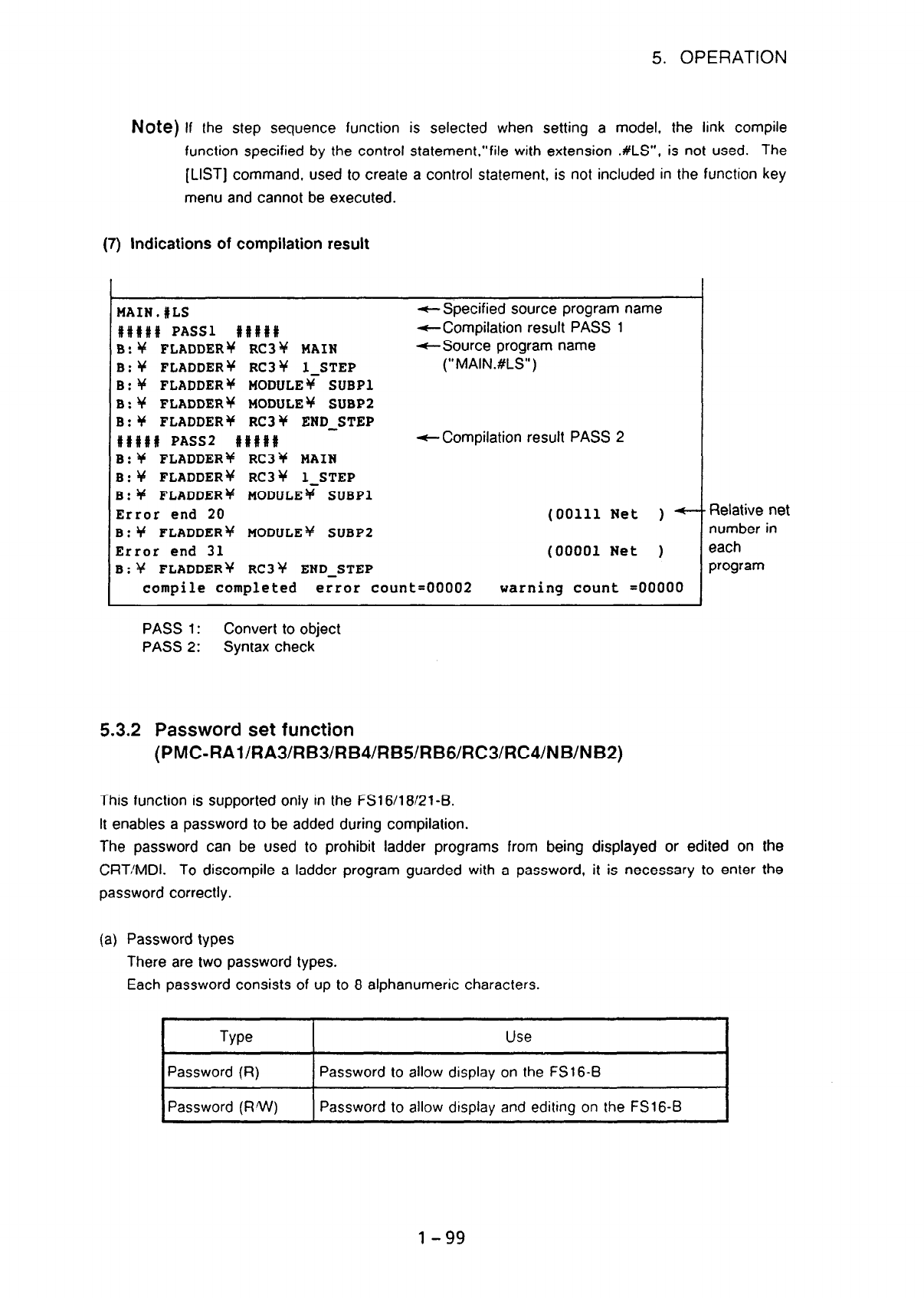

(7) Indications of compilation result

MAIN.#LS

c Specified source program name

##### PASS1 ###I#

+-Compilation result PASS 1

B:rb FLADDERY RC3ab MAIN

-Source program name

B:Y FLADDERY RC3+ I-STEP

(“MAIN.#LS”)

B: Y FLADDERS' MODULE+ SUBPl

B:a( FLADDERY MODULEY SUBPZ

B:Y FLADDERY RC3+ END-STEP

####t PASS2 #####

tcompilation result PASS 2

B:Y FLADDERY

B:M FLADDERY

B: + FLADDERY

Error end 20

B: Y FLADDERY

Error end 31

B:Y FLADDERY

RC3Y MAIN

RC3Y l-STEP

MODULE+ SUBPl

MODULEM SUBPZ

RC3M END-STEP

(00111 Net ) -

(00001 Net )

compile completed error count=00002

warning count =OOOOO

PASS 1: Convert to object

PASS 2: Syntax check

5.3.2 Password set function

(PMGRAl/RA3/RB3/RB4/RB5/RB6/RC3/RC4/NB/NB2)

This function is supported only in the FS16/18/21 -B.

It enables a password to be added during compilation.

The password can be used to prohibit ladder programs from being

CRT:MDI. To discompile a ladder program guarded with a password,

password correctly.

(a)

Password types

There are two password types.

Each password consists of up to 8 alphanumeric characters.

Relative net

number in

each

program

displayed or edited on

the

it is necessary to enter the

Type

Use

Password (R)

Password to allow display on the FSlG-B

Password (R/W) Password to allow display and editing on the FSlG-B

l-99
