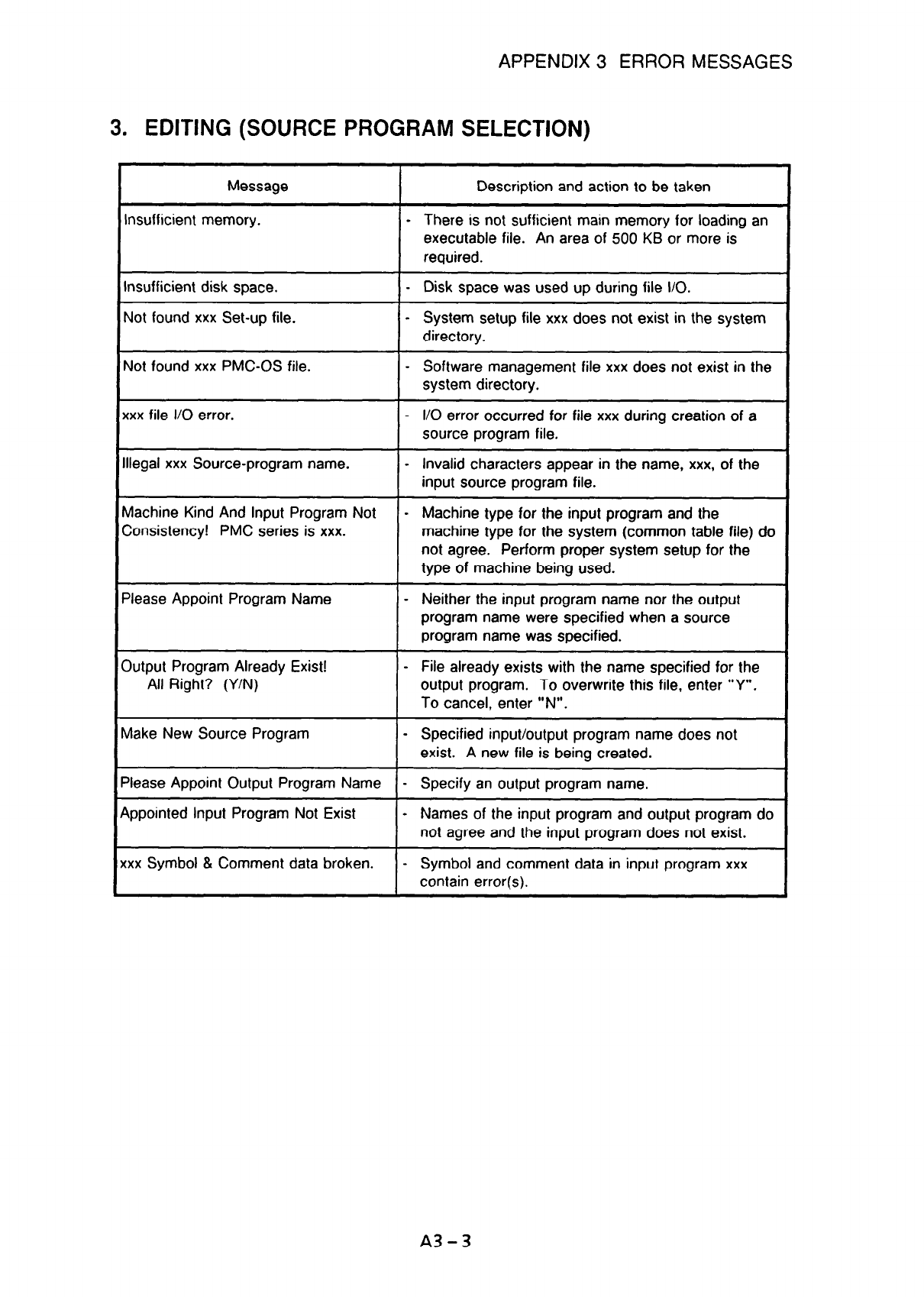

APPENDIX 3 ERROR MESSAGES

3. EDITING (SOURCE PROGRAM SELECTION)

Message

Insufficient memory.

Description and action to be taken

- There is not sufficient main memory for loading an

executable file. An area of 500 KB or more is

required.

nsufficient disk space.

\lot found xxx Set-up file.

- Disk space was used up during file l/O.

- System setup file xxx does not exist in the system

directory.

\lot found xxx PMC-OS file.

- Software management file xxx does not exist in the

system directory.

(xx file I/O error.

- I/O error occurred for file xxx during creation of a

source program file.

llegal xxx Source-program name. - Invalid characters appear in the name, xxx, of the

input source program file.

inachine Kind And Input Program Not

>onsistency! PMC series is xxx.

- Machine type for the input program and the

machine type for the system (common table file) do

not agree. Perform proper system setup for the

type of machine being used.

‘lease Appoint Program Name

- Neither the input program name nor the output

program name were specified when a source

program name was specified.

Output Program Already Exist!

All Right? (Y/N)

- File already exists with the name specified for the

output program. To overwrite this file, enter ‘3”‘.

To cancel, enter “N”.

nake New Source Program

- Specified input/output program name does not

exist. A new file is being created.

‘lease Appoint Output Program Name - Specify an output program name.

Ippointed Input Program Not Exist

- Names of the input program and output program do

not agree and the input program does not exist.

xx Symbol & Comment data broken. - Symbol and comment data in input program xxx

contain error(s).
