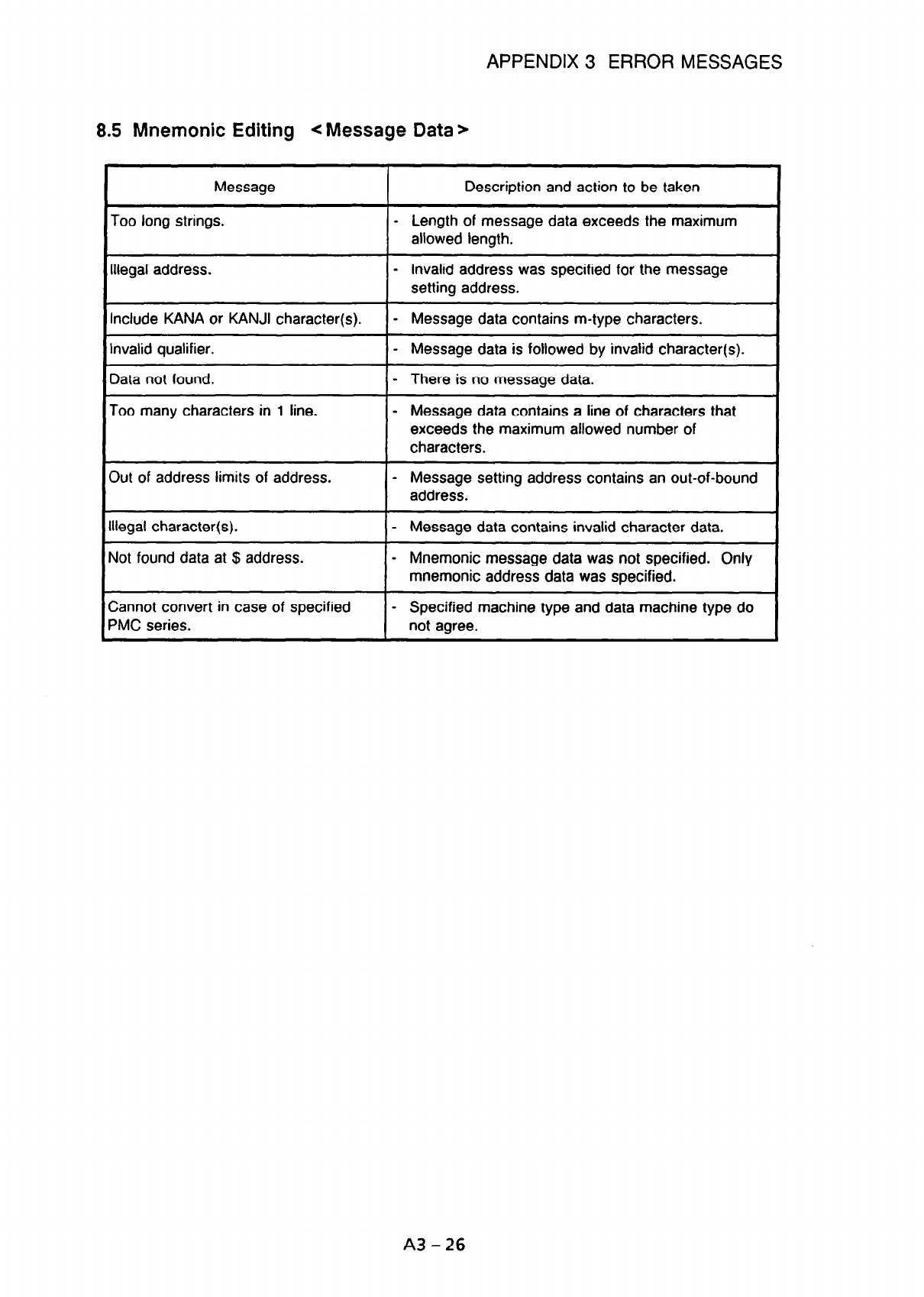

APPENDIX 3 ERROR MESSAGES

8.5 Mnemonic Editing <Message Data>

Message

Too long strings.

Illegal address.

Include KANA or KANJI character(s).

Invalid qualifier.

Data not found.

Too many characters in 1 line.

Description and action to be taken

- Length of message data exceeds the maximum

allowed length.

- Invalid address was specified for the message

setting address.

- Message data contains m-type characters.

- Message data is followed by invalid character(s).

- There is no message data.

- Message data contains a line of characters that

exceeds the maximum allowed number of

characters.

Out of address limits of address. - Message setting address contains an out-of-bound

address.

Illegal character(s).

Not found data at $ address.

- Message data contains invalid character data.

- Mnemonic message data was not specified. Only

mnemonic address data was specified.

Cannot convert in case of specified - Specified machine type and data machine type do

PMC series.

not agree.

A3-26
