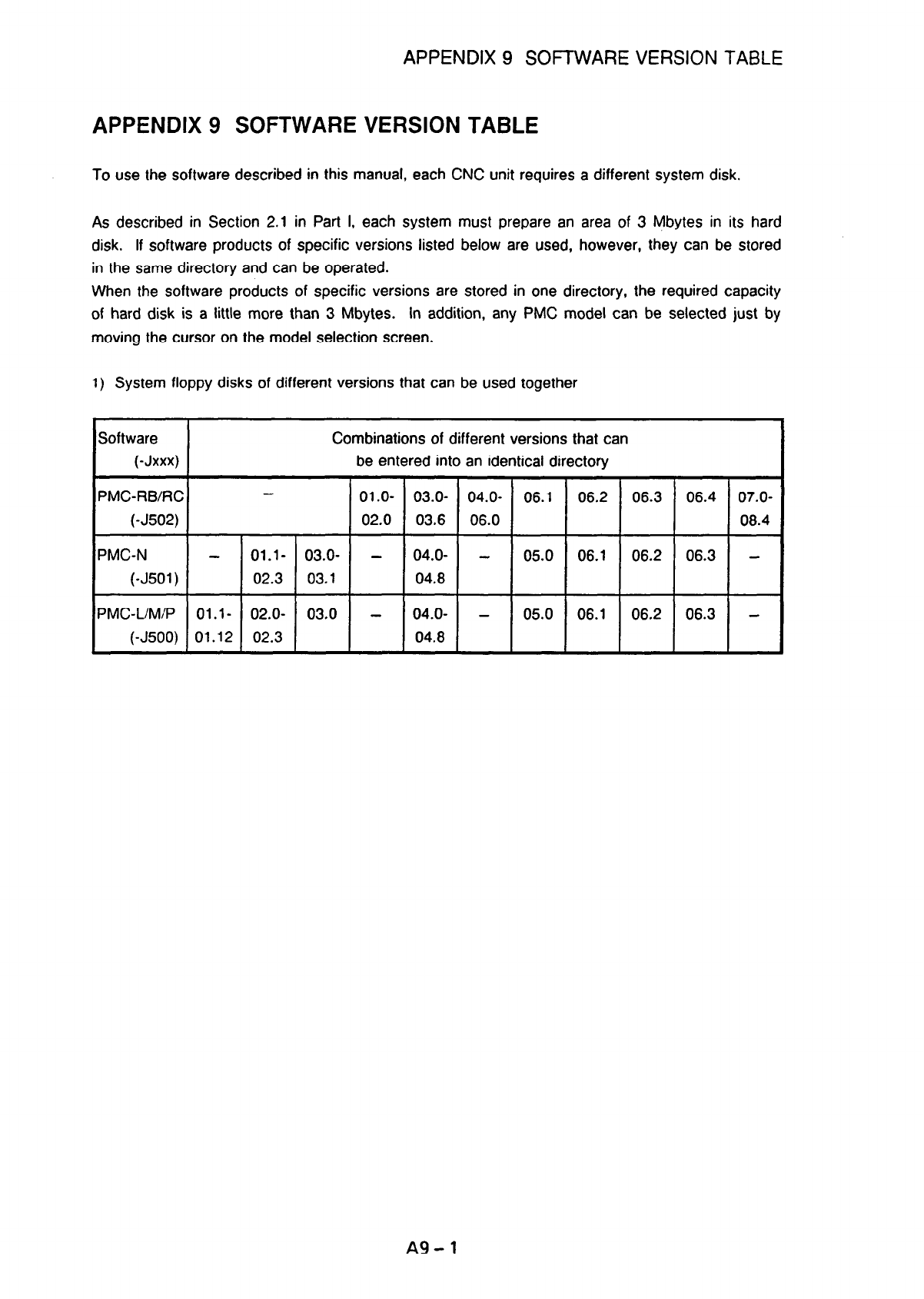

APPENDIX 9 SOFTWARE

APPENDIX 9 SOFTWARE VERSION TABLE

VERSION TABLE

To use the software described in this manual, each CNC unit requires a different system disk.

As described in Section 2.1 in Part I, each system must prepare an area of 3 Mbytes in its hard

disk. If software products of specific versions listed below are used, however, they can be stored

in the same directory and can be operated.

When the software products of specific versions are stored in one directory, the required capacity

of hard disk is a little more than 3 Mbytes. in addition, any PMC model can be selected just by

moving the cursor on the model selection screen.

1) System floppy disks of different versions that can be used together

Software

Combinations of different versions that can

(-Jxxx) be entered into an identical directory

PMC-FIB/FE Ol.O- 03.0- 04.0- 06.1

06.2 06.3 06.4 07.0-

(-J502) 02.0 03.6 06.0

08.4

PMC-N -

Ol.l- 03.0- - 04.0- -

05.0 06.1

06.2 06.3 -

(-J501) 02.3 03.1 04.8

PMC-L/M/P Ol.l- 02.0- 03.0 - 04.0- -

05.0 06.1 06.2 06.3 -

(-J500) 01.12 02.3 04.8

A9-1
