5. OPERATION

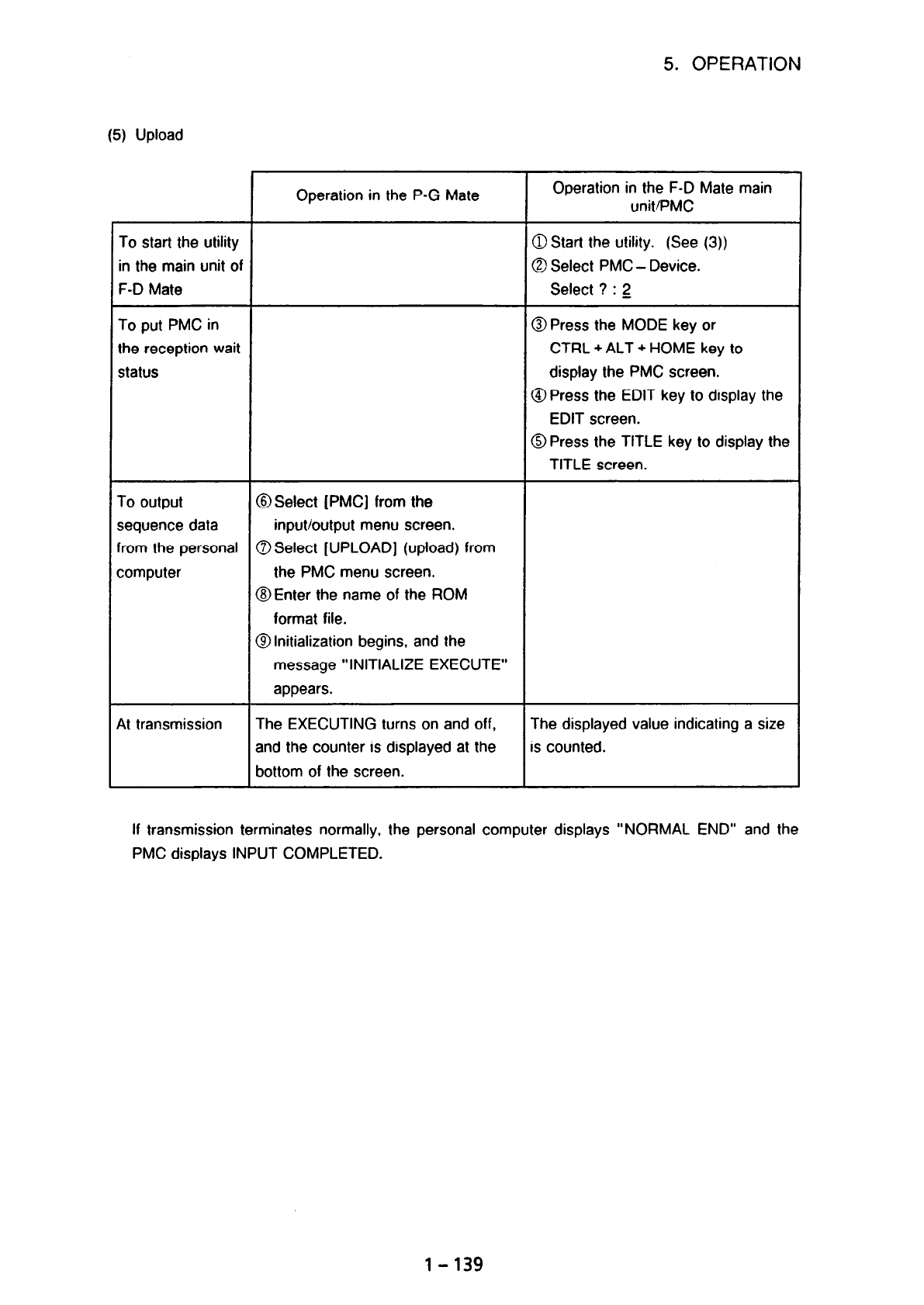

(5) Upload

To start the utility

in the main unit of

F-D Mate

To put PMC in

the reception wait

status

To output

sequence data

from the personal

computer

At transmission

Operation in the P-G Mate

@ Select [PMC] from the

input/output menu screen.

0 Select [UPLOAD] (upload) from

the PMC menu screen.

@Enter the name of the ROM

format file.

@Initialization begins, and the

message “INITIALIZE EXECUTE”

appears.

The EXECUTING turns on and off,

and the counter is displayed at the

bottom of the screen.

Operation in the F-D Mate main

unit/PMC

3 Start the utility. (See (3))

3 Select PMC - Device.

Select ? : 2

3 Press the MODE key or

CTRL + ALT + HOME key to

display the PMC screen.

9 Press the EDIT key to display the

EDIT screen.

9 Press the TITLE key to display the

TITLE screen.

The displayed value indicating a size

s counted.

If transmission terminates normally, the personal computer displays “NORMAL END” and the

PMC displays INPUT COMPLETED.

1-139
