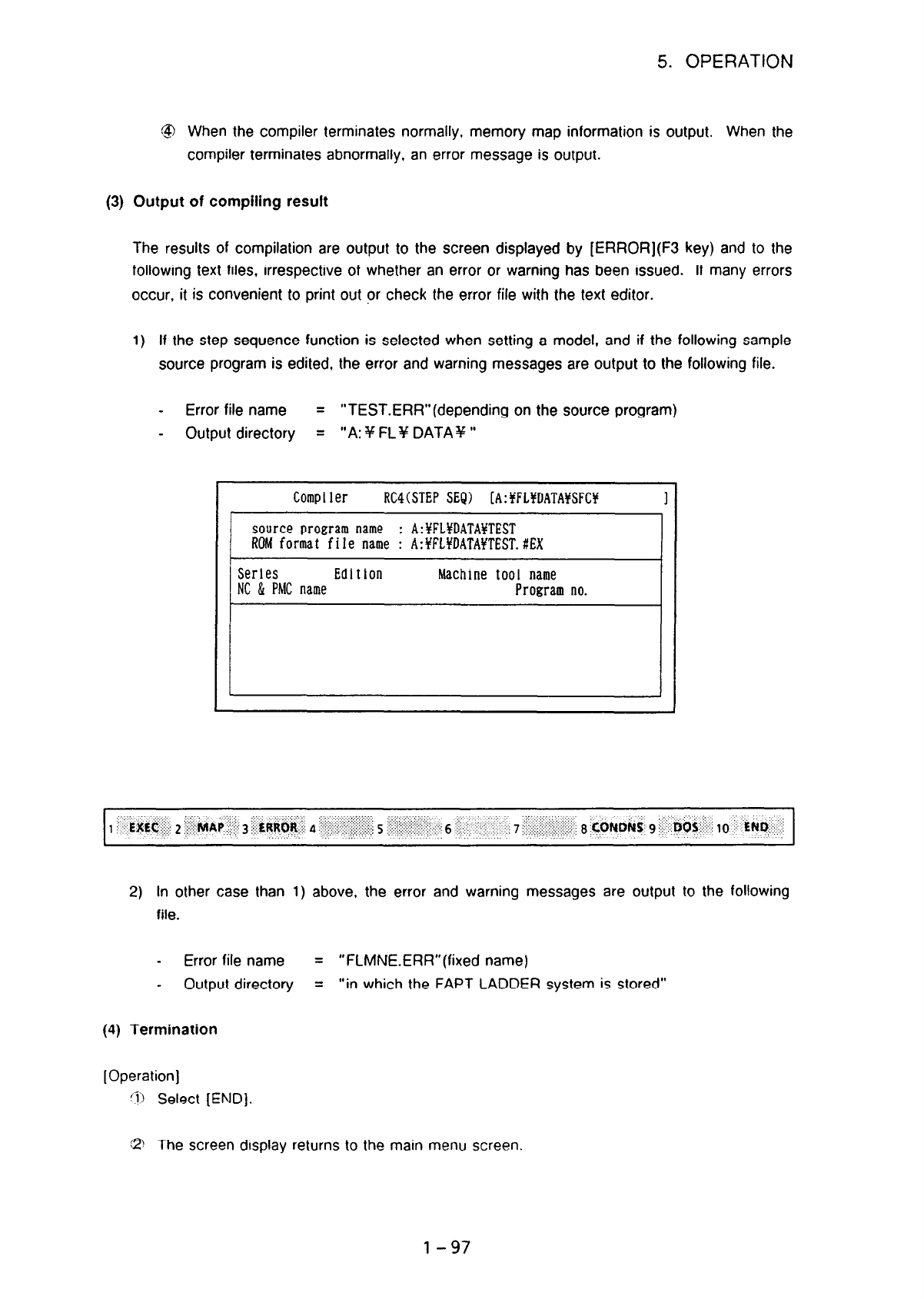

5. OPERATION

9 When the compiler terminates normally, memory map information is output. When the

compiler terminates abnormally, an error message is output.

(3) Output of compiling result

The results of compilation are output to the screen displayed by [ERROR](F3 key) and to the

following text files, irrespective of whether an error or warning has been issued. If many errors

occur, it is convenient to print out pr check the error fife with the text editor.

1) If the step sequence function is selected when setting a model, and if the following sample

source program is edited, the error and warning messages are output to the following file.

- Error file name

= “TEST.ERR”(depending on the source program)

Compiler

RCBGTEP SEQ) [A:YFLYDATAWFCY

source program name : A:YFLYDATAYTEST

ROM format file name : A:YFLYDATAfTEST. #EX

- Output directory

= “A: Y FLY DATA% ”

Series

Edition

Machine tool name

NC & PMC name

Program no.

2) In other case than 1) above, the error and warning messages are output to the following

file.

- Error file name =

“FLMNE.ERR”(fixed name)

- Output directory =

“in which the FAPT LADDER system is stored”

(4) Termination

[Operation]

3 Select [END).

C?9 The screen display returns to the main menu screen.

l-97
