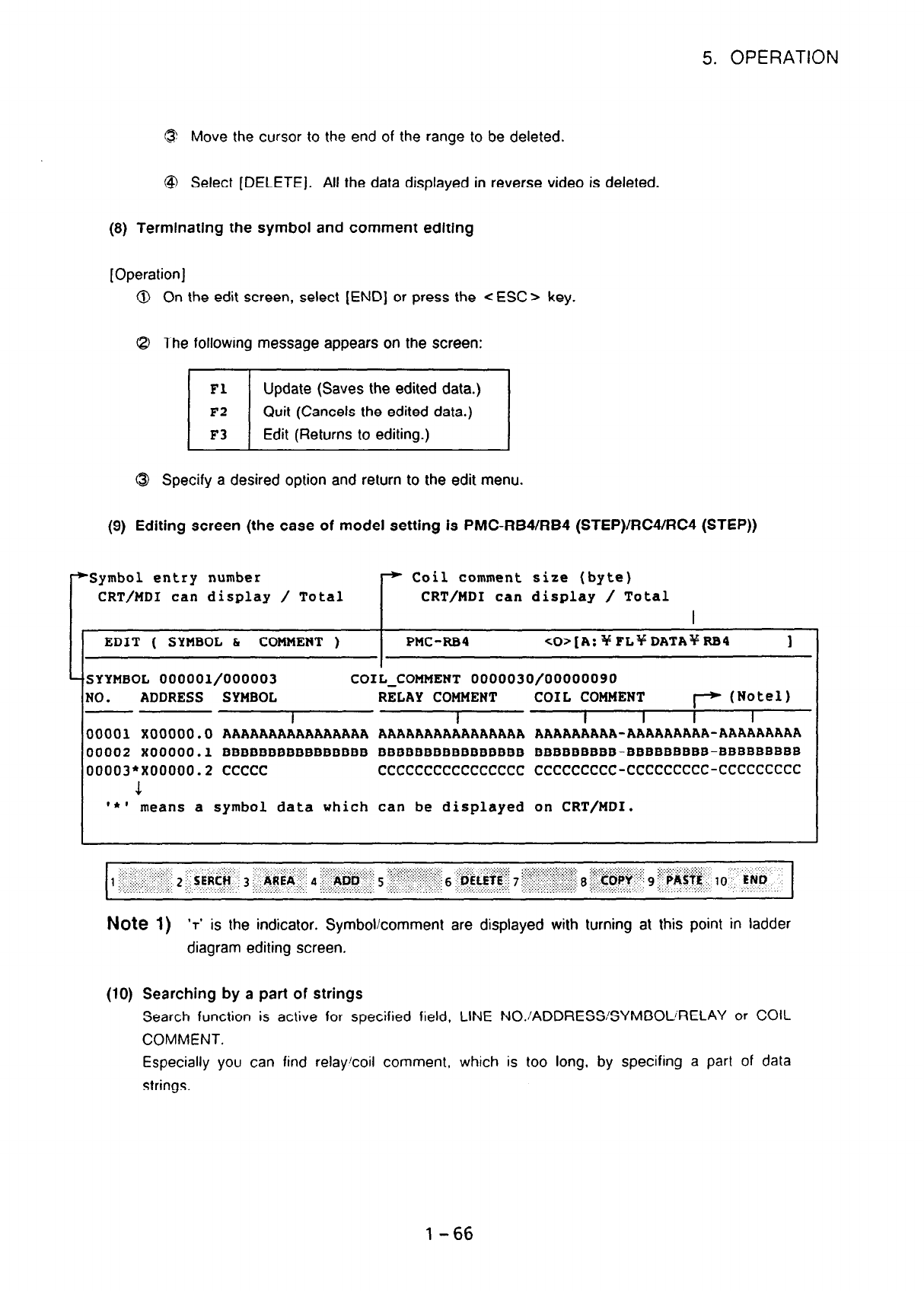

FAPT Ladder for PC Operators manual Page 73

Operators manual

Page of 311

/ 311

5. OPERATION

Q Move the cursor to the end of the range to be deleted.

@ Select [DELETE]. All the data displayed in reverse video is deleted.

(8) Terminating the symbol and comment editing

[Operation]

0 On the edit screen, select [END] or press the <ESC> key.

8 The following message appears on the screen:

1 !i

Update (Saves the edited data.)

1 Edit (Returns to editing.)

Qutt (Cancels the edited data.)

0 Specify a desired option and return to the edit menu.

(9) Editing screen (the case of model setting is PMC-RBWRB4

(STEP)/RCWRC4 (STEP))

*Symbol entry number

I+

Coil comment size

(byte)

CRT/MD1 can display / Total

EDIT ( SYMBOL 6 COMMENT )

PMC-RB4

<O>[A:%FLvDATA%RB4

SYYMBOL 000001/000003 COIL_COMMENT 0000030/00000090

NO.

ADDRESS SYMBOL RELAY COMMENT

COIL COMMENT

y (Notel)

I I

00001 X00000.0 AAAAAAAAAAAAAAAA AAAAAAAAAAAAAAAA AAAAAAAAA-AAAAAAAAA-AAAAAAAAA

00002 X00000.1 BBBBBBBBBBBBBBBB BBBBBBBBBBBBBBBB BBBBBBBBB-BBBBBBBBB-BBBBBBBBB

00003*X00000.2 CCCCC

cccccccccccccccc ccccccccc-ccccccccc-ccccccccc

'*' means a symbol data which can be displayed on CRT/MDI.

Note 1) ‘T’ is the indicator. Symbol/comment are displayed with turning at this point in ladder

diagram editing screen.

(10)

Searching by a part of strings

Search function is active for specified field, LINE NO.IADDRESSiSYMBOLGELAY or COIL

COMMENT.

Especially you can find relay!coil comment, which is too long, by specifing a part of data

strings.

l-66
