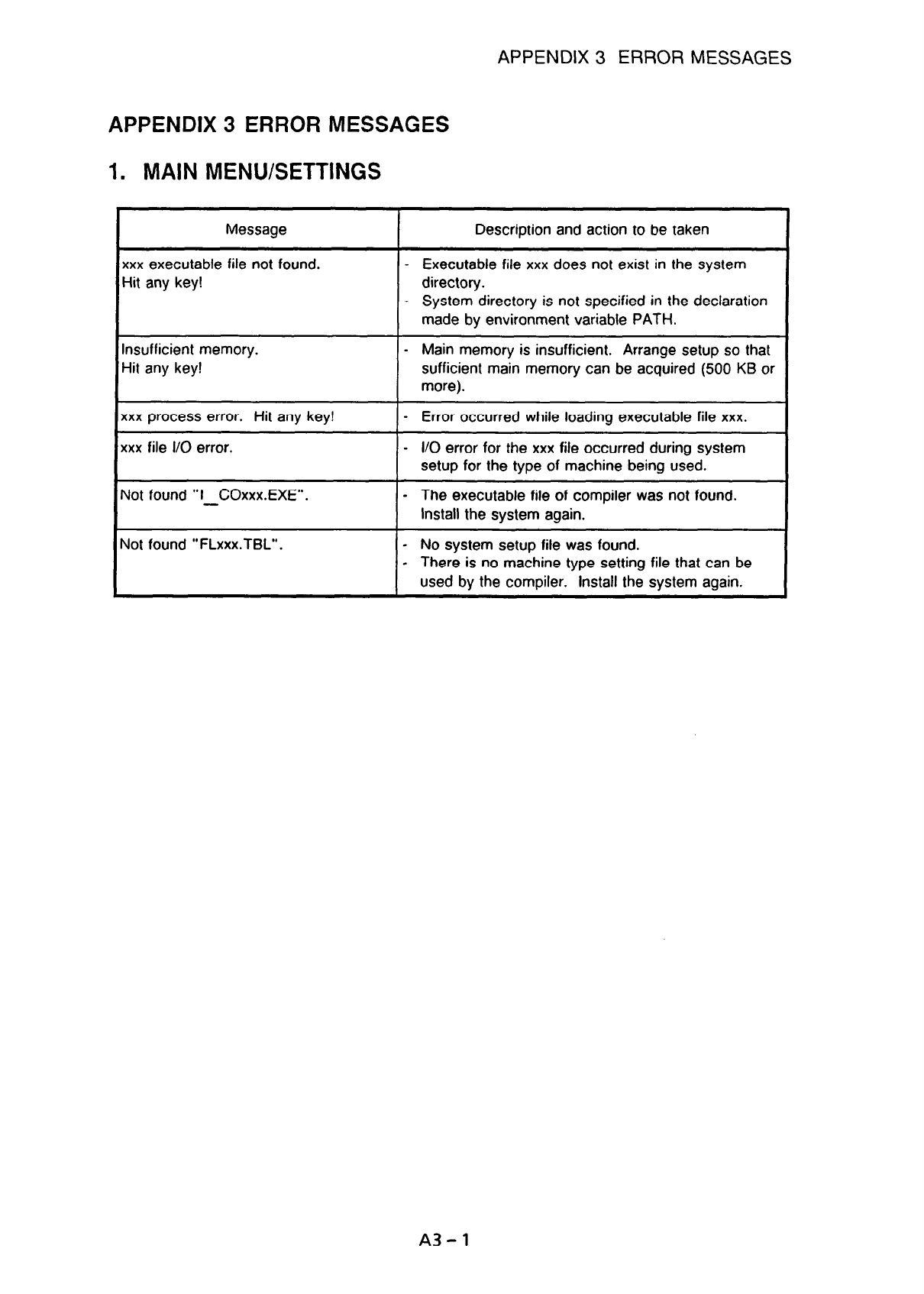

APPENDIX 3 ERROR MESSAGES

1. MAIN MENU/SETTINGS

Message

xxx executable file not found.

Hit any key!

Description and action to be taken

- Executable file xxx does not exist in the system

directory.

- System directory is not specified in the declaration

made by environment variable PATH.

Insufficient memory.

Hit any key!

- Main memory is insufficient. Arrange setup so that

sufficient main memory can be acquired (500 KB or

more).

xxx process error. Hit any key!

xxx file l/O error.

- Error occurred while loading executable file xxx.

- I/O error for the xxx file occurred during system

setup for the type of machine being used.

Not found “I_COxxx.EXE”. - The executable file of compiler was not found.

Install the system again.

Not found “FLxxx.TBL”.

- No system setup file was found.

- There is no machine type setting file that can be

used by the compiler. install the system again.

A3-1
