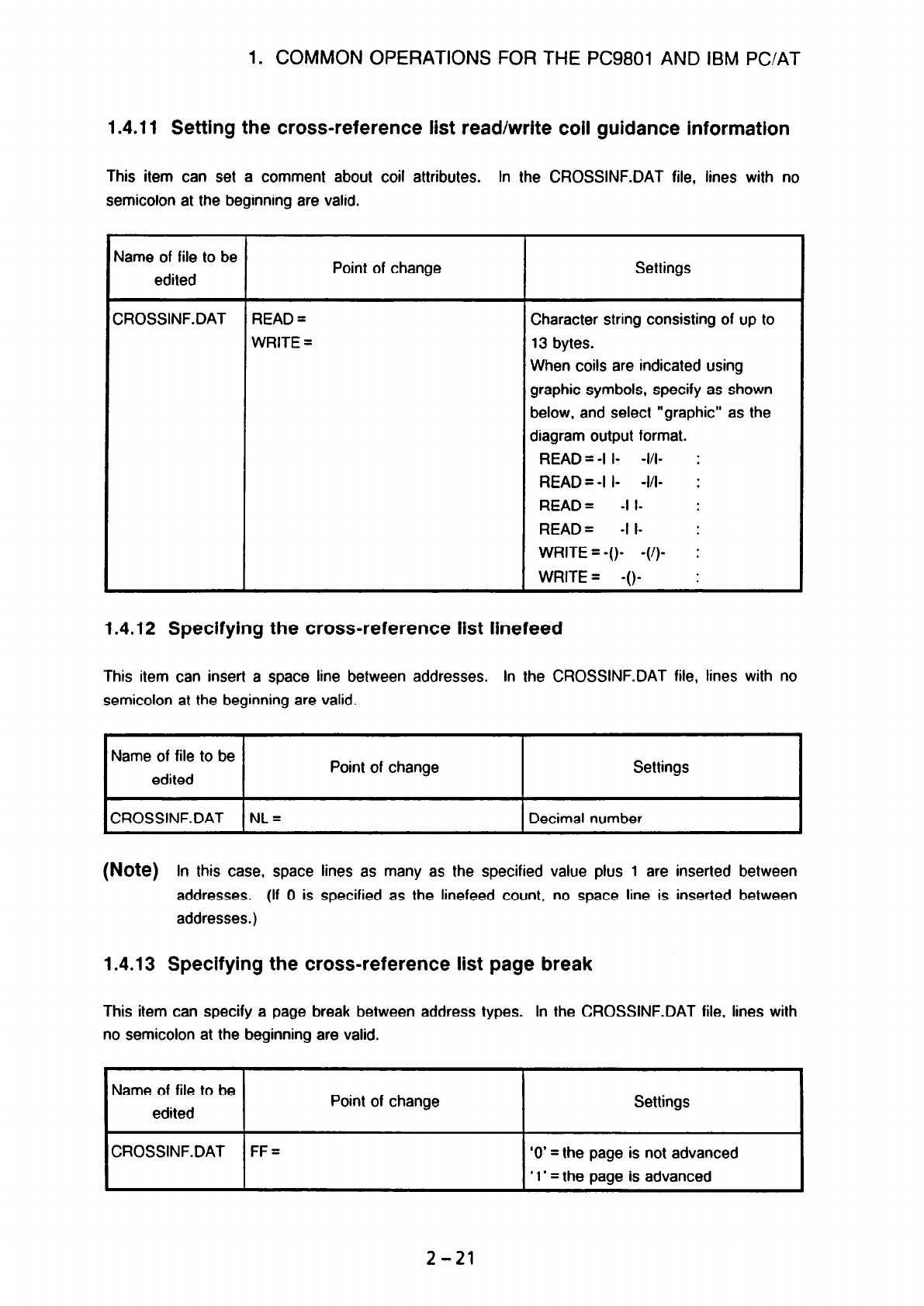

1. COMMON OPERATIONS FOR THE PC9801 AND IBM PC/AT

1.4.11 Setting the cross-reference list read/write coil guidance information

This item can set a comment about coil attributes.

In the CROSSINF.DAT file, lines with no

semicolon at the beginning are valid.

Vame of file to be

edited

Point of change

Settings

XOSSINF.DAT

READ = Character string consisting of up to

WRITE =

13 bytes.

When coils are indicated using

graphic symbols, specify as shown

below, and select “graphic” as the

diagram output format.

READ = -I I- -l/l-

READ =

-I I- :

READ =

-I I- :

WRITE = -()- -(/)-

WRITE = -()-

1.4.12 Specifying the cross-reference list linefeed

This item can insert a space line between addresses.

In the CROSSINF.DAT file, lines with no

semicolon at the beginning are valid.

Name of file to be

edited

Point of change

CROSSINF.DAT 1 NL =

Decimal number

(Note) In this case, space lines as many as the specified value plus 1 are inserted between

addresses. (If 0 is specified as the linefeed count, no space line is inserted between

addresses.)

1.4.13 Specifying the cross-reference list page break

This item can specify a page break between address types. In the CROSSINF.DAT file, lines with

no semicolon at the beginning are valid.

Name of file to be

edited

Point of change

Settings

:ROSSINF.DAT FF =

‘0’ = the page is not advanced

‘1’ = the page is advanced

2-21
