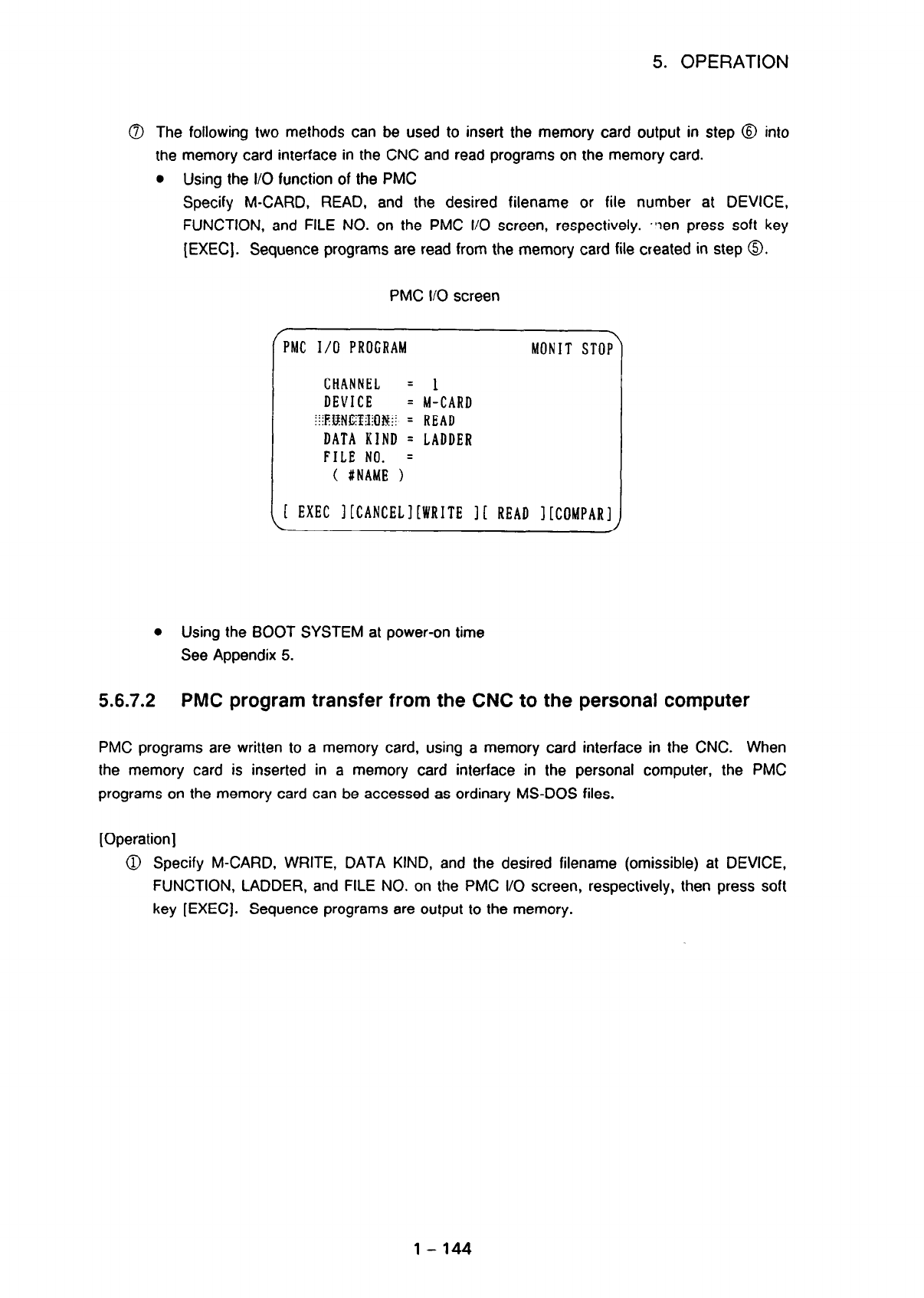

5. OPERATION

0 The following two methods can be used to insert the memory card output in step @ into

the

memory card interface in the CNC and read programs on the memory card.

Using the I/O function of the PMC

Specify M-CARD, READ, and the desired filename or file number at DEVICE,

FUNCTION, and FILE NO. on the PMC l/O screen, respectively. “7en press soft key

[EXECJ. Sequence programs are read from the memory card file created in step 0.

PMC 110 screen

PMC I/O PROGRAM

CHANNEL = 1

DEVICE

= M-CARD

~;~~J..~~~Ij-j~;~ = READ

DATA KIND = LADDER

FILE NO. q

( #NAME )

MONIT STOP

I EXEC I [CANCEL] [WRITE I[ READ l[COMPARI

l Using the BOOT SYSTEM at power-on time

See Appendix 5.

5.6.7.2 PMC program transfer from the CNC to the personal computer

PMC programs are written to a memory card, using a memory card interface in the CNC. When

the memory card is inserted in a memory card interface in the personal computer, the PMC

programs on the memory card can be accessed as ordinary MS-DOS files.

[Operation]

0 Specify M-CARD, WRITE, DATA KIND, and the desired filename (omissible) at DEVICE,

FUNCTION, LADDER, and FILE NO. on the PMC I/O screen, respectively, then press soft

key [EXEC]. Sequence programs are output to the memory.

l-144
