5. OPERATION

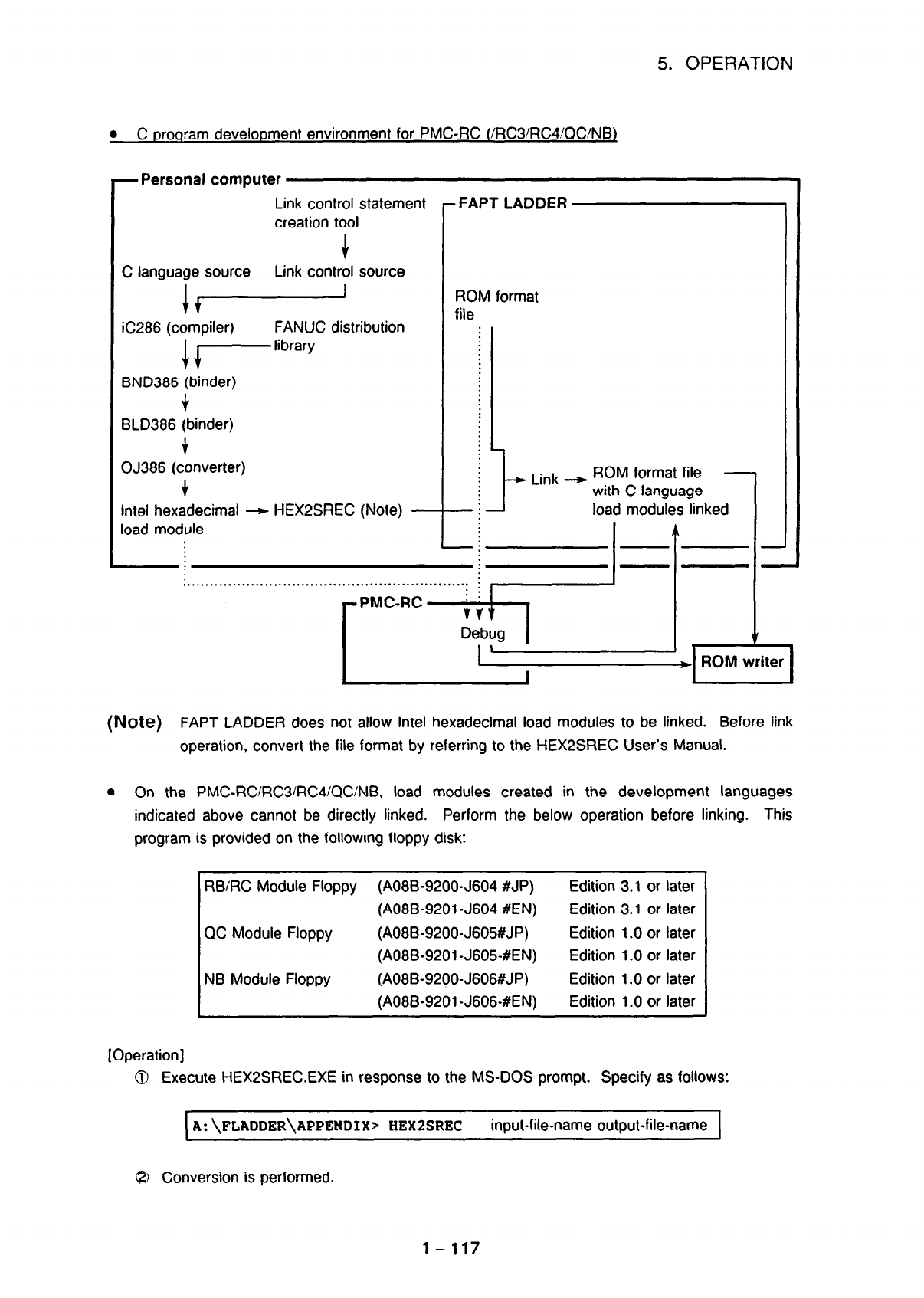

l C oroqram development environment for PMC-RC (RC3!RCWQC!NB)

-Personal computer

Link control statement

creation tool

C language source

Link control source

J-Y

iC286 (compiler)

FANUC distribution

1 -library

BND386 (binder)

BLD386 (binder)

0J386 (converter)

Intel hexadecimal - HEX2SREC (Note) -

load module

ROM format

file

Link _ ROM format file -

with C language

load modules linked

I t

FAPT LADDER

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PMC_RC

’ i I

vv$

(Note) FAPT LADDER does not allow Intel hexadecimal load modules to be linked. Before link

operation, convert the file format by referring to the HEX2SREC User’s Manual.

l On the PMCRCIRC3IRC4IQC/NB, load modules created in the development languages

indicated above cannot be directly linked. Perform the below operation before linking. This

program is provided on the following floppy disk:

RBiRC Module Floppy

(A08B-9200-J604 #JP)

Edition 3.1 or later

(A08B-9201 -J604 #EN) Edition 3.1 or later

QC Module Floppy (A08B-9200-J605#JP)

Edition 1.0 or later

(A08B-9201 -J605-#EN)

Edition 1.0 or later

NB Module Floppy (A08B-9200-J606#JP)

Edition 1.0 or later

(A08B-9201 -J606-#EN)

Edition 1.0 or later

[Operation]

0 Execute HEX2SREC.EXE in response to the MS-DOS prompt. Specify as follows:

A:\FLADDER\APPENDIX, HEXZSREC input-file-name output-file-name

8 Conversion is performed.

1-117
