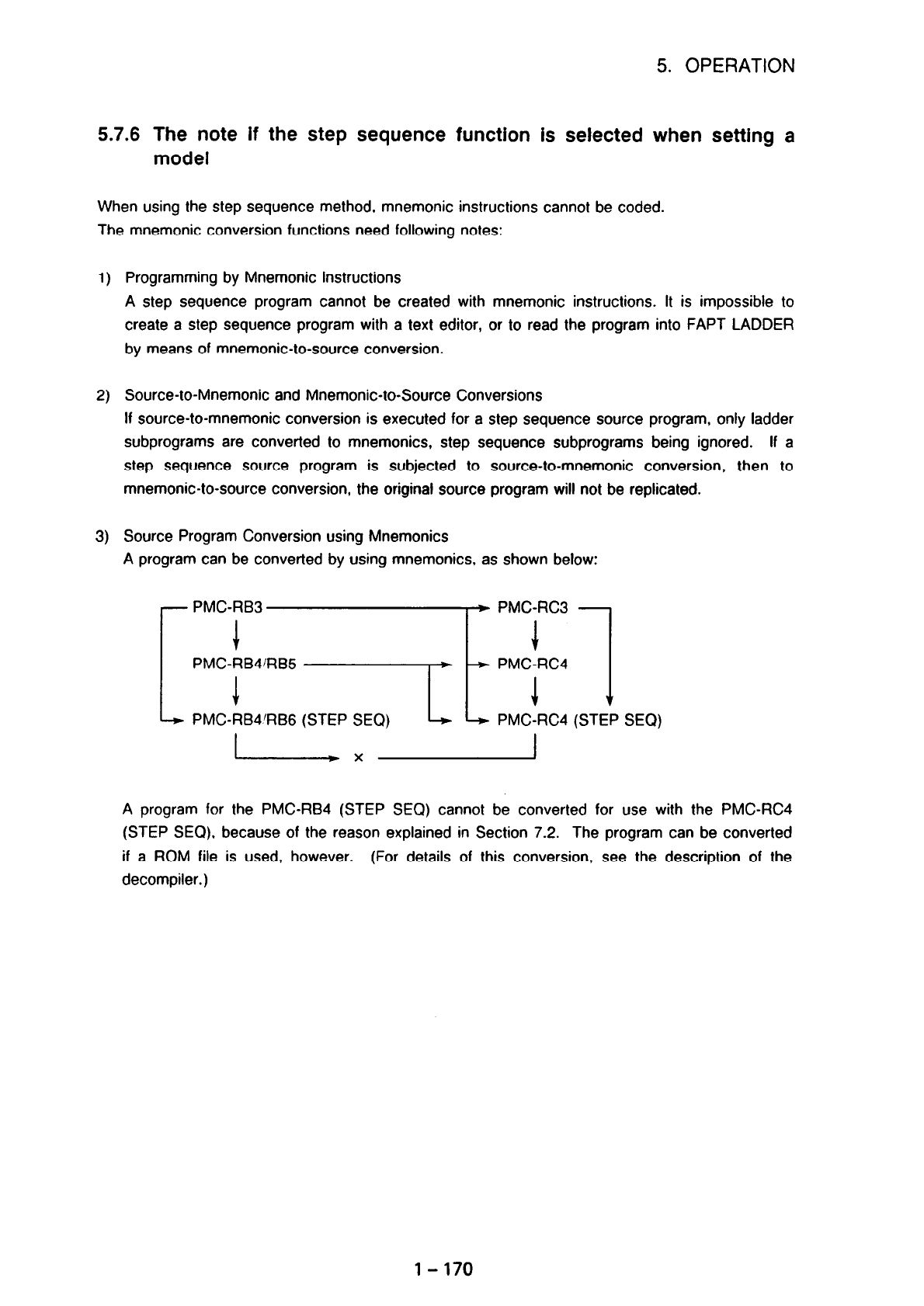

5. OPERATION

5.7.6 The note if the step sequence function is selected when setting a

model

When using the step sequence method, mnemonic instructions cannot be coded.

The mnemonic conversion functions need following notes:

Programming by Mnemonic instructions

A step sequence program cannot be created with mnemonic instructions. It is impossible to

create a step sequence program with a text editor, or to read the program into FAPT LADDER

by means of mnemonic-to-source conversion.

Source-to-Mnemonic and Mnemonic-to-Source Conversions

If source-to-mnemonic conversion is executed for a step sequence source program, only ladder

subprograms are converted to mnemonics, step sequence subprograms being ignored. If a

step sequence source program is subjected to source-to-mnemonic conversion, then to

mnemonic-to-source conversion, the original source program will not be replicated.

Source Program Conversion using Mnemonics

A program can be converted by using mnemonics, as shown below:

I PMC-RB3

, * PMCRC3

(STEP SEQ)

A program for the PMC-FIB4 (STEP SEC?) cannot be converted for use with the PMCRC4

(STEP SEC), because of the reason explained in Section 7.2. The program can be converted

if a ROM file is used, however. (For details of this conversion, see the description of the

decompiler.)

l-170
