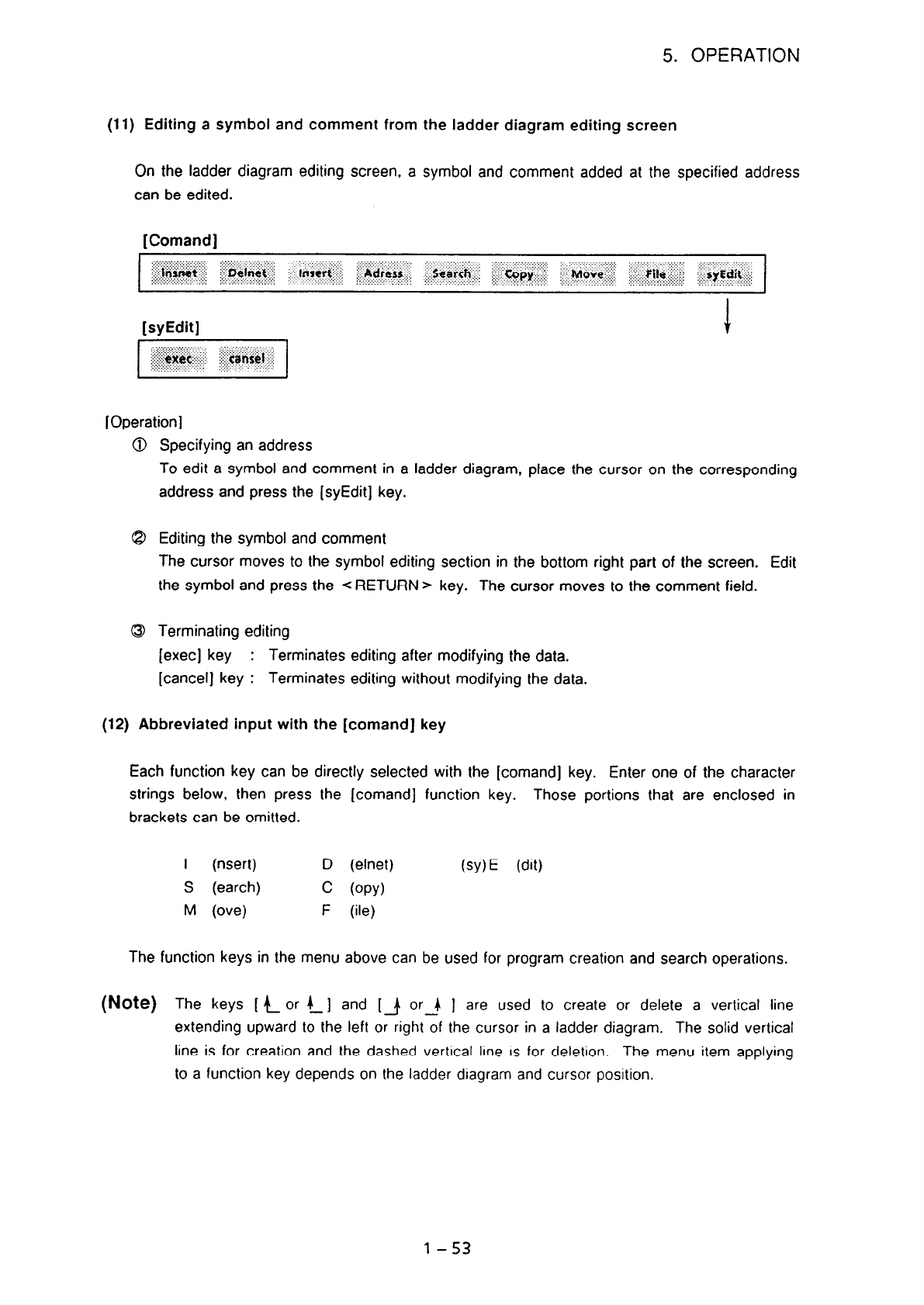

FAPT Ladder for PC Operators manual Page 60

Operators manual
5. OPERATION
(11) Editing a symbol and comment from the ladder diagram editing screen
On the ladder diagram editing screen, a symbol and comment added at the specified address
can be edited.
[Comand]
[syEdit]
1
I
::,Y;~y~r”::~:~ .:
~~:;~::;:‘::: i:.,:,:j ::
:ig:::iexee+::
..I. .?. .A. . .
. .
,.,., .,.,. ,:
aiijans~l, j 3
: . . . .
I
[Operation]
Specifying an address
To edit a symbol and comment in a ladder diagram, place the cursor on the corresponding
address and press the (syEdit] key.
Editing the symbol and comment
The cursor moves to the symbol editing section in the bottom right part of the screen. Edit
the symbol and press the <RETURN > key. The cursor moves to the comment field.
Terminating editing
(exec] key
: Terminates editing after modifying the data.
[cancel] key :
Terminates editing without modifying the data.
(12) Abbreviated input with the [cornand] key
Each function key can be directly selected with the [comand] key. Enter one of the character
strings below, then press the [comand] function key.
Those portions that are enclosed in
brackets can be omitted.
I (nsert) D (elnet)
(SY) E NW
S (earth)
c (OPY)
M (ove)
F (ile)
The function keys in the menu above can be used for program creation and search operations.
(Note) The keys [ k or L ] and [J orJ ] are used to create or delete a vertical line
extending upward to the left or right of the cursor in a ladder diagram. The solid vertical
line is for creation and the dashed vertical line IS for deletion. The menu item applying
to a function key depends on the ladder diagram and cursor position.
l-53
