FAPT Ladder for PC Operators manual Page 287

Operators manual

Page of 311

/ 311

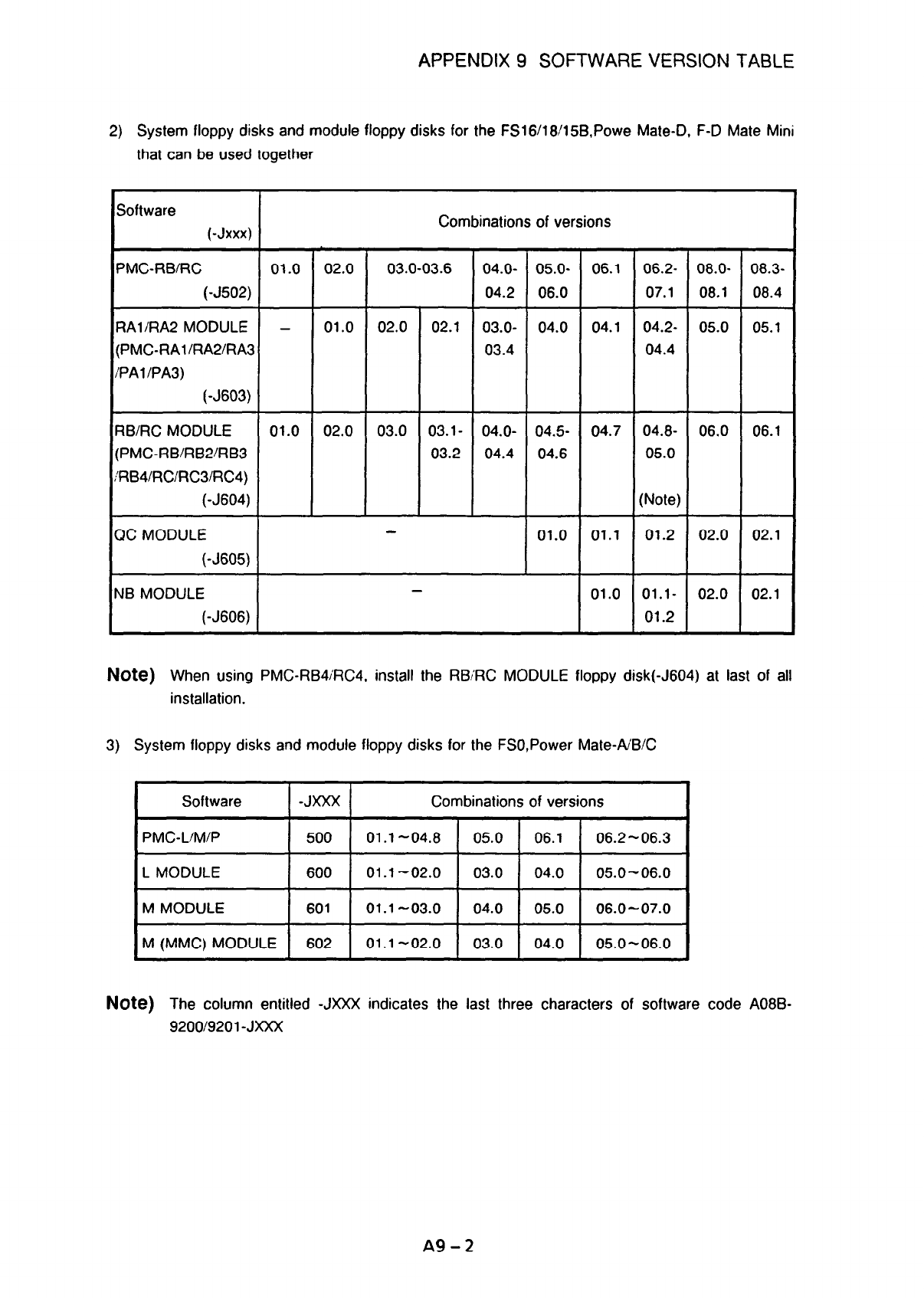

APPENDIX 9 SOFTWARE VERSION TABLE

2) System floppy disks and module floppy disks for the FS16/18/15B,Powe Mate-D, F-D Mate Mini

that can be used together

software

(-Jxxx)

Combinations of versions

‘MC-RB/RC 01.0 02.0 03.0-03.6 04.0- 05.0- 06.1 06.2- 08.0- 08.3-

(-J502) 04.2 06.0 07.1 08.1 08.4

?Al/RA2 MODULE - 01.0 02.0 02.1 03.0- 04.0 04.1 04.2- 05.0 05.1

PMCRAl/RA2/RA3 03.4 04.4

PA1 /PA3)

(-J603)

IB/RC MODULE 01.0 02.0 03.0 03.1- 04.0- 04.5 04.7 04.8- 06.0 06.1

PMCRB/RB2/RB3 03.2 04.4 04.6 05.0

164/RC/RC3/RC4)

(-J604) (Note)

1C MODULE 01.0 01.1 01.2 02.0 02.1

(-J605)

JB MODULE 01.0 Ol.l- 02.0 02.1

(-J606) 01.2

Note) When using PMCRB4iRC4, install the RBI’RC MODULE floppy disk(-J604) at last of all

installation.

System floppy disks and module floppy disks for the FSO,Power Mate-ABC

Software

I -J* I

Combinations of versions

PMC-L/M/P 500 01 .l -04.8 05.0 06.1 06.2 -06.3

L MODULE 600 01.1-02.0 03.0 04.0 05.0-06.0

M MODULE 601 01.1-03.0 04.0 05.0 06.0 -07.0

M (MMC) MODULE 602 01 .l -02.0 03.0 04.0 05.0-06.0

Note) The column entitled -JXXX indicates the last three characters of software code A08B-

9200/9201 -JXXX

A9-2
