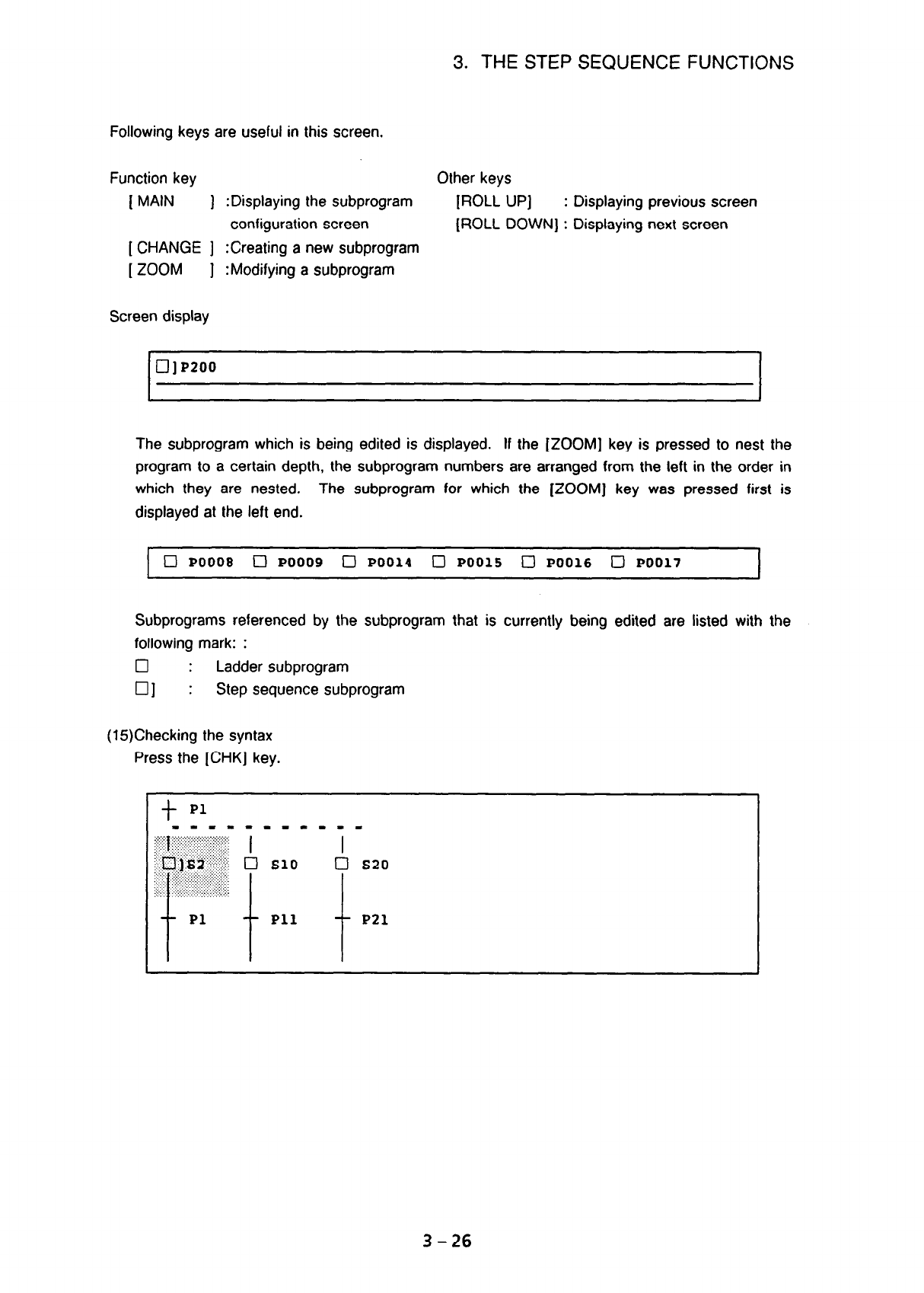

3. THE STEP SEQUENCE FUNCTIONS

Following keys are useful in this screen.

Function key

Other keys

[ MAIN

] :Displaying the subprogram

[ROLL UP]

: Displaying previous screen

configuration screen

[ROLL DOWN] : Displaying next screen

[ CHANGE ] :Creating a new subprogram

[ ZOOM

] :Modifying a subprogram

Screen display

q ]P200

The subprogram which is being edited is displayed. If the [ZOOM] key is pressed to nest the

program to a certain depth, the subprogram numbers are arranged from the left in the order in

which they are nested.

The subprogram for which the [ZOOM] key was pressed first is

displayed at the left end.

( 0 PO008 0 PO009 [I3 PO014 0 PO015 0 PO016 q PO017

Subprograms referenced by the subprogram that is currently being edited are listed with the

following mark: :

cl :

Ladder subprogram

cl] :

Step sequence subprogram

(15)Checking the syntax

Press the [CHK] key.

.;:.(.‘:.:.:.:.~:.~::::::::::,

gqc.

:.::.:::,:::I:.‘:,:,::::....:.

j:,..., :.:7 ./.

;-,~:il~:~:~~ ;,.,; ::~...,.,.:

0 s 1

0 s20

:,t-ll~~ t

Pll P21
