FAPT Ladder for PC Operators manual Page 133

Operators manual

Page of 311

/ 311

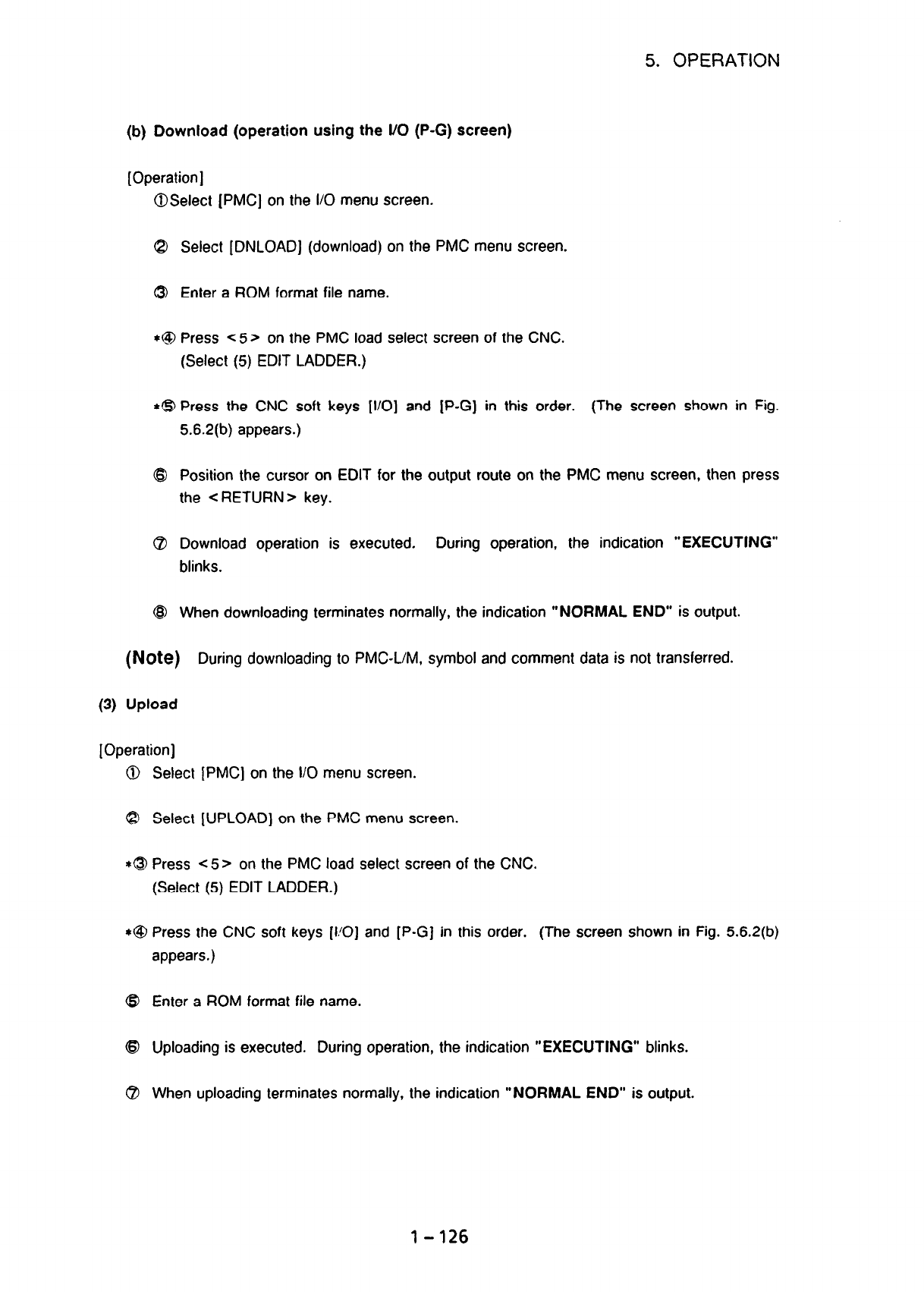

5. OPERATION

(b) Download (operation using the l/O (P-G) screen)

[Operation]

@Select [PMC] on the I/O menu screen.

8 Select [DNLOADJ (download) on the PMC menu screen.

8 Enter a ROM format file name.

*@ Press < 5 > on the PMC load select screen of the CNC.

(Select (5) EDIT LADDER.)

*@ Press the CNC soft keys [l/O] and [P-G] in this order. (The screen shown in Fig.

5.6.2(b) appears.)

451 Position the cursor on EDIT for the output route on the PMC menu screen, then press

the <RETURN> key.

@ Download operation is executed. During operation, the indication “EXECUTING”

blinks.

@I When downloading terminates normally, the indication “NORMAL END” is output.

(Note)

During downloading to PMC-L/M, symbol and comment data is not transferred.

(3) Upload

[Operation]

0 Select [PMC] on the I/O menu screen.

@ Select [UPLOAD] on the PMC menu screen.

*a Press <5> on the PMC load select screen of the CNC.

(Select (5) EDIT LADDER.)

*@ Press the CNC soft keys [VO] and [P-G] in this order. (The screen shown in Fig. 5.6.2(b)

appears.)

@ Enter a ROM format file name.

@ Uploading is executed. During operation, the indication “EXECUTING” blinks.

Q When uploading terminates normally, the indication “NORMAL END” is output.

l-126
