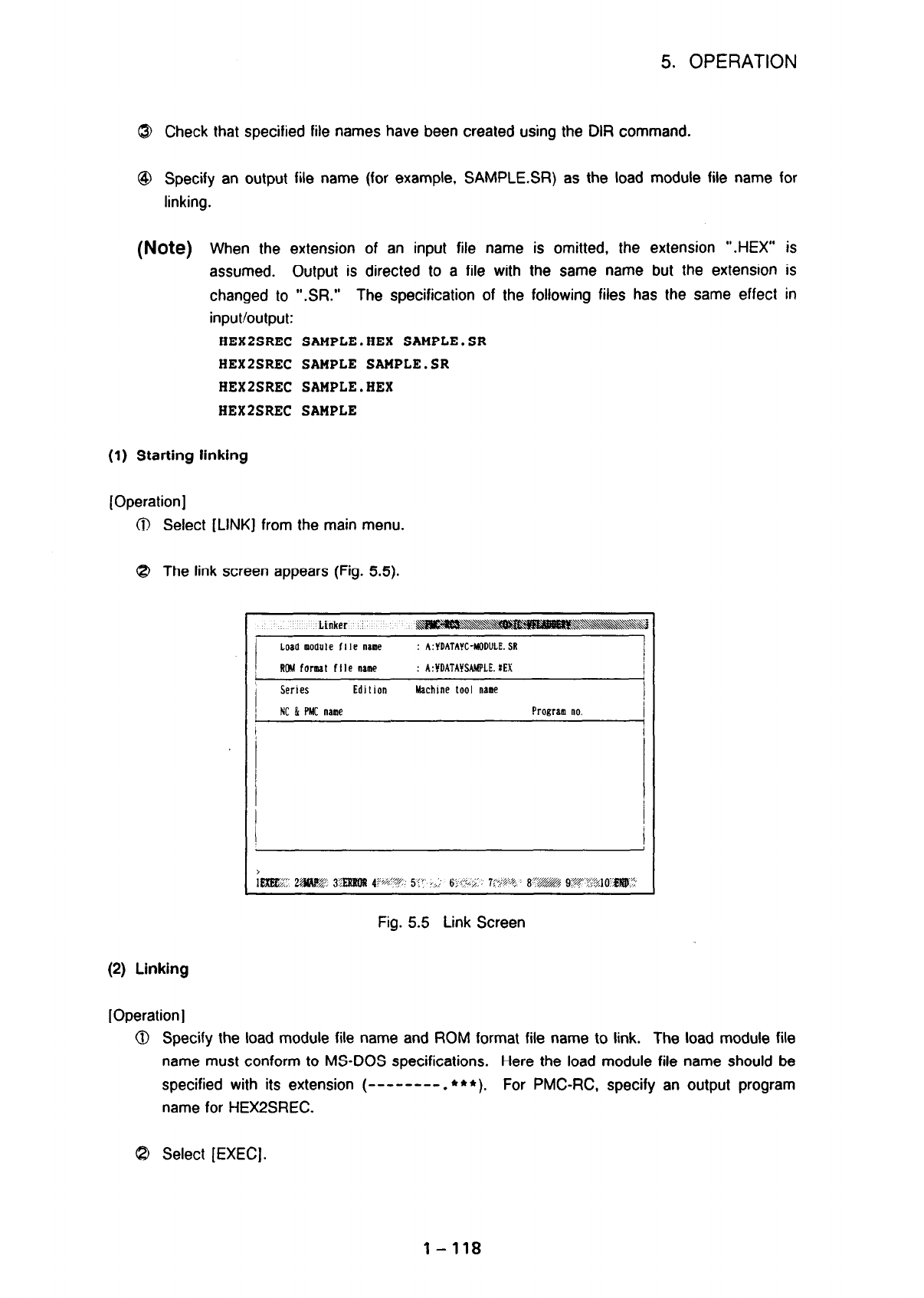

5. OPERATION

@ Check that specified file names have been created using the DIR command.

@ Specify an output file name

linking.

(for example. SAMPLE.%) as the load

module file name for

(Note) When the extension

of an input file name is omitted, the

extension

“.HEX” is

assumed. Output is

directed to a file with the same name

but the extension is

changed to “SR.”

The specification of the following files has the same effect in

input/output:

HEXZSREC SAMPLE.HEX SAMPLE.SR

HEX2SREC SAMPLE SAHPLE.SR

HEXZSREC SAMPLE.HEX

HEXZSREC SAMPLE

(1) Starting linking

(Operation]

@I Select [LINK] from the main menu.

8 The link screen appears (Fig. 5.5).

Load module file name

ROM format file name

: A:YDATAYC-MODULE. SR

: A:YDATAYSAMPLE. #EK

Series

Edition Machine tool name

NC & PMC name

Program no.

Fig. 5.5 Link Screen

(2) Linking

[Operation]

@ Specify the load module file name and ROM format file name to link. The load module file

name must conform to MS-DOS specifications. Here the load module file name should be

specified with its extension (--------.

l **). For PMC-RC, specify an output program

name for HEX2SREC.

8 Select [EXEC].

1-118
