5. OPERATION

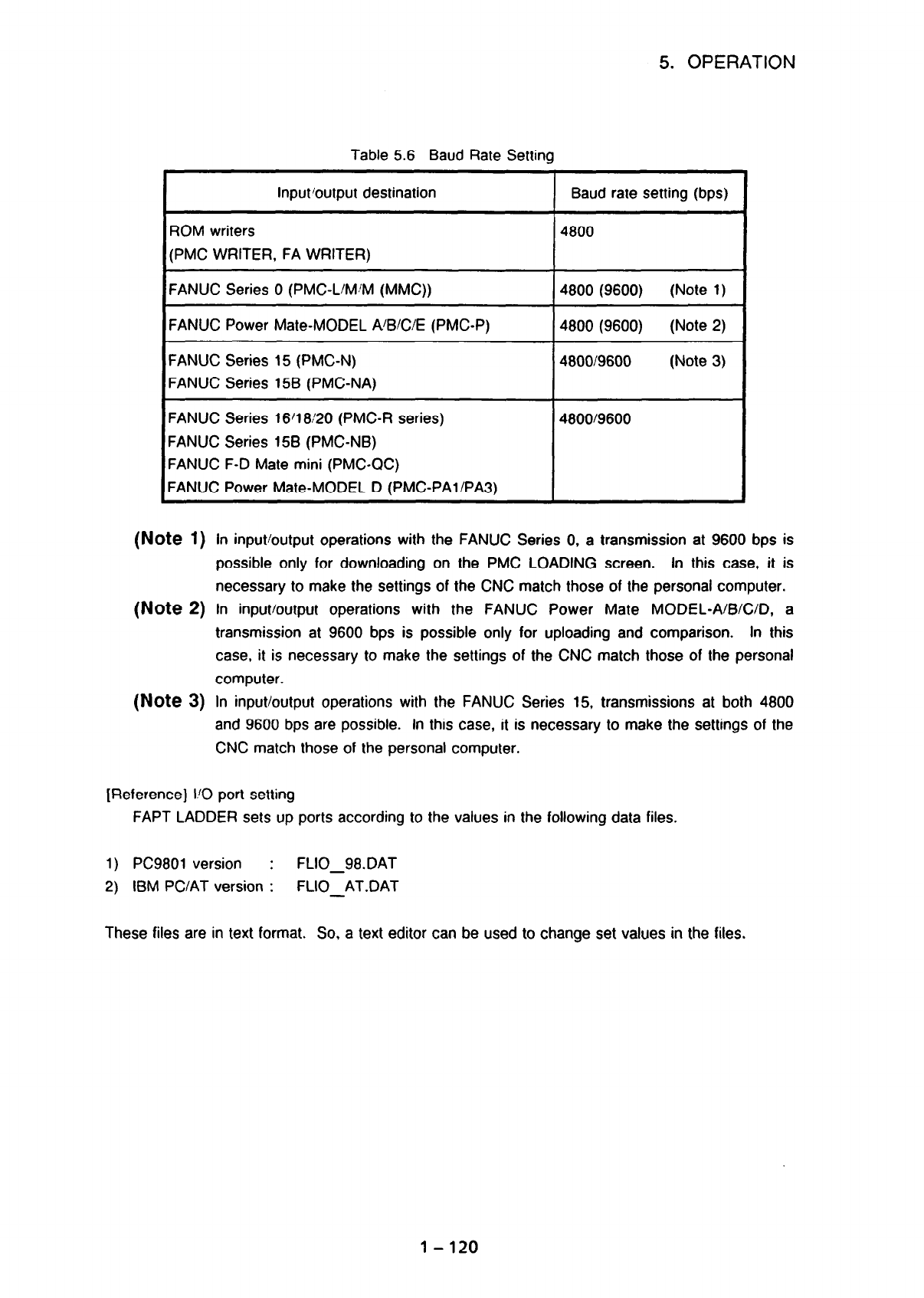

Table 5.6 Baud Rate Setting
Input/output destination
ROM writers
(PMC WRITER, FA WRITER)
Baud rate setting (bps)
4800
FANUC Series 0 (PMC-L/M!M (MMC))
FANUC Power Mate-MODEL A/B/C/E (PMC-P)
FANUC Series 15 (PMC-N)
FANUC Series 158 (PMC-NA)
4800 (9600) (Note 1)
4800 (9600)
(Note 2)
480019600
(Note 3)
FANUC Series 16/18!20 (PMC-R series)
FANUC Series 15B (PMC-NB)
FANUC F-D Mate mini (PMC-QC)
FANUC Power Mate-MODEL D (PMCPAl/PA3)
4800/9600
(Note 1)
(Note 2)
(Note 3)
In input/output operations with the FANUC Series 0. a transmission at 9600 bps is
possible only for downloading on the PMC LOADING screen. In this case, it is
necessary to make the settings of the CNC match those of the personal computer.
In input/output operations with the FANUC Power Mate MODEL-A/B/C/D, a
transmission at 9600 bps is possible only for uploading and comparison. In this
case, it is necessary to make the settings of the CNC match those of the personal
computer.
In input/output operations with the FANUC Series 15, transmissions at both 4800
and 9600 bps are possible. In this case, it is necessary to make the settings of the
CNC match those of the personal computer.
[Reference] I!0 port setting
FAPT LADDER sets up ports according to the values in the following data files.
1) PC9801 version :
FLIO 98.DAT
2) IBM PC/AT version :
FLIO-AT.DAT
-
These files are in text format. So, a text editor can be used to change set values in the files.
