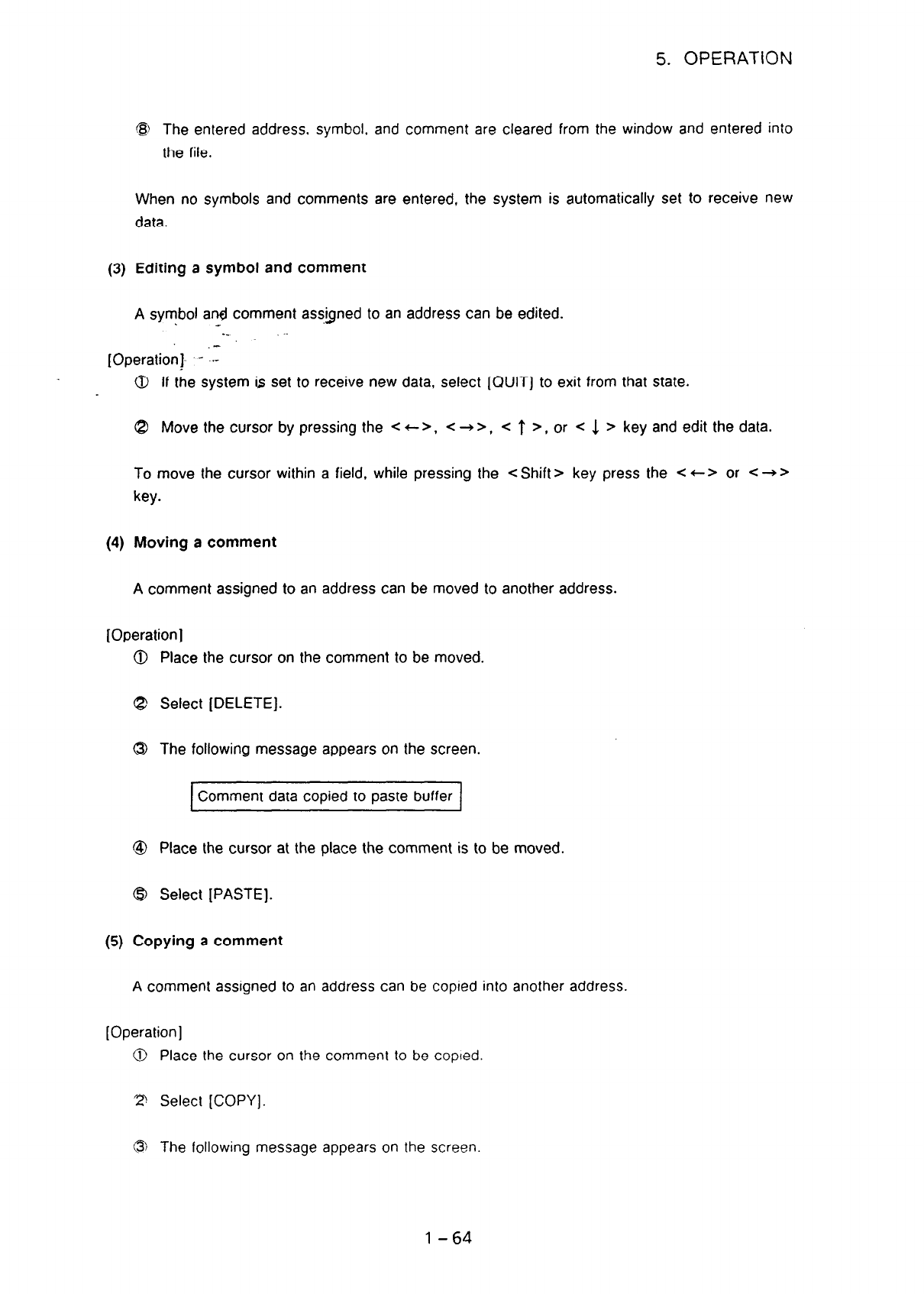

5. OPERATION

@ The entered address, symbol, and comment are cleared from the window and entered into

the file.

When no symbols and comments are entered, the system is automatically set to receive new

data.

(3) Editing a symbol and comment

A symbol and comment assigned to an address can be edited.

-_ .-

[Operation]. - I

(4)

Moving a comment

@ If the system is set to receive new data, select [QUIT] to exit from that state.

8 Move the cursor by pressing the < c >,

<+>, < T >, or c 1 > key and edit the data.

To move the cursor within a field, while pressing the e Shift > key press the < cz- or e -+>

key.

A comment assigned to an address can be moved to another address.

[Operation]

Place the cursor on the comment to be moved.

Select [DELETE].

The following message appears on the screen.

1 Comment data copied to paste buffer 1

Place the cursor at the place the comment is to be moved.

Select [PASTE).

(5) Copying a comment

A comment assigned to an address can be copied into another address.

[Operation]

0 Place the cursor on the comment to be copied.

2 Select [COPY].

0 The following message appears on the screen.

l-64
