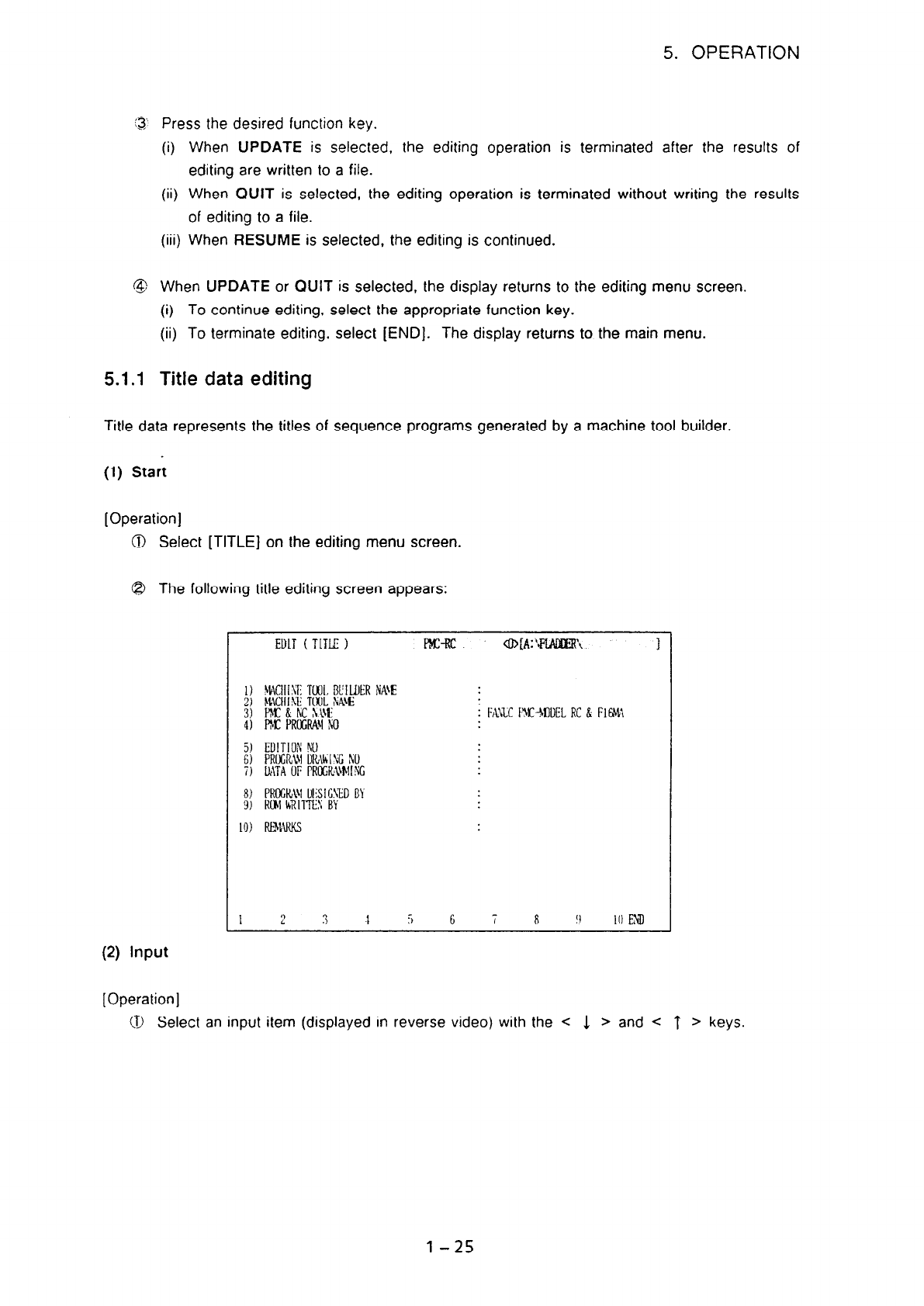

5. OPERATION

(3 Press the desired function key.

(i)

(ii)

(iii)

When UPDATE is selected, the editing operation is terminated after the results of

editing are written to a file.

When QUIT is selected, the editing operation is terminated without writing the results

of editing to a file.

When RESUME is selected, the editing is continued.

@ When UPDATE or QUIT is selected, the display returns to the editing menu screen.

(i)

To continue editing, select the appropriate function key.

(ii) To terminate editing, select [END]. The display returns to the main menu.

5.1.1 Title data editing

Title data represents the titles of sequence programs generated by a machine tool builder.

(1) Start

[Operation]

0 Select [TITLE] on the editing menu screen.

@ The following title editing screen appears:

(2) Input

EMT ( TITLE )

MI-is 6hfA:'ZtNXI%'\

: IXtLC i'41C-HNEL RC & FltNI

[Operation]

0 Select an input item (displayed in reverse video) with the < 1 > and <

1 > keys.

l-25
