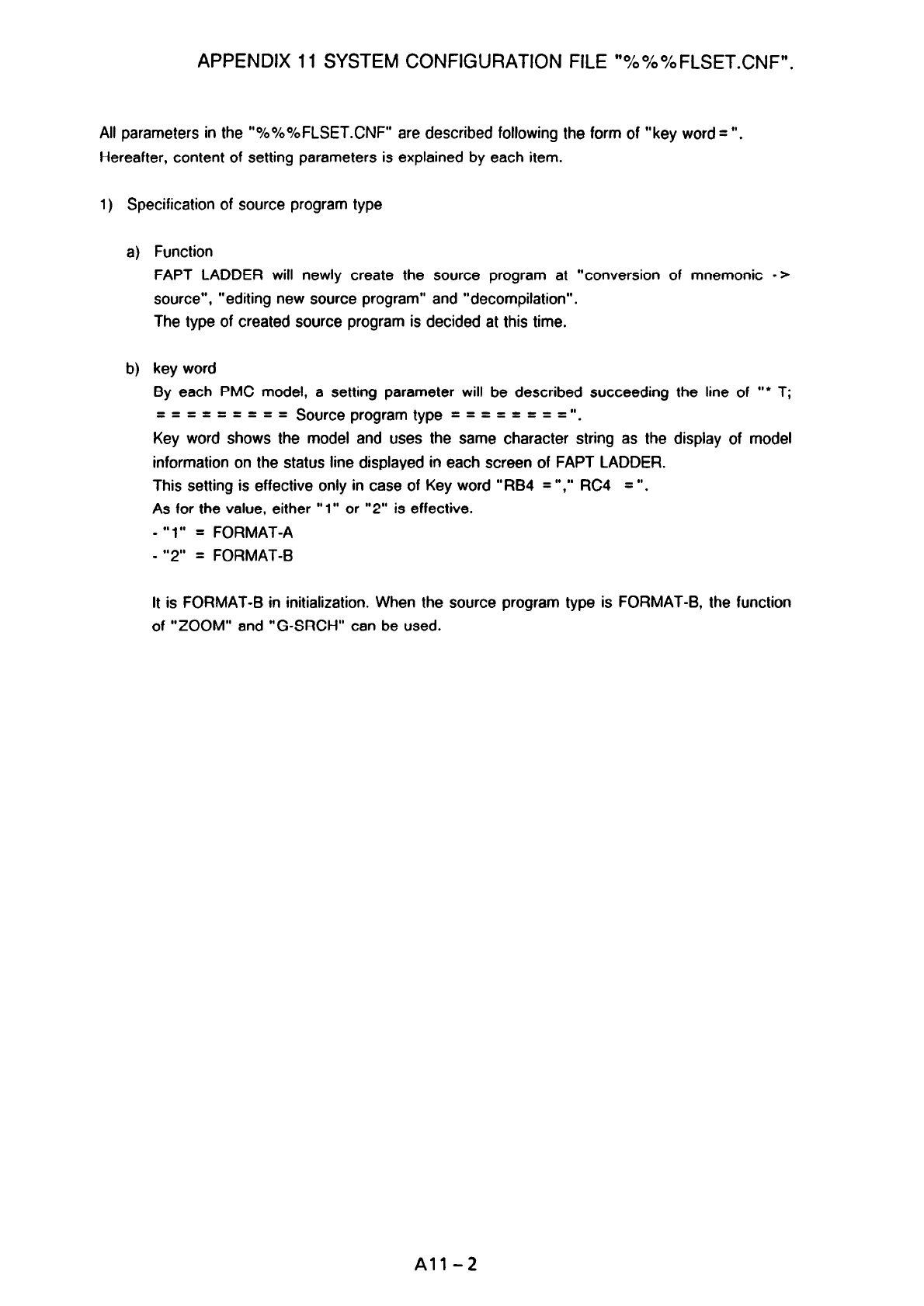

APPENDIX 11 SYSTEM CONFIGURATION FILE “%%% FLSET.CNF”.

All parameters in the “%%%FLSET.CNF” are described following the form of “key word = “.

Hereafter, content of setting parameters is explained by each item.

1) Specification of source program type

Function

FAPT LADDER will newly create the source program at “conversion of mnemonic ->

source”,

“editing new source program” and “decompilation”.

The type of created source program is decided at this time.

key word

By each PMC model, a setting parameter will be described succeeding the line of ‘I* T;

=========

Source program type = = = = = = = = “.

Key word shows the model and uses the same character string as the display of model

information on the status line displayed in each screen of FAPT LADDER.

This setting is effective only in case of Key word “RB4 = “,” RC4 = “.

As for the value, either "1" or “2” is effective.

_ .I w

1 = FORMAT-A

- “2”

= FORMAT-B

It is FORMAT-B in initialization. When the source program type is FORMAT-B, the function

of “ZOOM” and “G-SRCH” can be used.

All -2
