5. OPERATION

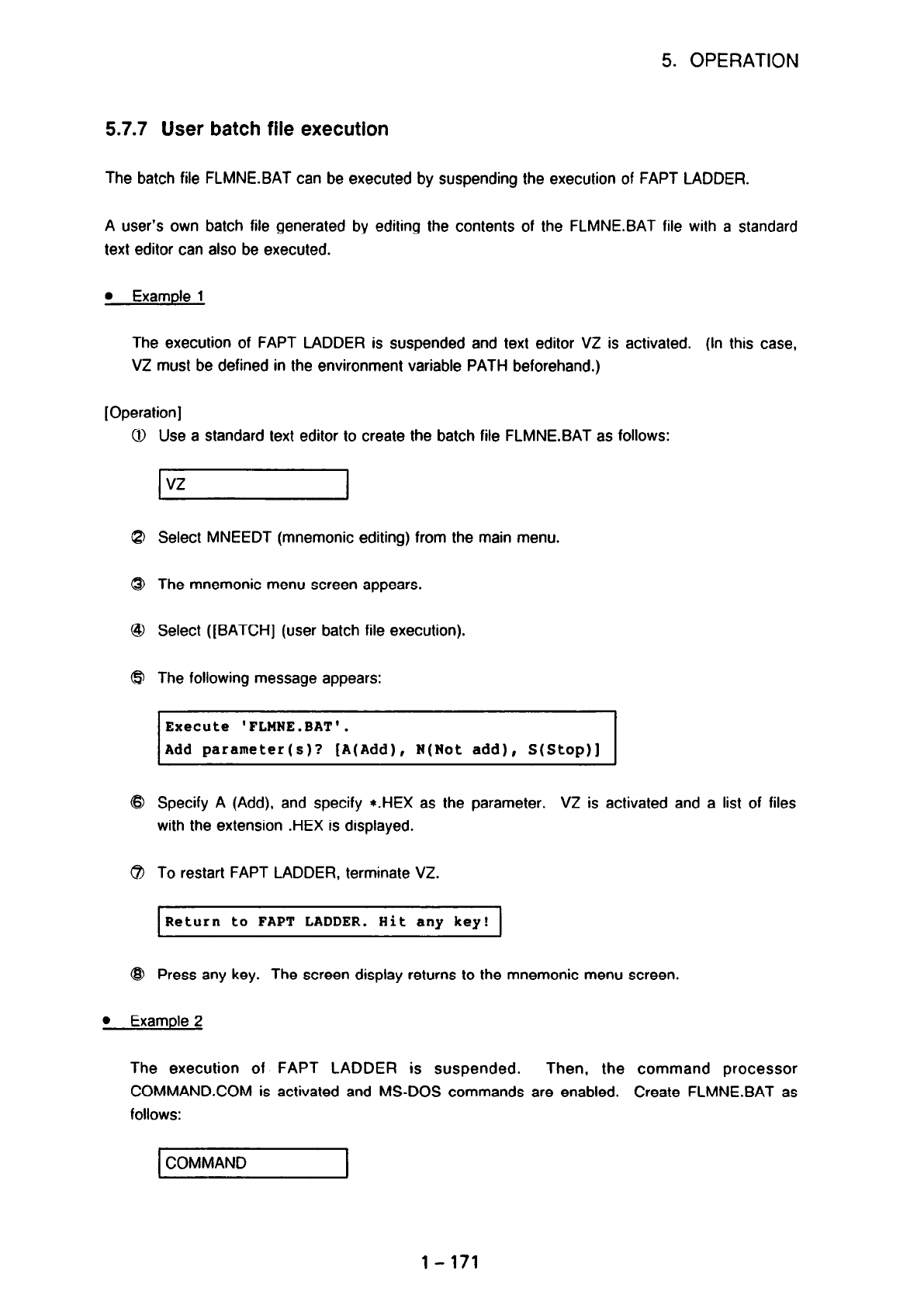

5.7.7 User batch file execution

The batch file FLMNE.BAT can be executed by suspending the execution of FAPT LADDER.

A user’s own batch file generated by editing the contents of the FLMNE.BAT file with a standard

text editor can also be executed.

l Examole 1

The execution of FAPT LADDER is suspended and text editor VZ is activated. (In this case,

VZ must be defined in the environment variable PATH beforehand.)

[Operation ]

Use a standard text editor to create the batch file FLMNEBAT as follows:

Select MNEEDT (mnemonic editing) from the main menu.

The mnemonic menu screen appears.

Select ([BATCH] (user batch file execution).

The following message appears:

Execute

'FLMNE.BAT'.

Add parameter(s)? [A(Add), N(Not add), S(Stop)]

Specify A (Add), and specify *.HEX as the parameter.

VZ is activated and a list of files

with the extension .HEX is displayed.

To restart FAPT LADDER. terminate VZ.

Return to FAPT LADDER. Hit any key!

Press any key. The screen display

returns to the mnemonic menu screen.

l Example 2

The execution of FAPT LADDER is suspended.

Then, the command processor

COMMAND.COM is activated and MS-DOS commands are enabled. Create FLMNE.BAT as

follows:

COMMAND

1 - 171
