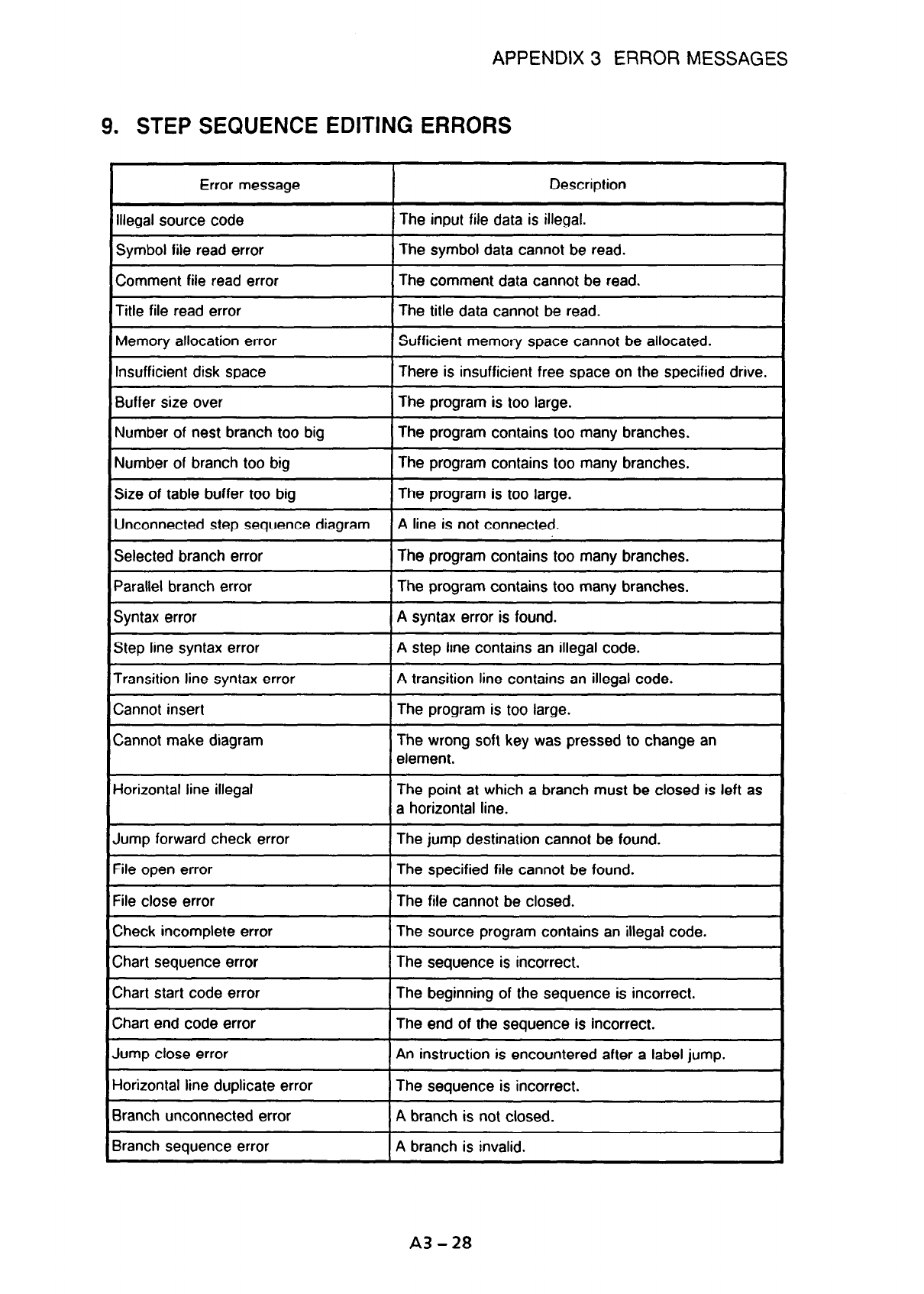

APPENDIX 3 ERROR MESSAGES

9. STEP SEQUENCE EDITING ERRORS

Error message

Illegal source code

Symbol file read error

Comment file read error

Title file read error

Memory allocation error

Insufficient disk space

Buffer size over

Number of nest branch too big

Number of branch too big

Size of table buffer too big

Unconnected step sequence diagram

Selected branch error

Parallel branch error

Syntax error

Step line syntax error

Transition line syntax error

Cannot insert

Cannot make diagram

Horizontal fine illegal

Description

The input file data is illegal.

The symbol data cannot be read.

The comment data cannot be read.

The title data cannot be read.

Sufficient memory space cannot be allocated.

There is insufficient free space on the specified drive.

The program is too large.

The program contains too many branches.

The program is too large.

A line is not connected.

The program contains too many branches.

A syntax error is found.

A step line contains an illegal code.

A transition line contains an illegal code.

The program is too large.

The wrong soft key was pressed to change an

element.

The point at which a branch must be closed is left as

a horizontal line.

Jump forward check error

The jump destination cannot be found.

File open error

The specified file cannot be found.

File close error The file cannot be closed.

Check incomplete error

The source program contains an illegal code.

Chart sequence error

The sequence is incorrect.

Chart start code error

The beginning of the sequence is incorrect.

Chart end code error

The end of the sequence is incorrect.

Jump close error

An instruction is encountered after a label jump.

-horizontal line duplicate error

The sequence is incorrect.

3ranch unconnected error

A branch is not closed.

3ranch sequence error

A branch is invalid.

A3-28
