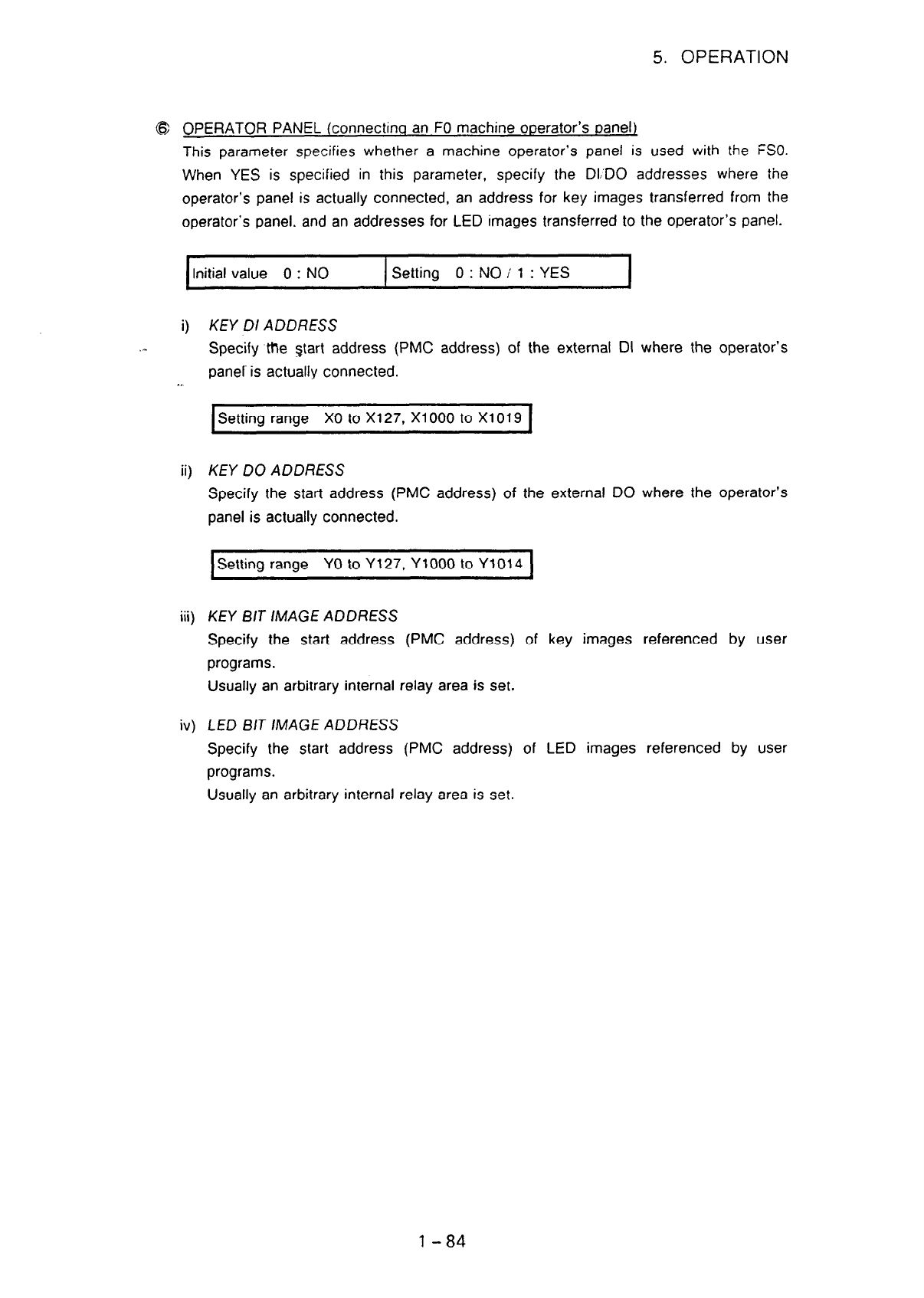

5. OPERATION

@ OPERATOR PANEL (connectinq an FO machine operator’s oanel)

This parameter specifies whether a machine operator’s panel is used with the FSO.

When YES is specified in this parameter, specify the Dt’DO addresses where the

operator’s panel is actually connected, an address for key images transferred from the

operator’s panel, and an addresses for LED images transferred to the operator’s panel.

Initial value 0 : NO Setting 0 : NO i 1 : YES

ii)

iii)

iv)

KEY DI ADDRESS

Specify the start address (PMC address) of the external Dl where the operator’s

panel’ is actually connected.

Setting range X0 to Xl 27,

Xl 000 to Xl 019

KEY DO ADDRESS

Specify the start address (PMC address) of the external DO where the operator’s

panel is actually connected.

Setting range YO to Y127, YlOOO to Y1014

KEY BIT IMAGE ADDRESS

Specify the start address (PMC address) of key images referenced by user

programs.

Usually an arbitrary internal relay area is set.

LED BIT IMAGE ADDRESS

Specify the start address (PMC address) of LED images referenced by user

programs.

Usually an arbitrary internal relay area is set.

l-84
