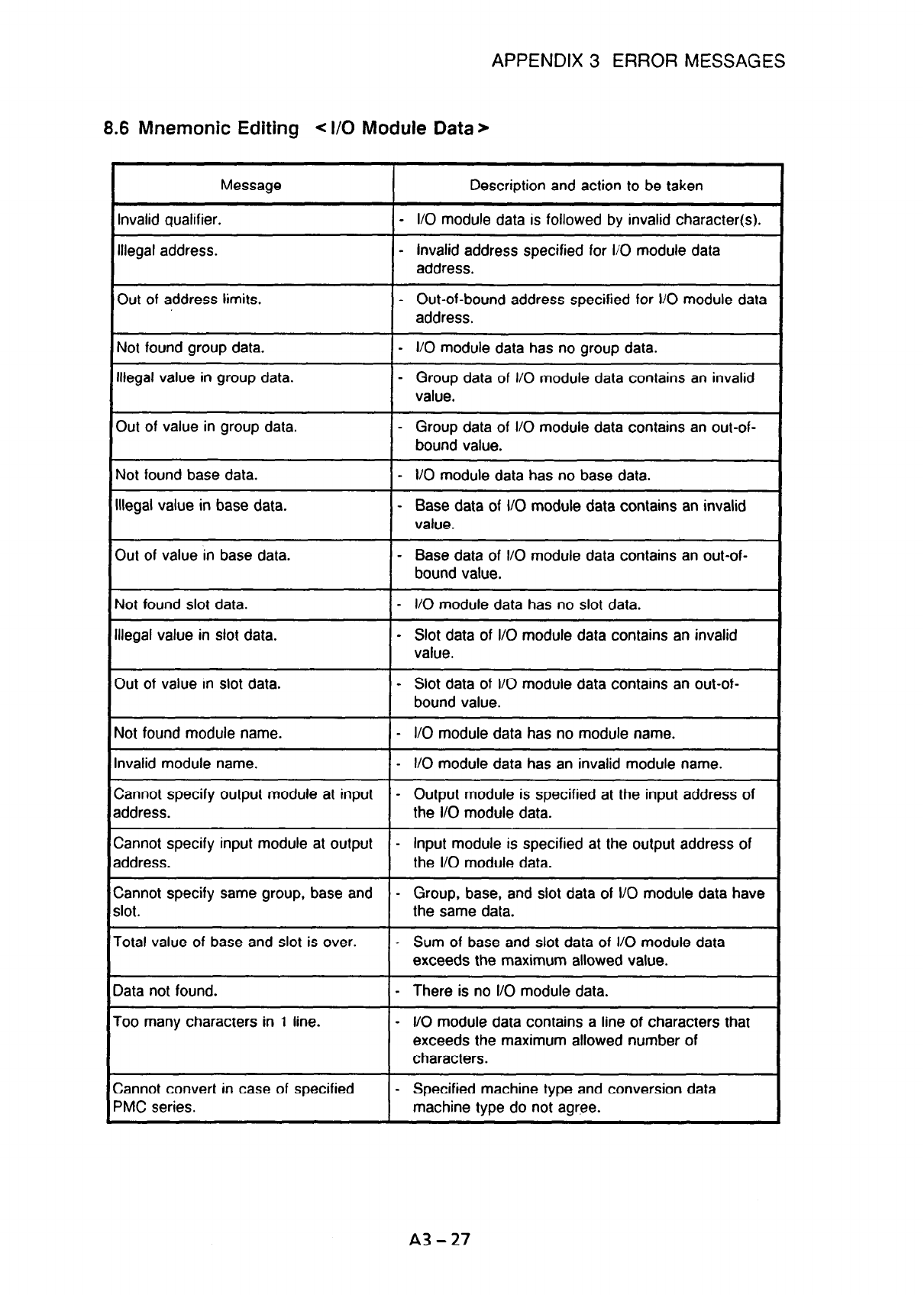

APPENDIX 3 ERROR MESSAGES

8.6 Mnemonic Editing <I/O Module Data>

Message

Invalid qualifier.

Illegal address.

Description and action to be taken

- I/O module data is followed by invalid character(s).

- Invalid address specified for l/O module data

address.

Out of address limits. - Out-of-bound address specified for I/O module data

address.

Not found group data.

Illegal value in group data.

- l/O module data has no group data.

- Group data of I/O module data contains an invalid

value.

Out of value in group data.

- Group data of I/O module data contains an out-of-

bound value.

Not found base data.

811egal value in base data.

- l/O module data has no base data.

- Base data of I/O module data contains an invalid

value.

Dut of value in base data. - Base data of l/O module data contains an out-of-

bound value.

Vat found slot data.

llegal value in slot data.

- I/O module data has no slot data.

- Slot data of l/O module data contains an invalid

value.

3ut of value in slot data. - Slot data of I/O module data contains an out-of-

bound value.

\lot found module name.

- I/O module data has no module name.

nvalid module name.

- I/O module data has an invalid module name.

Cannot specify output module at input

- Output module is specified at the input address of

Iddress.

the l/O module data.

Cannot specify input module at output

- Input module is specified at the output address of

address.

the I/O module data.

2annot specify same group, base and

- Group, base, and slot data of I/O module data have

;lot.

the same data.

rot.9 value of base and slot is over.

- Sum of base and slot data of I/O module data

exceeds the maximum allowed value.

Data not found.

Too many characters in 1 line.

- There is no I/O module data.

- I/O module data contains a line of characters that

exceeds the maximum allowed number of

characters.

2annot convert in case of specified

- Specified machine type and conversion data

‘MC series.

machine type do not agree.

A3-27
