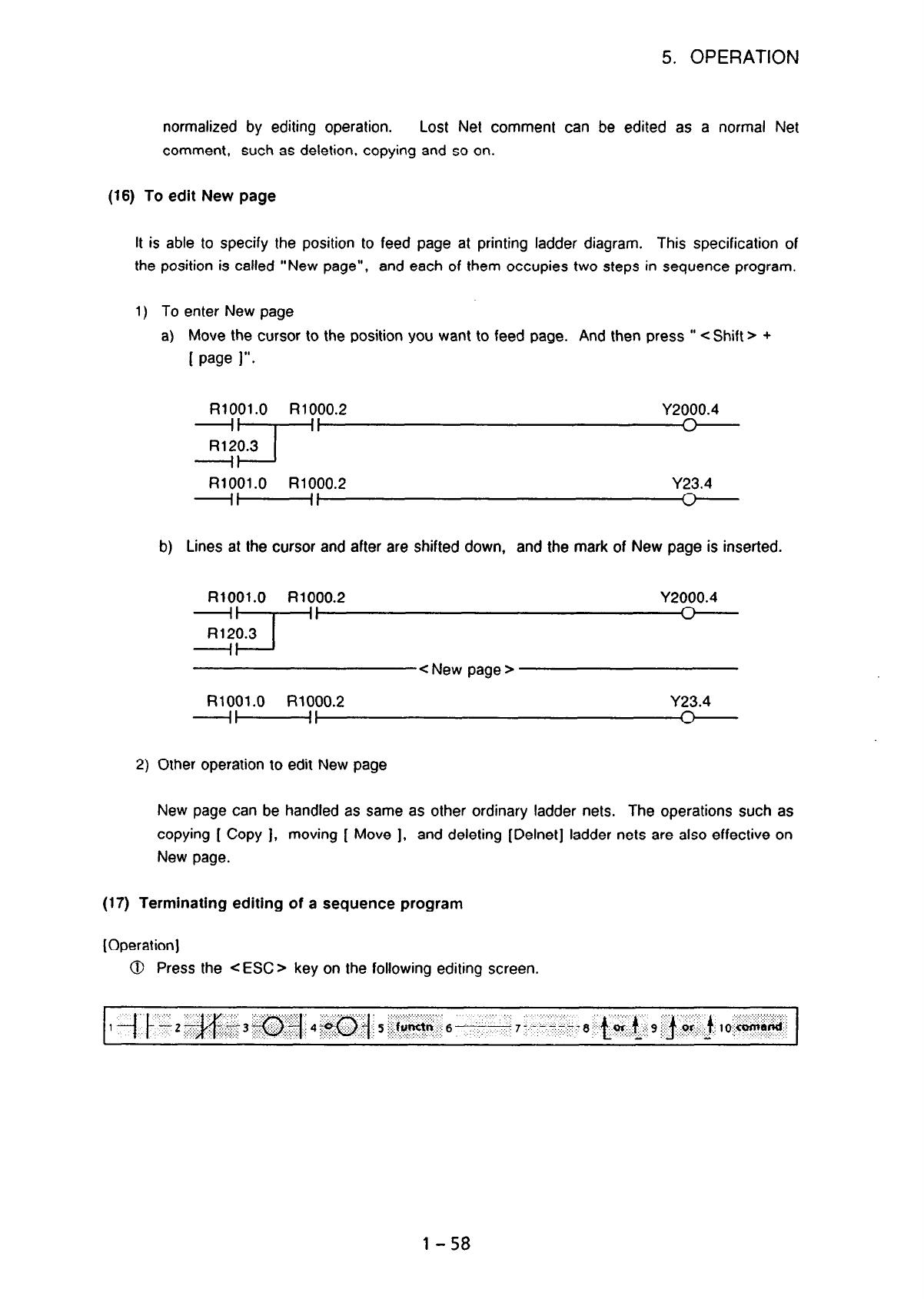

5. OPERATION

normalized by editing operation. Lost Net comment can be edited as a normal Net

comment, such as deletion, copying and so on.

(16) To edit New page

It is able to specify the position to feed page at printing ladder diagram. This specification of

the position is called “New page”,

and each of them occupies two steps in sequence program.

To enter New page

a) Move the cursor to the position you want to feed page. And then press ” -z Shift > +

I paw I”.

R1OO1.O R1000.2

Y2000.4

xl-+’

”

R120.3

R1OO1.O R1000.2

Y23.4

+Hf

b) Lines at the cursor and after are shifted down, and the mark of New page is inserted.

R1OO1.O R1000.2

Y2000.4

x-+

R120.3

R1OO1.O R1000.2

Y23.4

+HI

Other operation to edit New page

New page can be handled as same as other ordinary ladder nets. The operations such as

copying [ Copy 1, moving [ Move 1, and deleting [Delnet] ladder nets are also effective on

New page.

(17) Terminating editing of a sequence program

[Operation ]

@ Press the (ESC > key on the following editing screen.

l-58
