5. OPERATION

5.6.9

I.!0 ; FROM FDC.AS i

:::wc-Rc3 _\\ 1: ~ .,@ux%wm

.: ‘~_ \\\\,\...._ 1

READ (PROCRAWR <- Handy File !

Handy File FILE W.AME

: C:YSAW’LE. :SF

(Specify the floppy disk drive,

ROM FORUAT FILE NAUE

: A:YDATAYSAW’LE. PEX

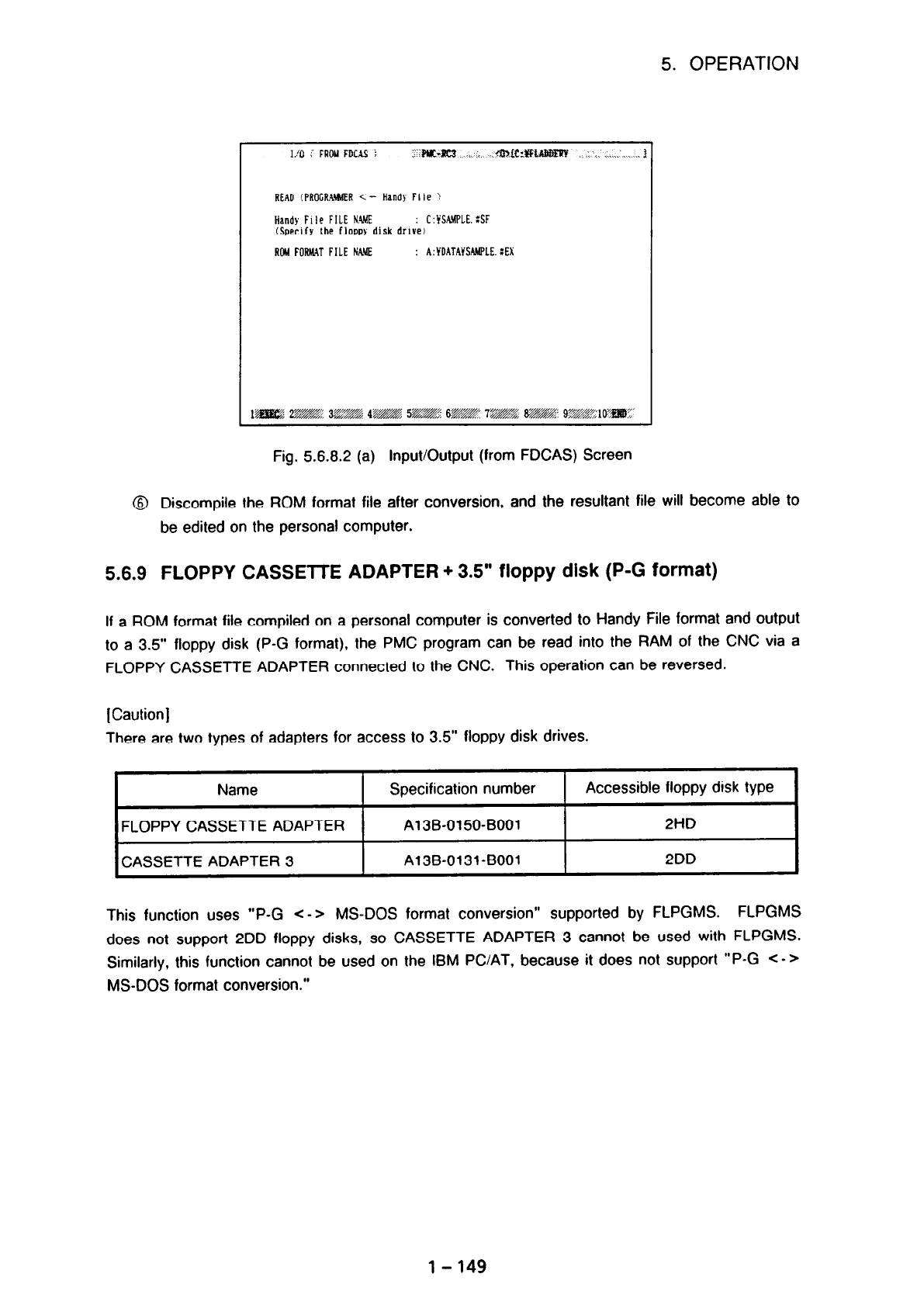

Fig. 5.6.8.2 (a) Input/Output (from FDCAS) Screen

Discompile the ROM format file after conversion, and the resultant file will become able to

be edited on the personal computer.

FLOPPY CASSETTE ADAPTER + 3.5” floppy disk (P-G format)

If a ROM format file compiled on a personal computer is converted to Handy File format and output

to a 3.6” floppy disk (P-G format), the PMC program can be read into the RAM of the CNC via a

FLOPPY CASSETTE ADAPTER connected to the CNC. This operation can be reversed.

(Caution]

There are two types of adapters for access to 3.5” floppy disk drives.

Name

Specification number

Accessible floppy disk type

FLOPPY CASSETTE ADAPTER

Al 38-01 SO-BOO1

2HD

CASSETTE ADAPTER3

A13B-0131-8001 2DD

This function uses “P-G <- > MS-DOS format conversion” supported by FLPGMS. FLPGMS

does not support 200 floppy disks, so CASSETTE ADAPTER 3 cannot be used with FLPGMS.

Similarly, this function cannot be used on the IBM PC/AT, because it does not support “P-G <->

MS-DOS format conversion.”

1-149
