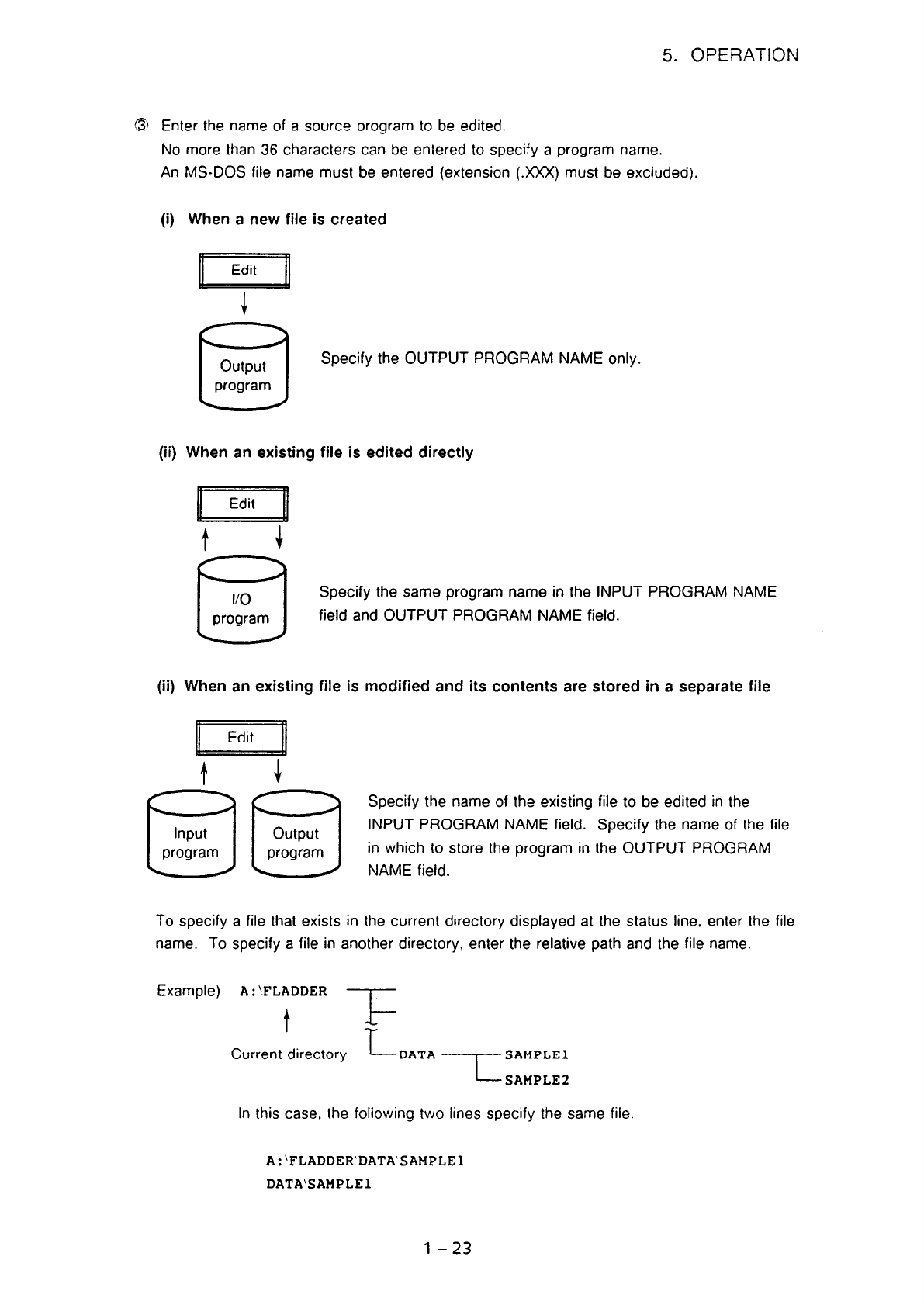

5. OPERATION

6! Enter the name of a source program to be edited.

No more than 36 characters can be entered to specify a program name.

An MS-DOS file name must be entered (extension (.xXx) must be excluded).

(i) When a new file is created

output

Specify the OUTPUT PROGRAM NAME only.

program

(ii) When an existing file is edited directly

I/O

Specify the same program name in the INPUT PROGRAM NAME

program

field and OUTPUT PROGRAM NAME field.

(ii) When an existing file is modified and its contents are stored in a separate file

I=7

input

nrnnram

Specify the name of the existing file to be edited in the

INPUT PROGRAM NAME field. Specify the name of the file

, y’vy’““’ ,

in which to store the program in the OUTPUT PROGRAM

< 2 L-2 NAME field.

To specify a file that exists in the current directory displayed at the status line, enter the file

name. To specify a file in another directory, enter the relative path and the file name.

Example) A : iFLADDER ‘7

-IT

Current directory

DATA ‘- SAMPLE1

i-- SAMPLE2

In this case, the following two lines specify the same file.

A:‘FLADDER’DATA’SAMPLEl

DATA’sAMPLE

l-23
