FAPT Ladder for PC Operators manual Page 183

Operators manual

Page of 311

/ 311

1. COMMON OPERATIONS

FOR THE PC9801 AND IBM PG’AT

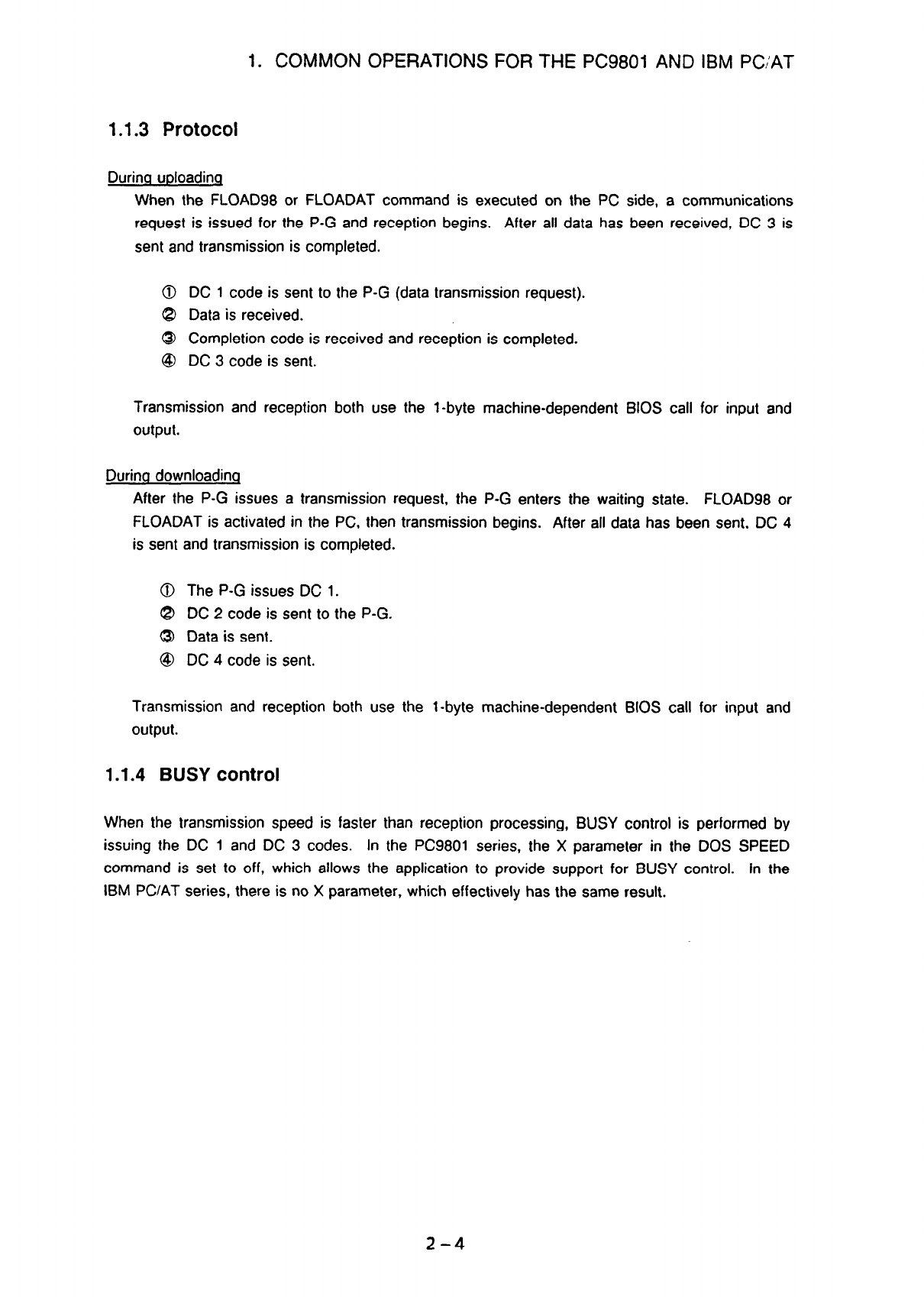

1 .1.3 Protocol

Durinq uploadinq

When the FLOAD98 or FLOADAT command is executed on the PC side, a communications

request is issued for the P-G and reception begins.

After all data has been received, DC 3 is

sent and transmission is completed.

0 DC 1 code is sent to the P-G (data transmission request).

8 Data is received.

Q Completion code is received and reception is completed.

@ DC 3 code is sent.

Transmission and reception both use the l-byte machine-dependent

output.

Durina downloadinq

BIOS call for input and

After the P-G issues a transmission request, the P-G enters the waiting state. FLOAD98 or

FLOADAT is activated in the PC, then transmission begins. After all data has been sent. DC 4

is sent and transmission is completed.

0 The P-G issues DC 1.

8 DC 2 code is sent to the P-G.

@ Data is sent.

@ DC 4 code is sent.

Transmission and reception both use the l-byte machine-dependent

output.

1.1.4 BUSY control

BIOS call for input and

When the transmission speed is faster than reception processing, BUSY control is performed by

issuing the DC 1 and DC 3 codes. In the PC9801 series, the X parameter in the DOS SPEED

command is set to off, which allows the application to provide support for BUSY control. In the

IBM PC/AT series, there is no X parameter, which effectively has the same result.

2-4
