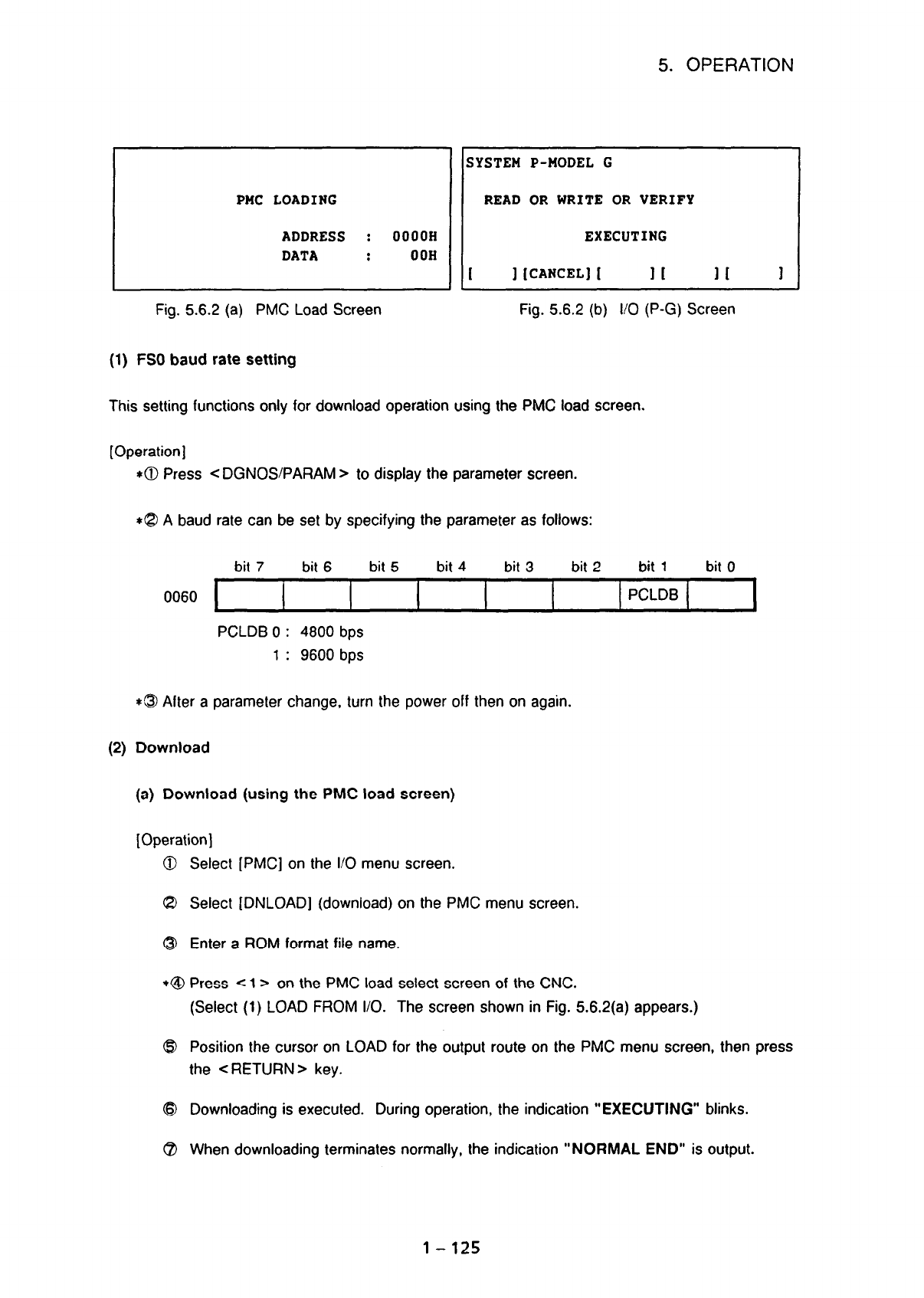

5. OPERATION

SYSTEM P-MODEL G

PHC LOADING

READ OR WRITE OR VERIFY

ADDRESS :

OOOOH

EXECUTING

DATA

OOH

1 [CANCEL] [ 11 II 1

Fig. 5.6.2 (a) PMC Load Screen

Fig. 5.6.2 (b) l/O (P-G) Screen

(1) FSO baud rate setting

This setting functions only for download operation using the PMC load screen.

[Operation]

*O Press < DGNOSPARAM > to display the parameter screen.

*Q A baud rate can be set by specifying the parameter as follows:

bit 7

bit 6 bit 5

bit 4 bit 3

bit 2

bit 1

bit 0

0060

PCLDB

PCLDB 0 : 4800 bps

1 : 9600 bps

*a After a parameter change, turn the power off then on again.

(2) Download

(a) Download (using the PMC load screen)

[Operation]

0 Select [PMC] on the l/O menu screen.

8 Select (DNLOAD] (download) on the PMC menu screen.

@ Enter a ROM format file name.

*@ Press c 1> on the PMC load select screen of the CNC.

(Select (1) LOAD FROM I/O. The screen shown in Fig. 5.6.2(a) appears.)

Position the cursor on LOAD for the output route on the PMC menu screen, then press

the <RETURN> key.

Downloading is executed. During operation, the indication “EXECUTING” blinks.

When downloading terminates normally, the indication “NORMAL END” is output.

1-125
