3. THE STEP SEQUENCE FUNCTIONS

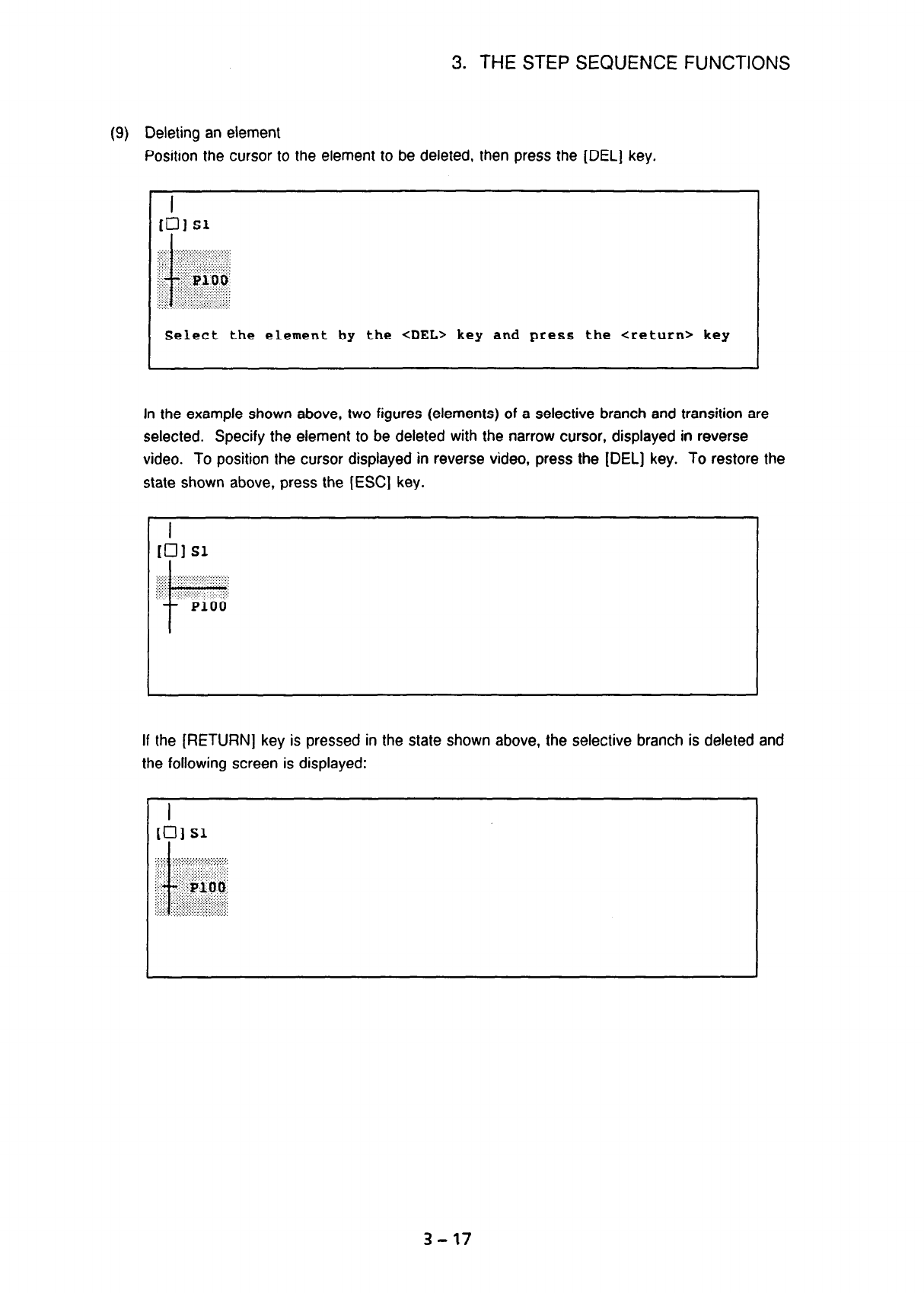

(9) Deleting an element

Position the cursor to the element to be deleted, then press the [DEL] key.

Select the element by the <DEL> key and press the <return> key

In the example shown above, two figures (elements) of a selective branch and transition are

selected. Specify the element to be deleted with the narrow cursor, displayed in reverse

video. To position the cursor displayed in reverse video, press the [DEL] key. To restore the

state shown above, press the (ESC] key.

If the [RETURN] key is pressed in the state shown above, the selective branch is deleted and

the following screen is displayed:

3-17
