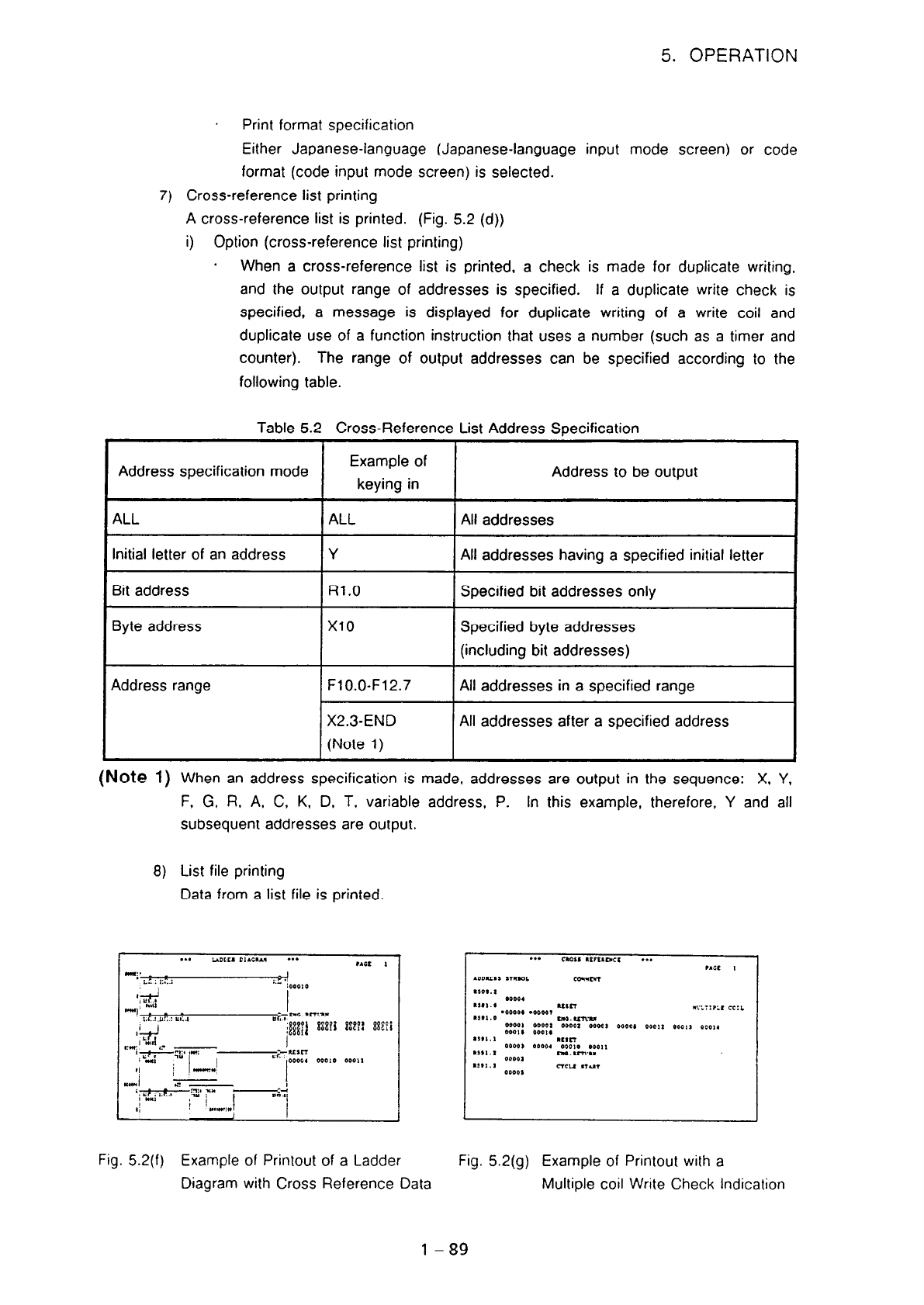

5. OPERATION

. Print format specification

Either Japanese-language (Japanese-language input mode screen) or code

format (code input mode screen) is selected.

7) Cross-reference list printing

A cross-reference list is printed. (Fig. 5.2 (d))

i) Option (cross-reference list printing)

* When a cross-reference list is printed, a check is made for duplicate writing,

and the output range of addresses is specified. If a duplicate write check is

specified, a message is displayed for duplicate writing of a write coil and

duplicate use of a function instruction that uses a number (such as a timer and

counter). The range of output addresses can be specified according to the

following table.

Table 5.2 Cross-Reference List Address Specification

Address specification mode

Example of

keying in

Address to be output

ALL

Initial letter of an address

Bit address

R1.O

Byte address

x10

All addresses

All addresses having a specified initial letter

Specified bit addresses only

Specified byte addresses

(including bit addresses)

Address range

F10.0.F12.7

All addresses in a specified range

X2.3.END

(Note 1)

All addresses after a specified address

(Note 1) When an address specification is made, addresses are output in the sequence: X. Y,

F, G, R, A, C, K, D. T, variable address, P. In this example, therefore, Y and all

subsequent addresses are output.

8) List file printing

Data from a list file is printed.

Fig. 5.2(f)

Example of Printout of a Ladder Fig. 52(g) Example of Printout with a

Diagram with Cross Reference Data

Multiple coil Write Check Indication

l-89
