5. OPERATION

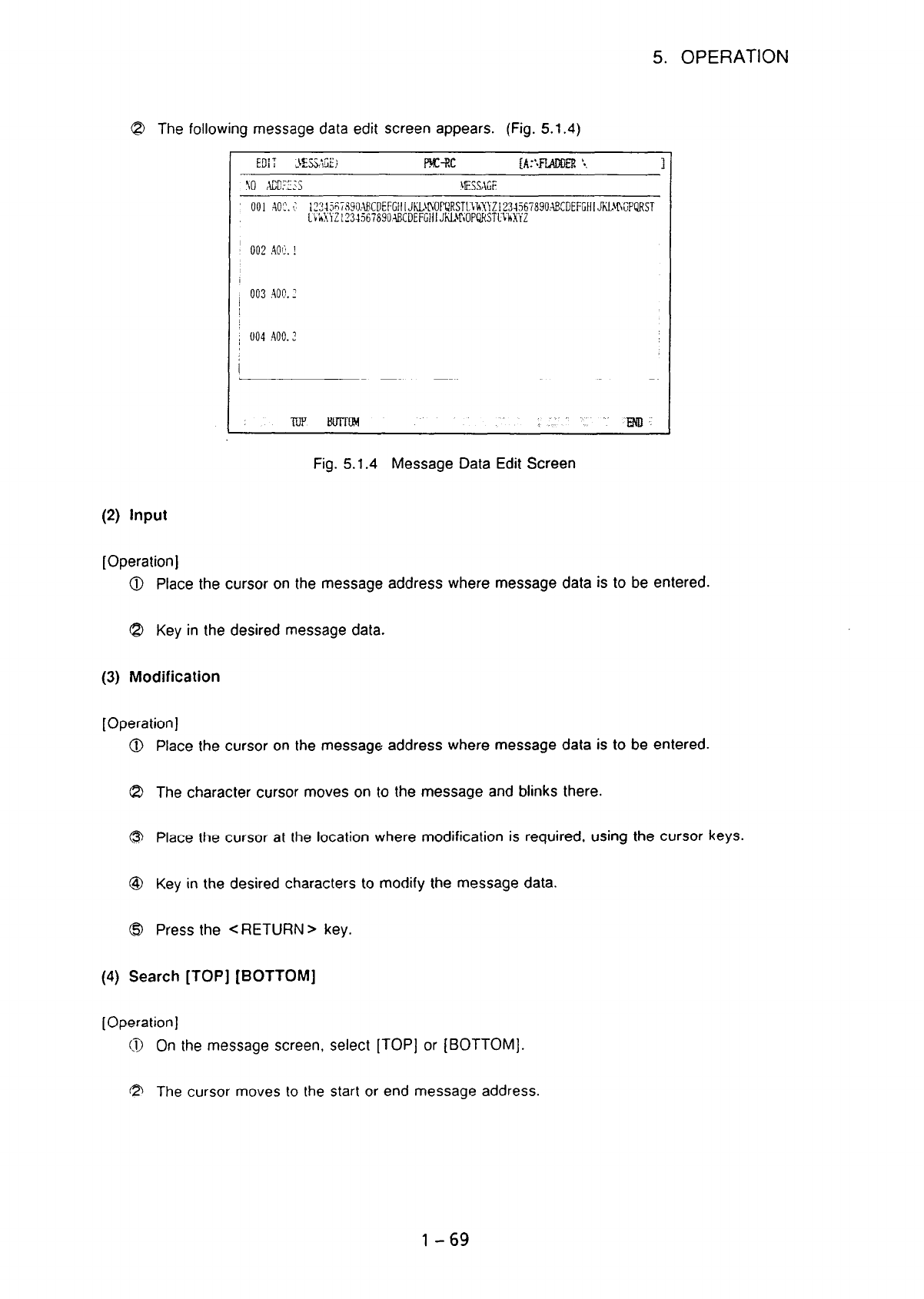

@ The following message data edit screen appears. (Fig. 51.4)

1 002 ,401:. !

! 003 .AOO.2

; 004 ,400. ,’

Fig. 51.4 Message Data Edit Screen

(2) input

[Operation]

0 Place the cursor on the message address where message data is to be entered.

C~J Key in the desired message data.

(3) Modification

[Operation]

@ Place the cursor on the message address where message data is to be entered.

Q The character cursor moves on to the message and blinks there.

a Place the cursor at the location where modification is required. using the cursor keys.

@ Key in the desired characters to modify the message data.

@ Press the <RETURN> key.

(4) Search [TOP] [BOTTOM]

[Operation]

0 On the message screen, select [TOP] or [BOTTOM].

QJ The cursor moves to the start or end message address.

1-69
