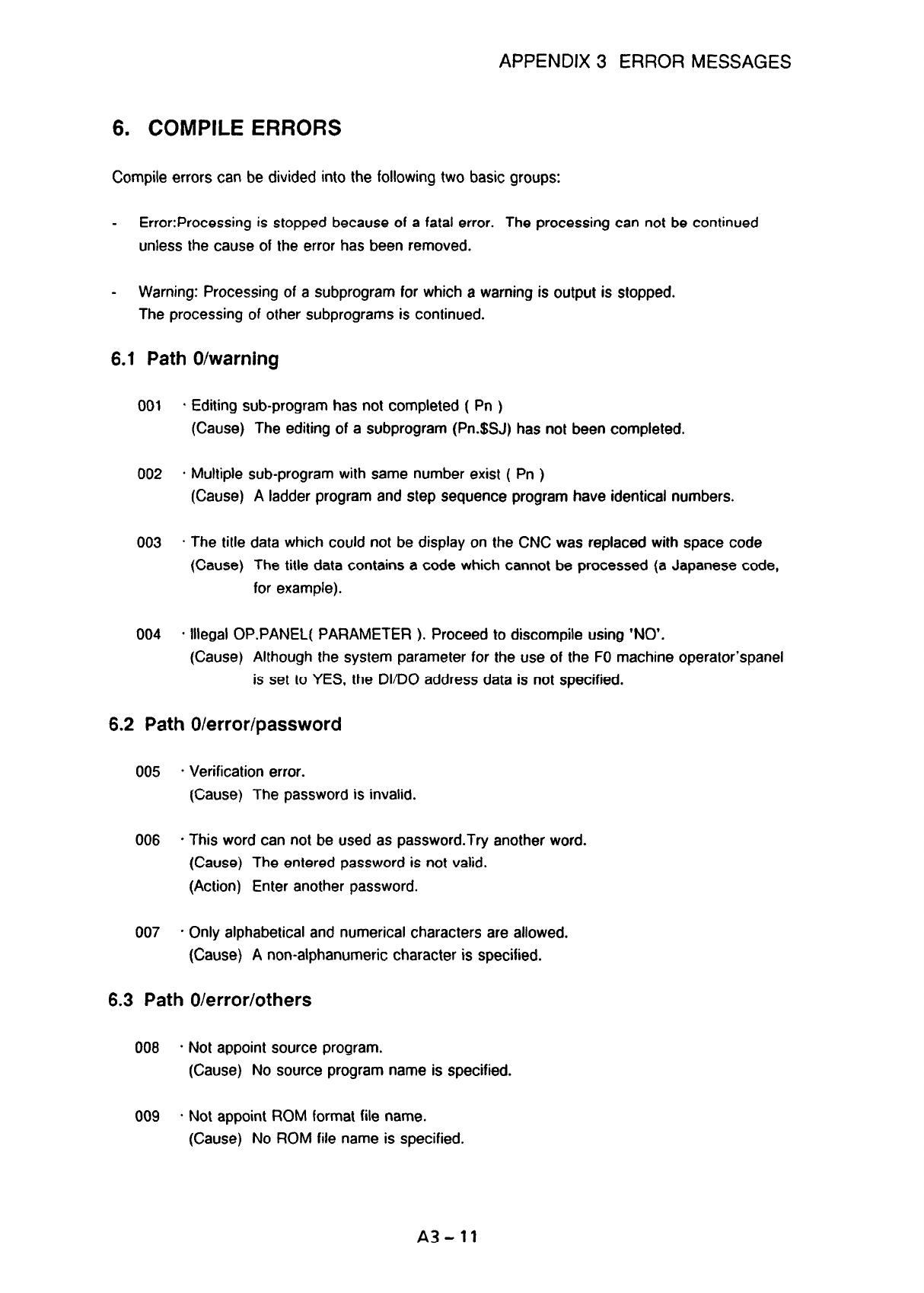

APPENDIX 3 ERROR MESSAGES

COMPILE ERRORS

Compile errors can be divided into the following two basic groups:

- Error:Processing is stopped because of a fatal error. The processing can not be continued

unless the cause of the error has been removed.

- Warning: Processing of a subprogram for which a warning is output is stopped.

The processing of other subprograms is continued.

6.1 Path O/warning

001

- Editing sub-program has not completed ( Pn )

(Cause) The editing of a subprogram (Pn.$SJ) has not been completed.

002

- Multiple sub-program with same number exist ( Pn )

003 .

The title data which could not be display on the CNC was replaced with space code

(Cause) The title data contains a code which cannot be processed (a Japanese code,

for example).

004 *

Illegal OP.PANEL( PARAMETER ). Proceed to discompile using ‘NO’.

(Cause) Although the system parameter for the use of the FO machine operator’spanel

is set to YES, the DI/DO address data is not specified.

6.2 Path O/error/password

005 *

Verification error.

(Cause) The password is invalid.

(Cause) A ladder program and step sequence program have identical numbers.

006 * This word can not be used as password.Try another word.

(Cause) The entered password is not valid.

(Action) Enter another password.

007 * Only alphabetical and numerical characters are allowed.

(Cause) A non-alphanumeric character is specified.

6.3 Path O/error/others

008 - Not appoint source program.

(Cause) No source program name is specified.

009

* Not appoint ROM format file name.

(Cause) No ROM file name is specified.

A3-11
